188.5.2 Key layout of the digital voice terminals

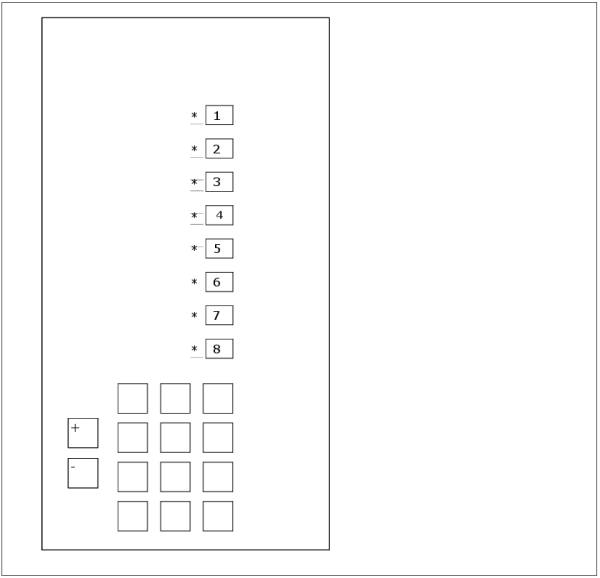

Figure 42

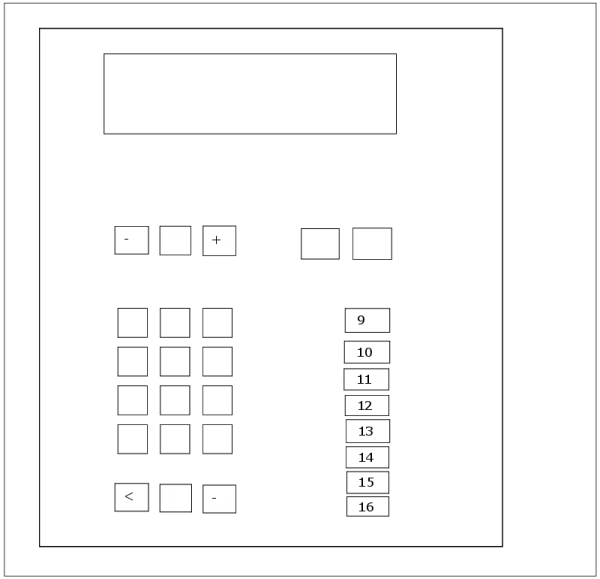

optipoint 500 T8

Figure 43
optipoint 400/500 T12

Figure 44

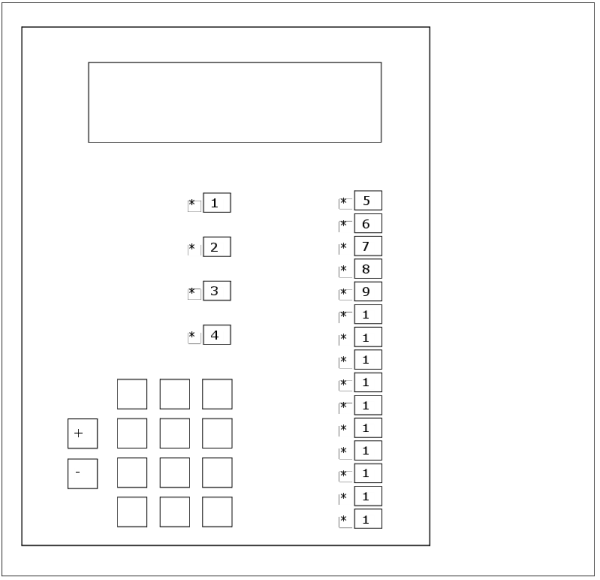

optipoint 500/600 T19

Figure 45
add-on terminal for optipoint 500/600 with 16 keys

Figure 46

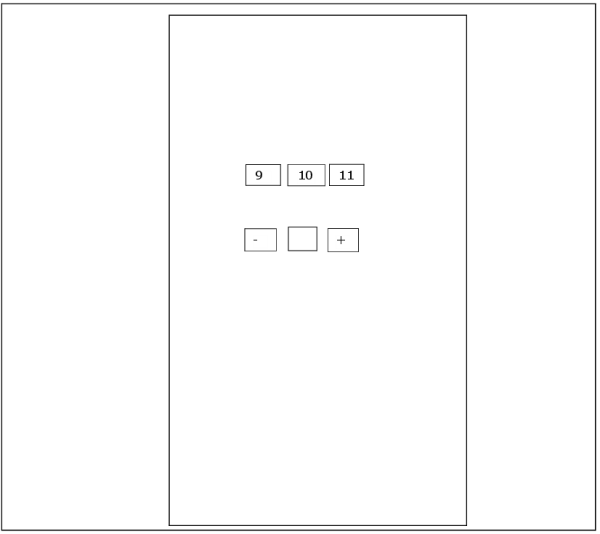

openstage 10

Figure 47

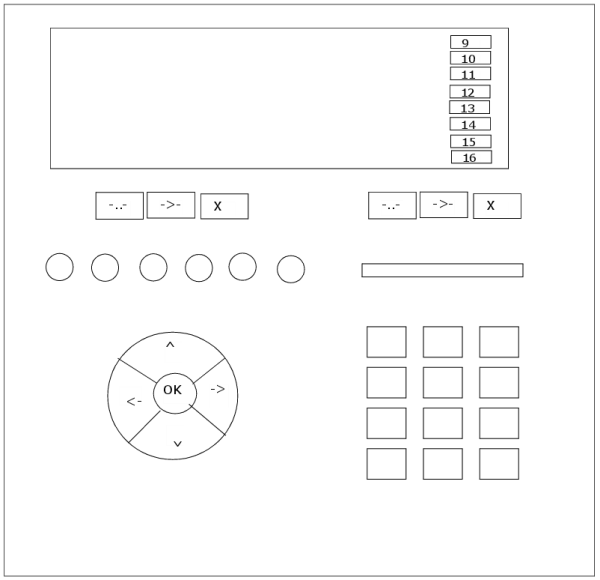

openstage 15

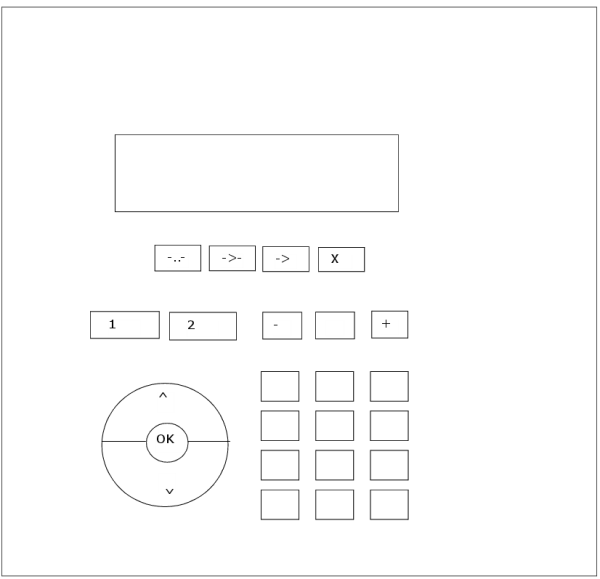

Figure 48

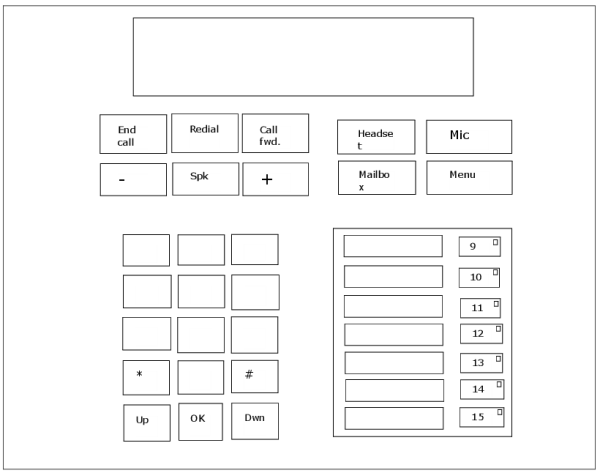

openstage 20
Figure 49
openstage 30
NOTE:  The OpenStage Key Module 15 can be attached to the side of the OpenStage 30 phone to provide 18 additional illuminated, programmable keys.
Figure 50

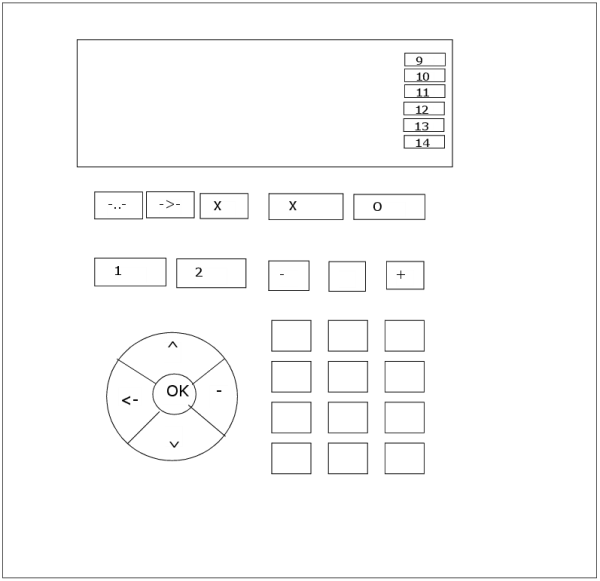

openstage 40

Figure 51
openstage 60

Figure 52
openstage 80

Figure 53
add-on terminal for openstage 40/60/80 with 12 keys

Figure 54
add-on terminal for openstage 15/40 with 18 keys

Figure 55

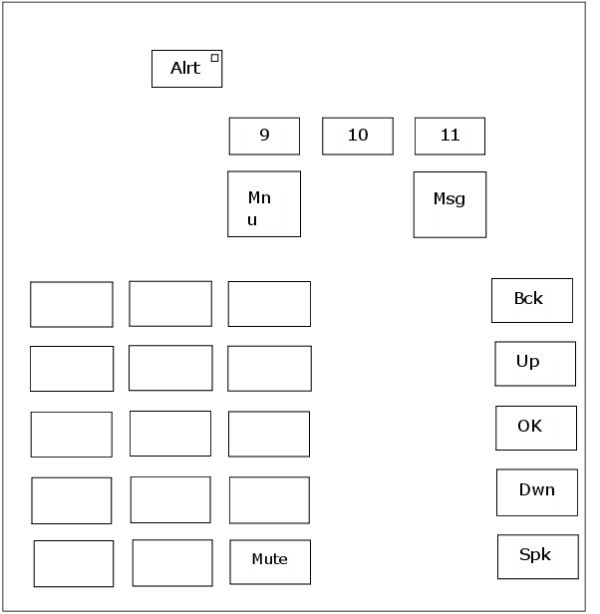

CP100

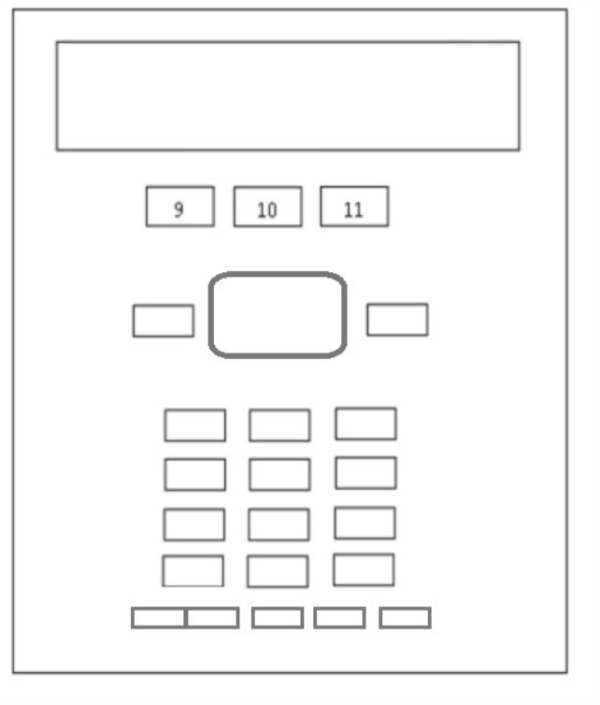

Figure 56

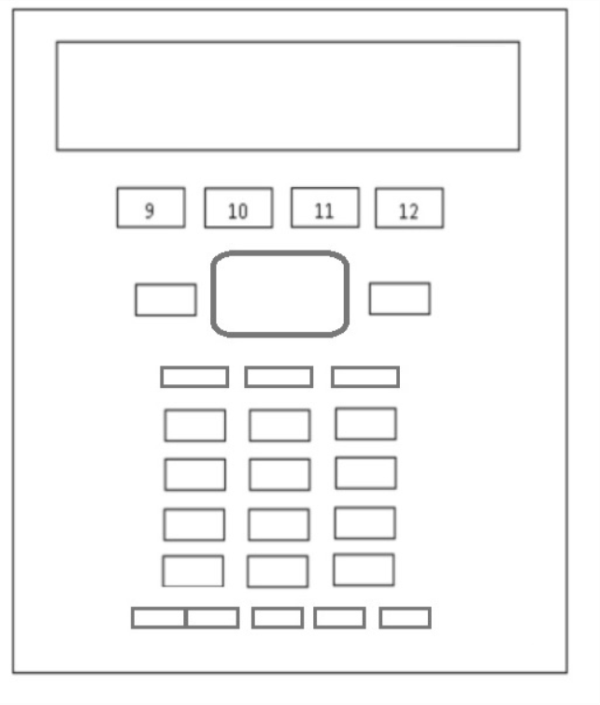

CP110

Figure 57
CP200

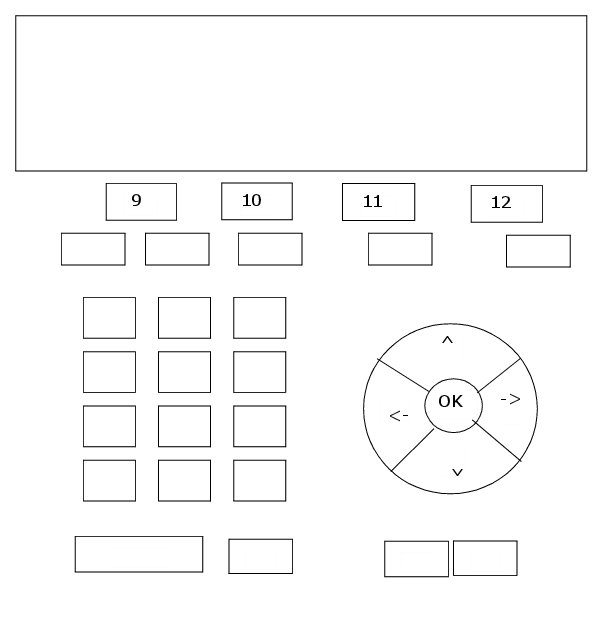

Figure 58
CP210
Figure 59
CP400
Figure 60
CP410
Figure 61
CP600

NOTE:  The logical key values for CP400/CP410/CP600/CP700 and CP710 phones keymodules are below. Even if the AMO is prepared for 4 additional keymodules, only CP600 phone supports 4 add-ons.
CP400 phone supports 2 add-ons.
CP410 and CP710 phones support 4 key modules (KM410 or KM710).
+--------+-----------+-------+-------+-------+-------+
| |MAIN DEVICE| DSS1 | DSS2 | DSS3 | DSS4 |
+--------+-----------+-------+-------+-------+-------+
|Layer 1:| 1 - 32 | 33-48 | 49-64 | 65-80 | 81-96 |
+--------+-----------+-------+-------+-------+-------+
|Layer 2:| 180-211 |97-112 |113-128|129-144|145-160|
+--------+-----------+-------+-------+-------+-------+

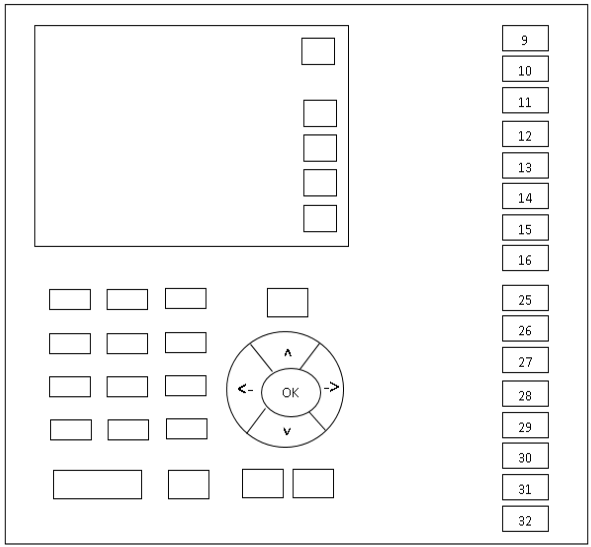

Figure 62
CP700

Fixed function keys for CP700:

Table 16
Fixed function keys for CP700
Icon
Explanation

Voicemail key

Hold key

Transfer key

Conference key

Redial key

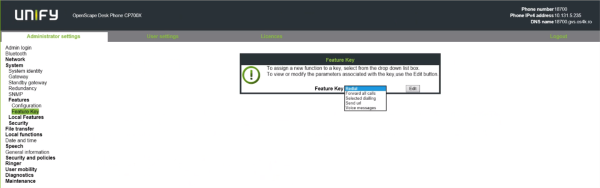

The redial key, presented in the right lower corner, is a programmable key which can be configured by the user/administrator from the WBM of the phone. There are 5 predefined values for this key:
Figure 63
Values for the Redial Key

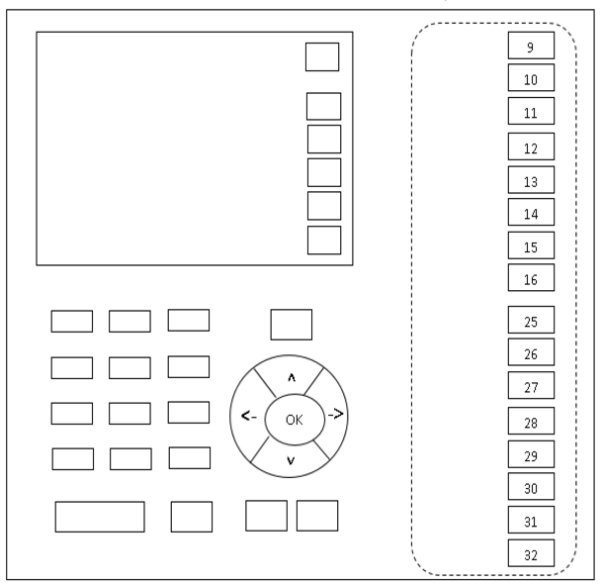

Figure 64
CP710
