199.3.4 Examples for ISDN-terminal connections

Examples for ISDN-terminal connections:

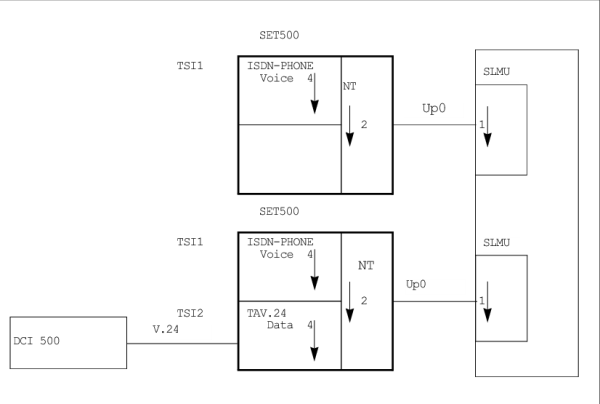

Figure 79

Cornet-T terminals connected to Up0 (SET500)

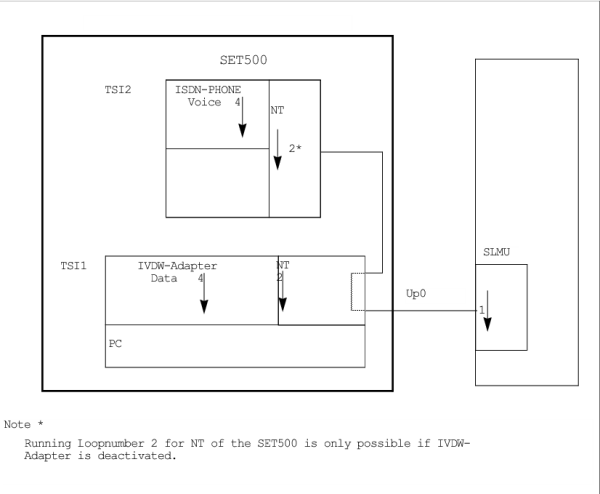

Figure 80

Cornet-t terminals connected to Up0

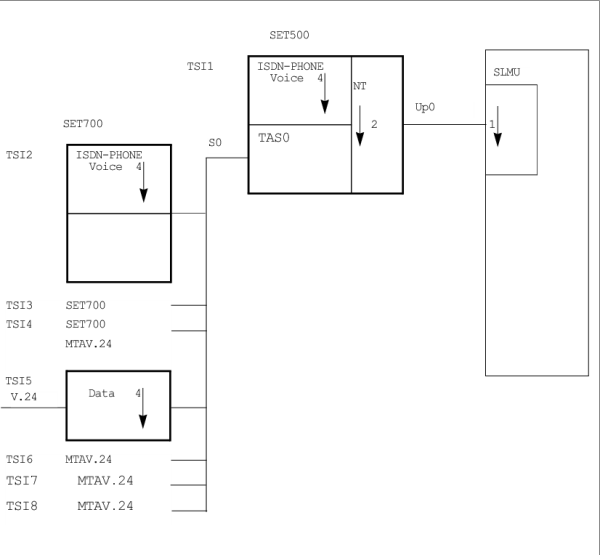

Figure 81

Cornet-T terminals connected to Up0 and S0-bus (by SET500)

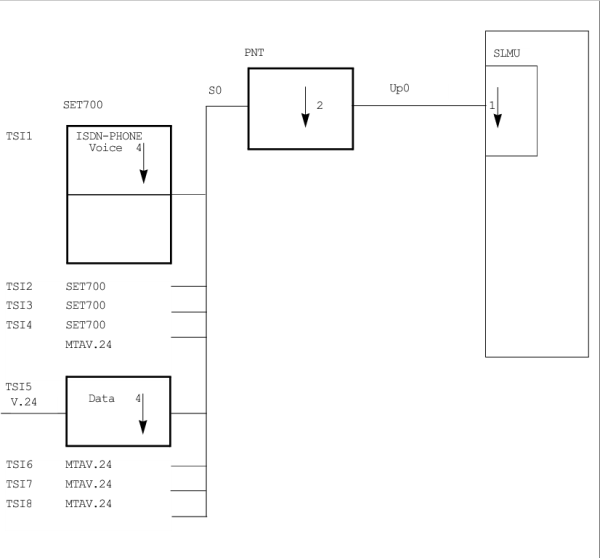

Figure 82

Cornet-T terminals connected to Up0 and S0-bus (by PNT)

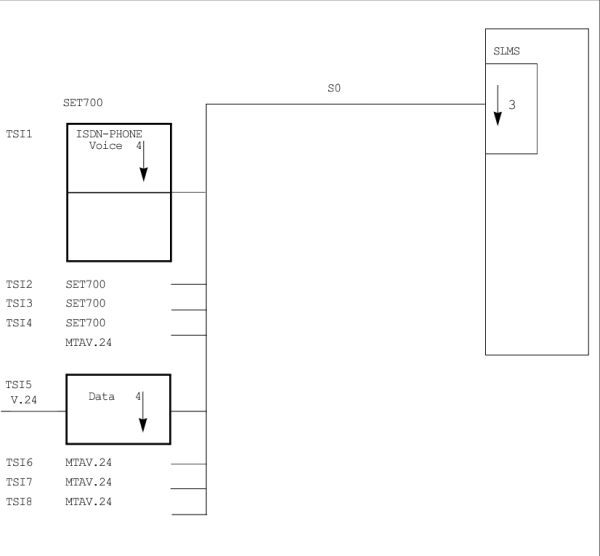

Figure 83

Cornet-T terminals connected to S0-bus (SLMS board)

Figure 84

Cornet-T terminals connected to S0-bus (STMD board)


	Test loop number
Module type	Default	additional allowed
SLMR/SLMR24	SLMR-VOICE	SLMR-DATA
ATI OPS DiD DiD8 DiR COT TTI	SMIDIG	SMIANA
TMD24	ILOC	IDC, IDL, EDC
TMDN/SLMN-T1	ILOC	ILOC, IDC, IDL, EDC, PON, POFF
T1	ILOC	ILOC, IDC, IDL, EDC, SMIANA, SMIDIG
RLI	RLITDM
STMA_TFA/ STMA_PSW	1
SLMO/SLMO-REMOTE		1

Table 42

List of possible test loops for circuit test


	Test loop number
Module type	Default	additional allowed
SLMSI DIUC/DIUC64/STMA DIUS2/DIUS7/SLMN-E1	4
SLMU SLMU16 SLMQ/SLMQ-EXT	4	2 (PNT)
SLMO/SLMO-REMOTE	4	2

Table 43

List of possible test loops for device test

Note

Test loop number will be ignored on testing other modules. The loop number is defined by the internal testroutines.
