3.3.3.3.4. Subscriber Gateway Previous topic Parent topic Child topic Next topic

Overview

ISDN -> Basic Rate Interface (BRI 1)
The subscriber gateway is linked to the trunking gateway (alternatively also to the public network) via the BRI 1 port without layer-3 signaling and synchronizes itself with the indirect clock pulse.

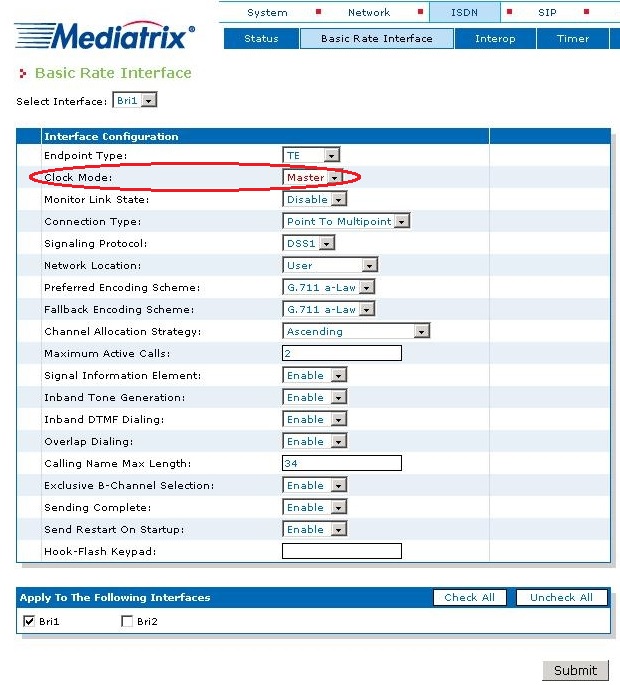

Figure 70. Mediatrix 44xx Gateway Subscriber - -> Basis Rate Interface 1

ISDN -> Status
A status window indicates that clocking is performed via the BRI1 port which is clocked either directly or indirectly via the public network.

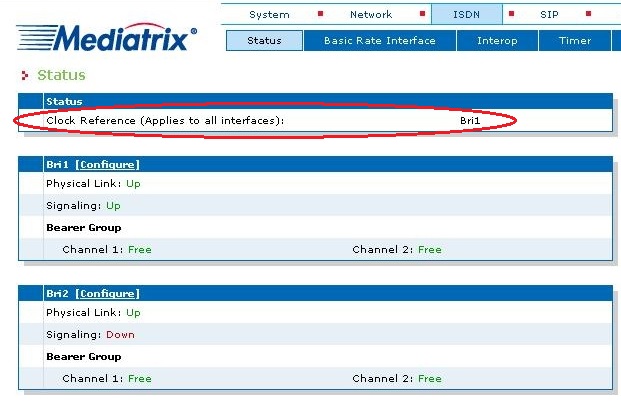

Figure 71. Mediatrix 44xx Gateway Subscriber - ISDN -> Status
