3.5.3. Generation (Example)
vSLMA board configuration
The vSLMA board (Q2339-X) can be configured into one or more OpenScape
4000 SoftGate slots with standard AMO BCSU command.
LTG 1 LTU 23 SRCGRP 2 ALARMNO-LTU 0 SOFTGATE50 10 PORTS USED
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
| | | |S|H|AL-| | | |
| ASSIGNED | MODULE |FCT|E|W|ARM| | INSERTED | HW- | MODULE
PEN | MODULE | TYPE |ID |C|Y|NO | | MODULE |STATE INFO | STATUS
-----+-----------+--------+---+-+-+---+-+------------+------------+------------
1 | Q2339-X vSLMA A 0| | Q2339-X | 1 -10 - | READY
2 | AVAILABLE 0| | AVAILABLE | |
3 | Q2330-X vHG3500 1 A 0| | Q2330-X | 1 -07 - | READY
+--------------------------------+-+------------+------------+------------
| IP ADDRESS : 172. 20. 12.133 B-CHANNELS : 120 BCHLCNT : 120
| IP MODE : IPV4 DHCP V4 : NO DHCP V6 : NO
| BLOCK NO : 40 PRERESERVED LINES ASSIGNED : NO
| 1. FUNCT : HG3530 240 LINES B-CHANNELS : 120 BCHLCNT : 120
+--------------------------------+-+------------+------------+------------
4 | Q2333-X SLMO24 1 A 0| | Q2333-X | 1 -11 - | READY
+--------------------------------+-+------------+------------+------------
| MAC ADRESS : 00-01-E3-8B-C1-EA
+--------------------------------+-+------------+------------+------------
5 | Q2331-X SLMAE A 0| | Q2331-X | 1 -07 - | READY
+--------------------------------+-+------------+------------+------------
| MAC ADRESS : 00-01-E3-96-E2-C7
+--------------------------------+-+------------+------------+------------
6 | Q2329-X SoftGate 1 0| | Q2329-X | 1 -09 - | READY
+--------------------------------+-+------------+------------+------------
| IP ADDRESS : 172. 20. 12.136 B-CHANNELS : 250 BCHLCNT : 250
| IP MODE : IPV4 DHCP V4 : NO DHCP V6 : NO
+--------------------------------+-+------------+------------+------------
7 | Q2339-X vSLMA A 0| | Q2339-X | 1 -10 - | READY
8 | Q2340-X vTMOM A 0| | Q2340-X | 1 -10 - | READY
9 | Q2340-X vTMOM A 0| | Q2340-X | 1 -10 - | READY
10 | Q2341-X vSIUX 3 0| | Q2341-X | 1 -02 - | READY
Circuit and feature configuration
The circuits and the whole features can be configured with AMO SSC
or AMO RCSU or AMO TSCSU in the same way as for real SLMA/TMOM board
(see feature documentation links in Section 7.1,
“Feature Description”).
Audio file configuration
The audio files can be configured per circuit by OpenScape 4000 SoftGate
WBM Configuration > Announcements:

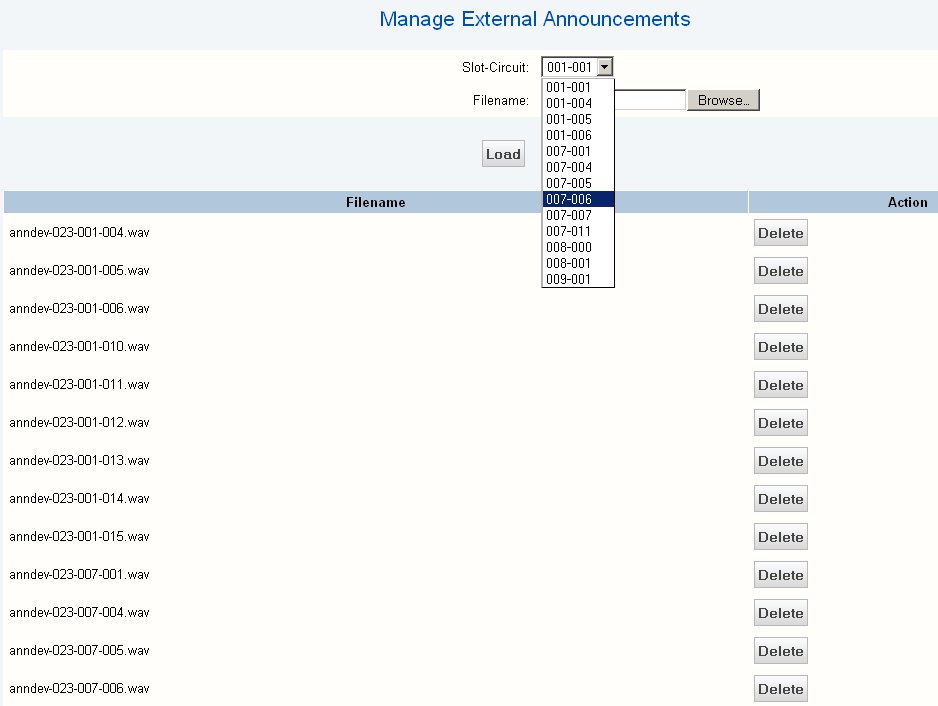

Figure 100. Audio file configuration with OpenScape 4000 SoftGate WBM
If the .wav file is loaded or changed for already active SLMA circuit,
the circuit has to be restarted using RES-DSSU to activate the new .wav
file (also virtual board or whole OpenScape 4000 SoftGate can be restarted).
