OpenScape 4000 routing configuration

• Trunk configuration
• AMO TDCSU - DEV=HG3550IP
  Besides AMO BFDAT, AMO BCSU, AMO BUEND, AMOTDCSU (ECMAV2 protocol) AMO COT and AMO COP is of interest:

  ADD-COT:COTNO=80,PAR=ANS&CEBC&BSHT&BLOC&LWNC&NLCR&TSCS&DFNN&NLRD&NOFT&NTON;
  ADD-COP:COPNO=80,TRK=TA,TOLL=TA;


  Routing and numbering plan specific issues see below (AMO TDCSU, AMO COT, AMO COP).
• Common gateway board configuration
• AMO CGWB (in the following example with IPADR=192.168.125.44) is used to configure, the used trunk protocol (native SIP), DNS/SRV server (used by profile) and the codec list (example has VAD=NO)
  The gateway is configured as local gateway with AMO GKREG. RFCFMOIP is set to NO.

  ADD-CGWB:LTU=77,SLOT=10,SMODE=NORMAL,IPADR=192.168.125.44,NETMASK=255.255.255.0;
  CHANGE-
  CGWB:MTYPE=CGW,LTU=77,SLOT=10,TYPE=GLOBIF,PATTERN=213,VLAN=NO,VLANID=0,DEFRT=192
  .168.125.234,BITRATE="AUTONEG",TRPRSIP=4,TRPRSIPQ=0,TRPRH323=0,TPRH323A=0,TL­
  SP=4061,DNSIPADR=0.0.0.0;
  CHANGE-CGWB:MTYPE=CGW,LTU=77,SLOT=10,TYPE=SERVIF,LOGINTRM="TRM";
  CHANGE-
  CGWB:MTYPE=CGW,LTU=77,SLOT=10,TYPE=ASC,UDPPRTLO=29100,TOSPL="184",TOSSIGNL="104"
  ,T38FAX=YES,RFCFMOIP=NO,RFCDTMF=YES,REDRFCTN=YES,PRIO=PRIO1,CO­
  DEC=G711A,VAD=YES,RTP="20";
  CHANGE-CGWB:MTYPE=CGW,LTU=77,SLOT=10,TYPE=ASC,PRIO=PRIO2,CO­
  DEC=G729A,VAD=NO,RTP="20";
  CHANGE-CGWB:MTYPE=CGW,LTU=77,SLOT=10,TYPE=ASC,PRIO=PRIO3,CO­
  DEC=G711U,VAD=NO,RTP="20";
  CHANGE-CGWB:MTYPE=CGW,LTU=77,SLOT=10,TYPE=DMCDATA,DMCCONN=0;
  ADD-GKREG:GWNO=11,GWATTR=INTGW&HG3550V2&SIP,DIPLNUM=0,DPLN=0,LAUTH=1,INFO="Di­
  rect SIP to OCS";
  ADD-LDAT:LROUTE=300,LSVC=ALL,LVAL=1,TGRP=1,ODR=300,LAUTH=1;


• Routing and numbering plan configuration
• For outgoing calls block dialing has to be configured for native SIP trunk, dialing pattern has to end with e.g. '-Z'.
  ADD-LDPLN:LCRCONF=LCRPATT,DIPLNUM=0,LDP="0"-"Z",LROUTE=1,LAUTH=1;
  LCR configuration rules depend on the numbering plan, that is used between OpenScape 4000 and Mediation Server.
  The recommended numbering plan is NPI= ISDN, TON= INTERNATIONAL (explicit format).

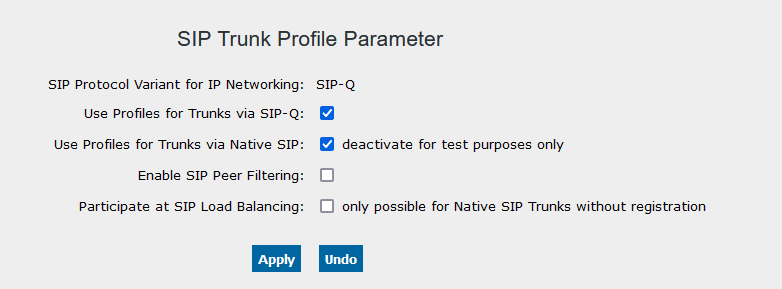

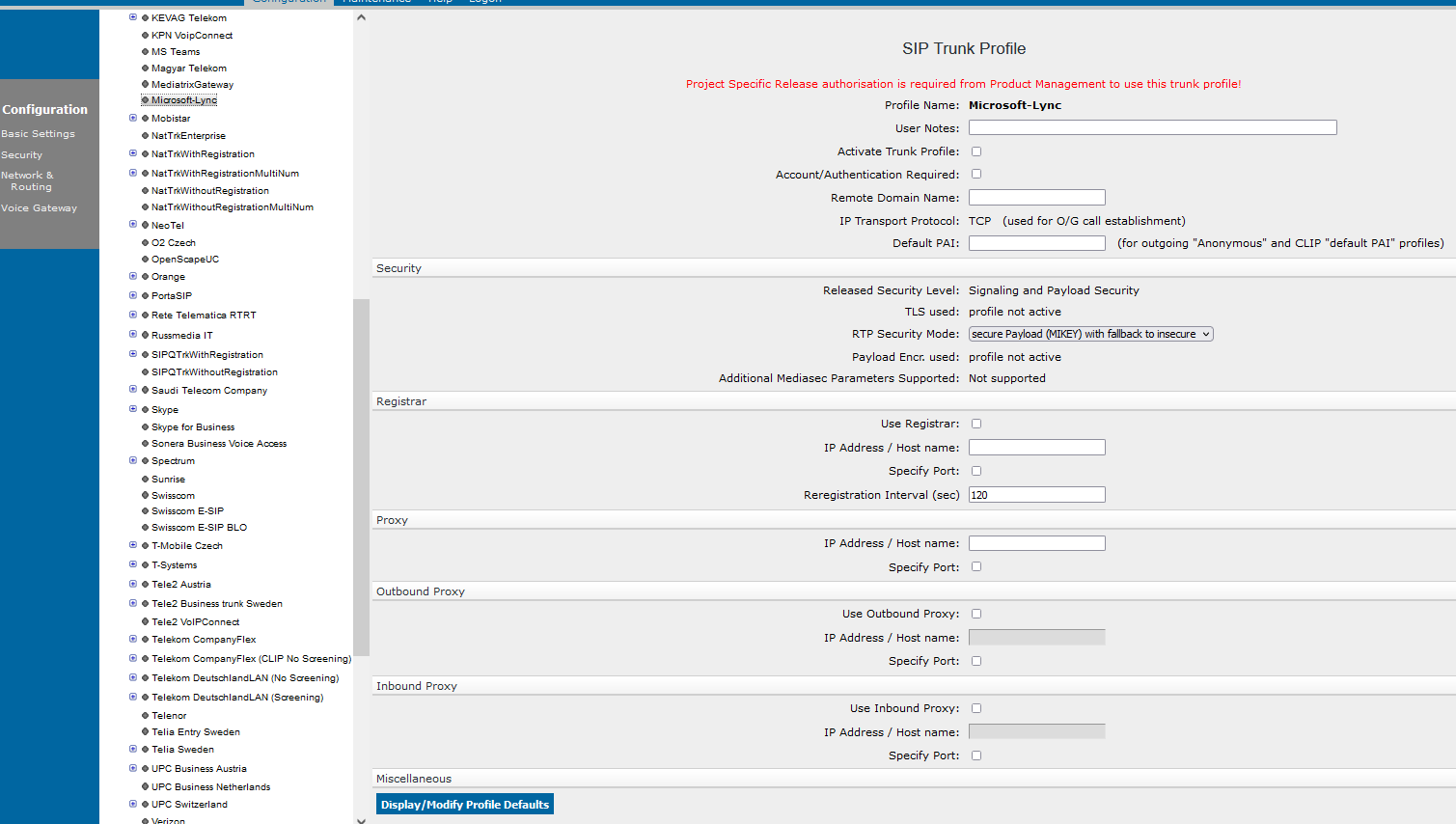

vHG 3500 configuration
