4.3.2.2. Generation (Example) Previous topic Parent topic Child topic Next topic

Redundant LAN interfaces (bonding) can be configured in the OpenScape 4000 SoftGate WBM in the WAN and LAN Interfaces menus in order to improve the failsafe reliability.
  • Redundant LAN for WAN
  • Configuration > WAN > WAN Settings > parameter WAN Redundancy

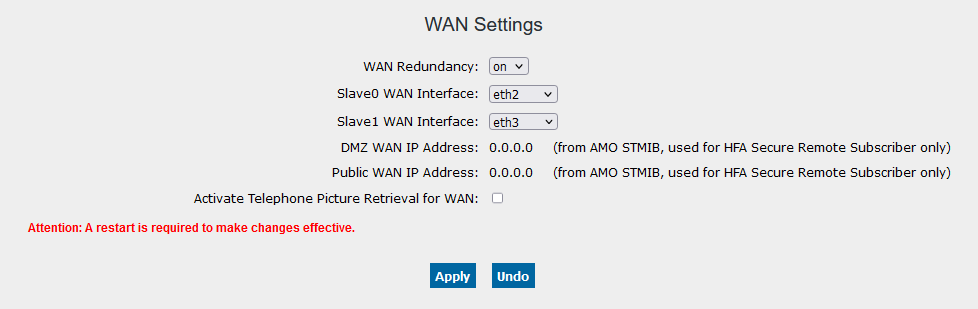

    Figure 146. OpenScape 4000 SoftGate - Redundant WAN

  • Redundant LAN for Management Interface
  • Configuration > LAN Interfaces > Management Interface > parameter Management LAN Redundancy

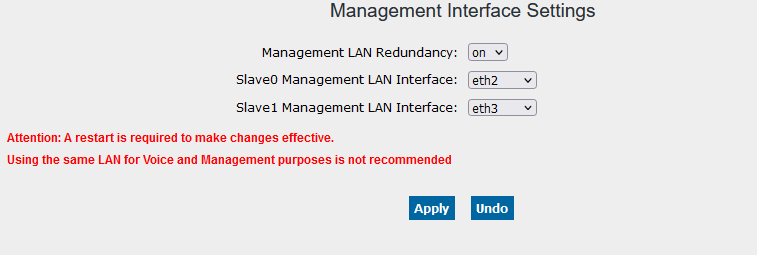

    Figure 147. OpenScape 4000 SoftGate - Redundant Management LAN

  • Redundant LAN for Signaling Survivability Interface
  • Configuration > LAN Interfaces > Signaling Survivability Interface > Parameter LAN Redundancy

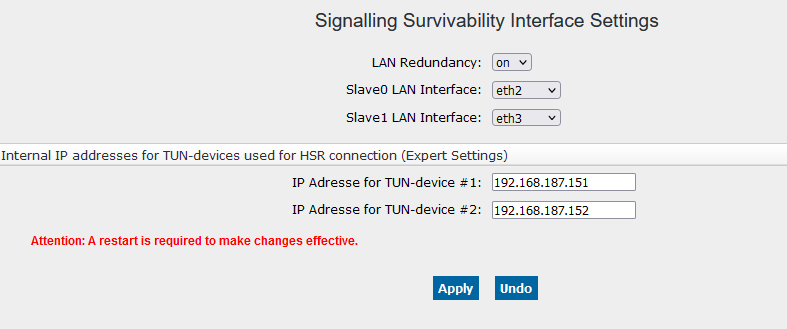

    Figure 148. OpenScape 4000 SoftGate - Redundant Signaling Survivability LAN

  • Redundant LAN for HFA Interface
  • Configuration > LAN Interfaces > HFA Interface > parameter HFA LAN Redundancy

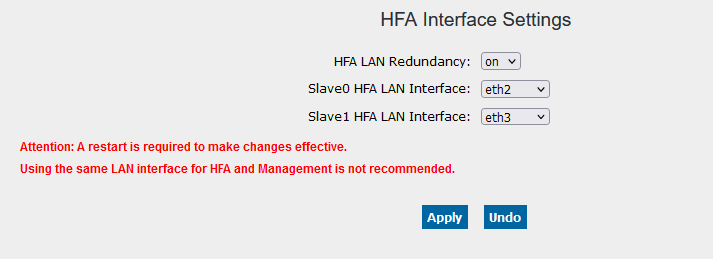

    Figure 149. OpenScape 4000 SoftGate - Redundant LAN at HFA interface

  • Redundant LAN for SIP Interface
  • Configuration > LAN Interfaces > SIP Interface > parameter SIP LAN Redundancy

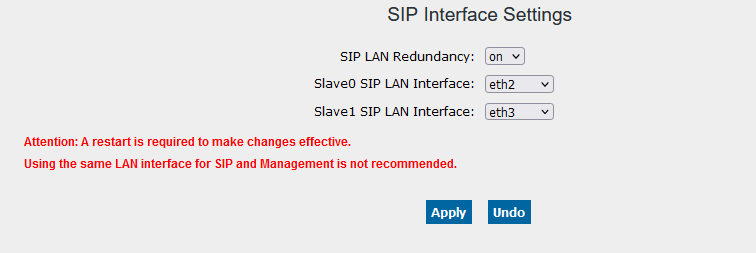

    Figure 150. OpenScape 4000 SoftGate - Redundant LAN at SIP Interface

    The IP addresses that have been configured with AMO CGWB for the relevant boards are configured at the relevant bonding network interfaces (e.g. bondhfa0) when the OpenScape 4000 SoftGate is restarted.
