21.8.4. OpenStage WL3/WL4 Configuration
Device configuration
OpenStage WL3/WL4 must be configured as UFIP SIP devices:
ADD-SBCSU:STNO=44511,OPT=OPTI,CONN=IP2,PEN=1-99-5-6,DVCFIG=UFIP, TSI=1,COS1=310,COS2=310,LCOSV1=1,LCOSV2=1,LCOSD1=1,LCOSD2=1,DPLN=0,ITR=0, SSTNO=N,COSX=0,SPDI=0,IDCR=N,STD=0,INS=Y,ALARMNO=0,RCBKB=N,RCBKNA=N, CBKBMAX=5,HEADSET=N,HSKEY=NORMAL,CBKNAMB=Y,TEXTSEL=ENGLISH,HMUSIC=0,COMGRP=0;
CHANGE-SDAT:STNO=44510,TYPE=ATTRIBUT,AATTR=MBCHL;
INFO:
WL3/WL4 Central Speed Dialing for OpenScape4000 is supported.
To be able to use the Callback on Busy feature with WL3/WL4 please check
if WABE has an existing CBKKY DAR configured. If not you can add it with:
ADD-WABE:CD=103,DAR=CBKKY,CHECK=N;
This WABE feature access code must be configured for WL3/WL4 stations via known methods
(see

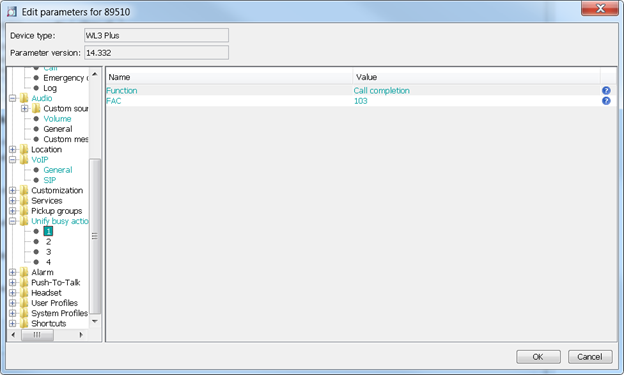

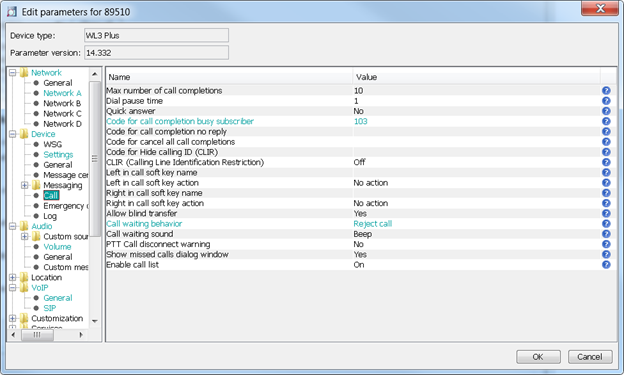

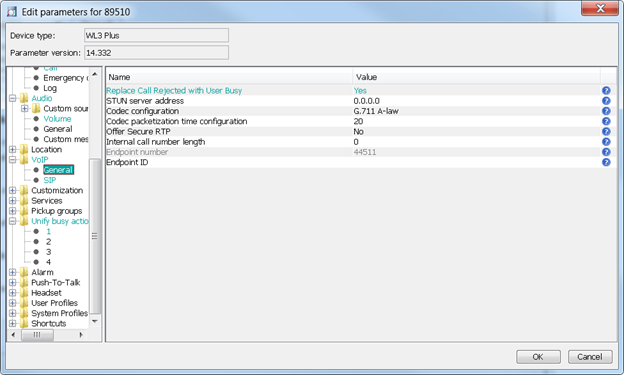

WL3/WL4 documentation). Find below WL3 screenshots as example:
