14.7.9.10. Configuration of Default Route if Number did not Match in “HOME DN” Previous topic Parent topic Child topic Next topic

In Figure 64 above the dialed number 49897007-xxxxx was sent for a check if there exists an entry in the OpenScape Voice system. If there is no match, dialed numbers are checked against this entry.
As default, you should configure the partner OpenScape 4000 system. But in this example we used as default a different OpenScape Voice system.

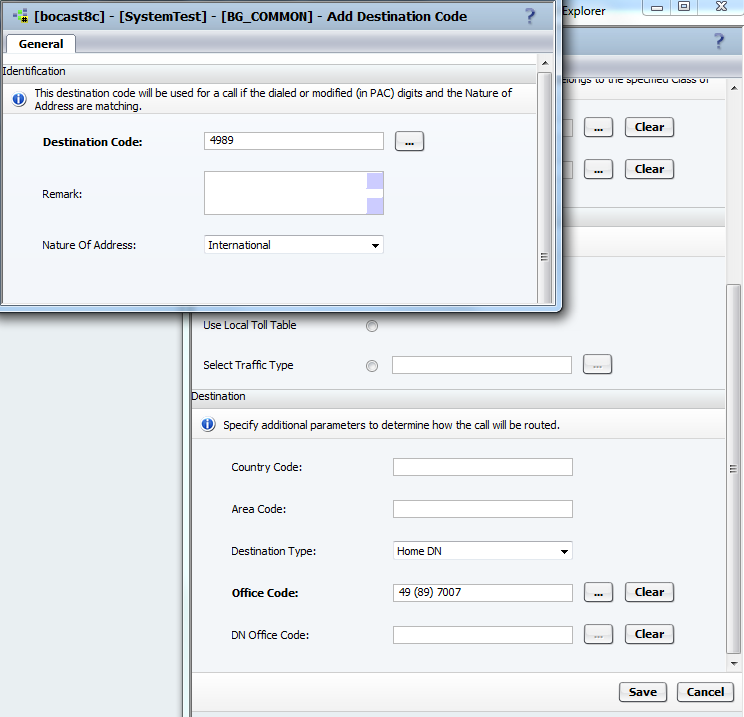

Figure 307. OpenScape Voice: Configuration of default route
