18.1.3.2. Signaling encryption

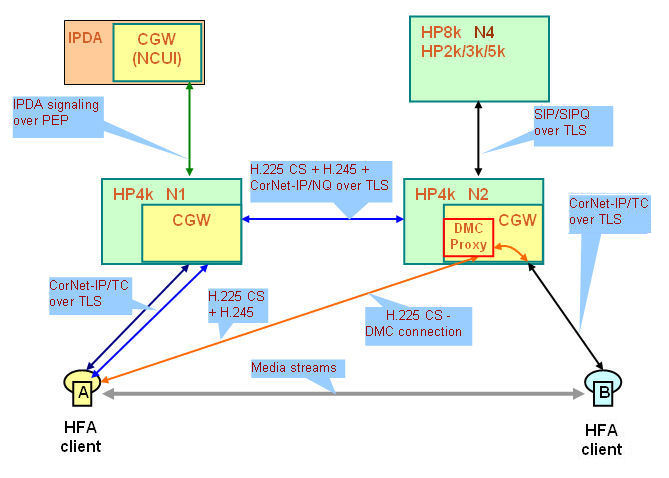

Figure 371. Signaling encryption
The PEP (Proprietary Encryption Protocol) is based on the Master Encryption
Key (MEK). PEP is used to protect signaling for connections between a
host system and access points (IPDA and OpenScape 4000 SoftGate).
For all other signaling connections, the TLS (Transport Layer Security)
protocol is used (e.g. HFA/ SIP phones, IP trunking (H.323/SIP)).
In the case of VoIP signaling paths in a HiPath 4000/OpenScape 4000
network or to partner systems (such as OpenScape Voice), every connection
is individually and independently encrypted. TLS/SSL encryptions (SIP/H.323/HFA)
and AES encryption based on pre-shared secrets (IPDA/DMC) is used for
this. End-to-end encryption is based on an unbroken encrypted chain of
partial signaling links.
- SIP/ HFA/ H.323 connections
-
Signaling is secured by TLS connection.
- DMC connections
-
Signaling (H.225 is secured with H.235.1(authentication and integrity) for the DMC connections. The "shared-secret" (key) needed is generated by the OpenScape 4000 for every call and distributed to the DMC endpoints. This means that DMC connections are not encrypted, they are only authenticated.
