18.1.7.1. SIP-Q Trunking Previous topic Parent topic Child topic Next topic

If all requirements for SPE are fulfilled in an OpenScape 4000 system (see Chapter 3, “Configuration”), the gateway will try to set up a secure SIP-Q connection to the partner gateway.
If no SIP-Q profile is activated (see "SIP-Connectivity > Section 3.3, “SIP Trunk Profiles”"), then the payload is encrypted with MIKEY.
If a SIP-Q profile is activated, then payload encryption can be configured on the vHG3500.
WBM > Configuration > Voice Gateway > SIP Trunk Profiles > Select suitable SIP-Q trunk profile > Edit

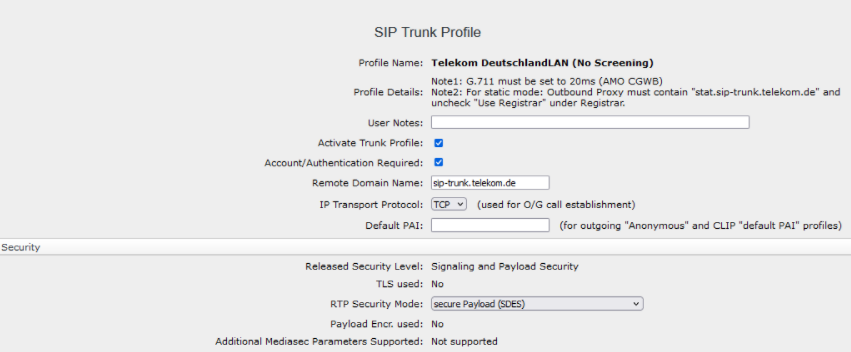

Figure 376. RTP security mode on the vHG3500 for a SIP-Q trunk
