The following scenarios are being considered:

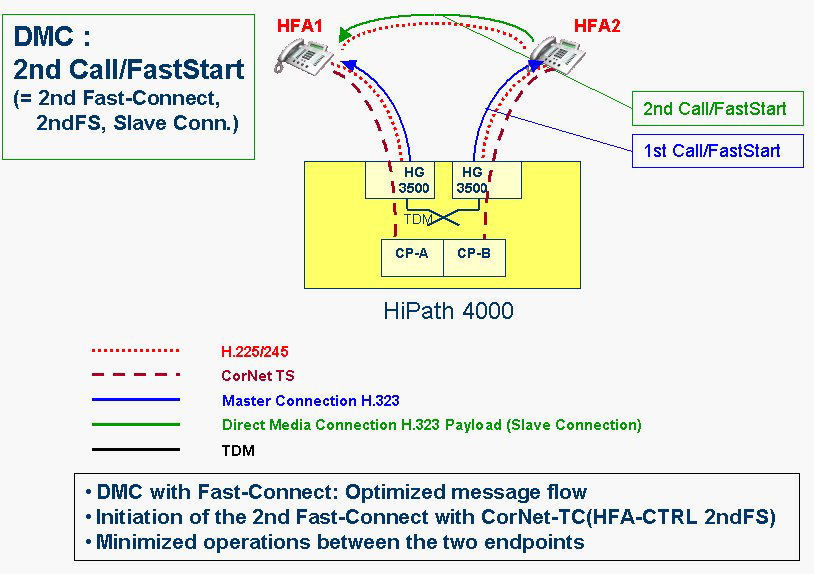

Scenario A: Direct Media Connection DMC within a single OpenScape 4000 node.

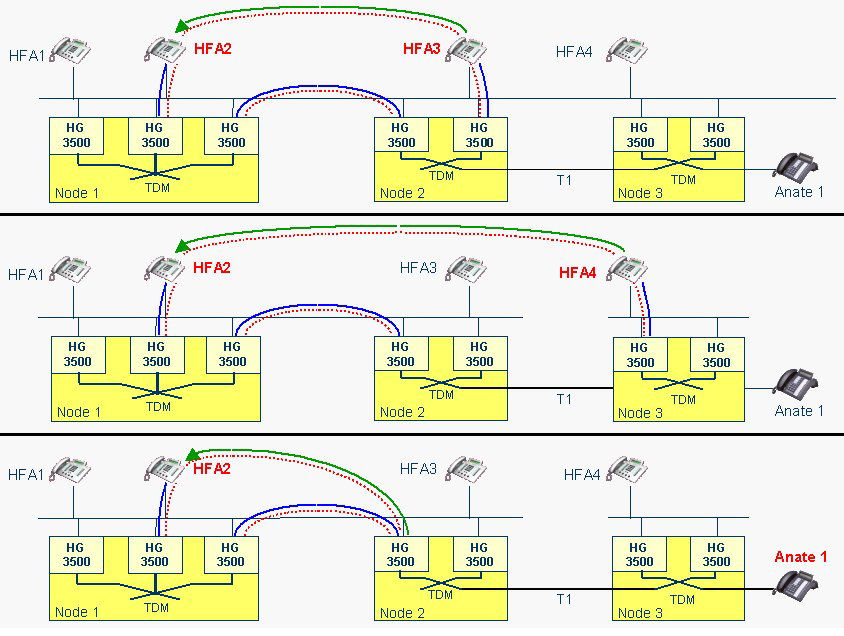

Scenario B: Direct Media Connection DMC between HFA IP phones within a HiPath 4000/OpenScape 4000 network.
This scenario B is supported in OpenScape 4000 in conjunction with the IP Gateway HG 3500 V4.

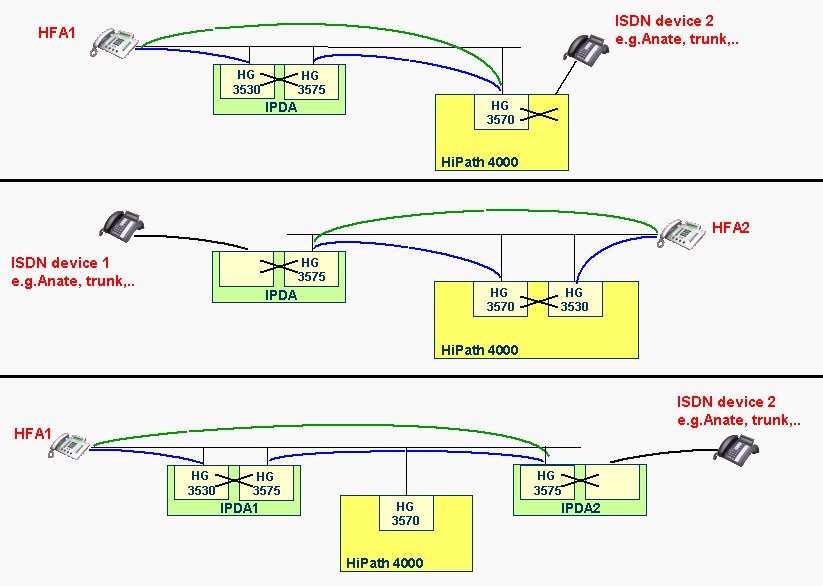

Scenario C: Direct Media Connections DMC between HFA IP phone and IPDA shelf within a single OpenScape 4000 node.

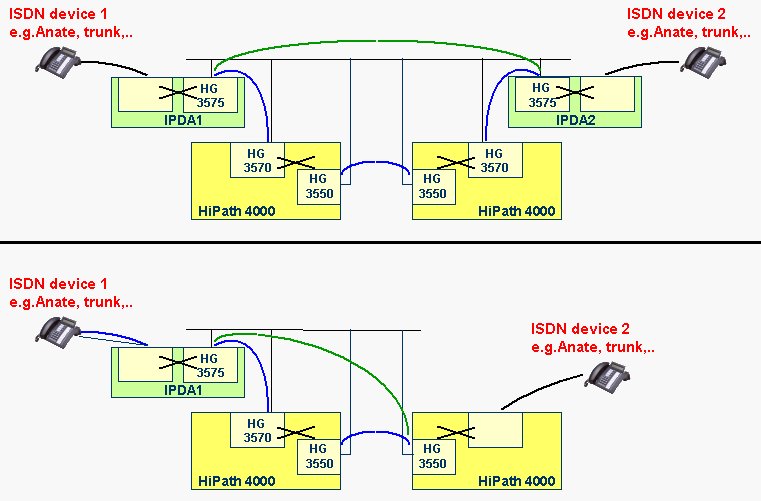

Figure 426. Scenario D: Direct Media Connections DMC between netwide IPDA-shelves.


DMC in mixed scenarios

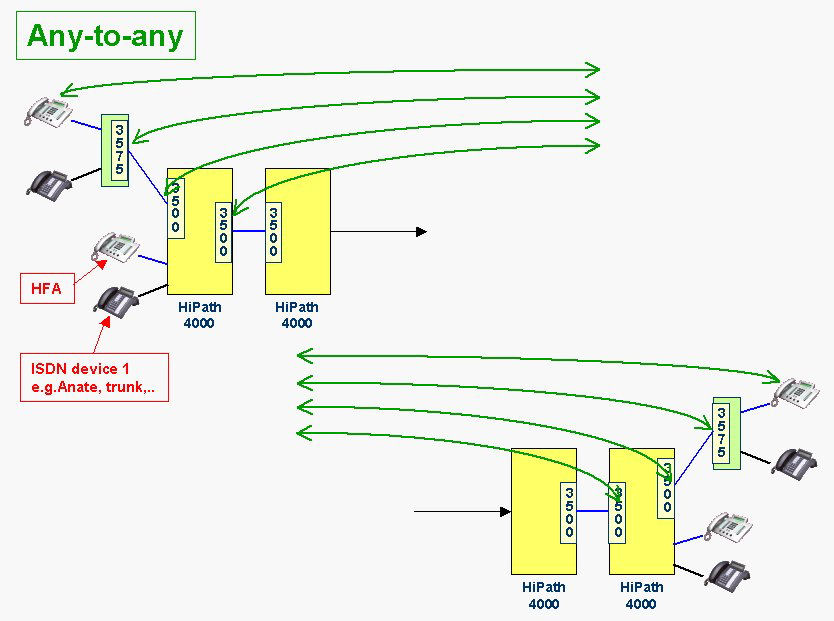

In mixed scenarios the DMC is executed in the 2 party call state between the first possible IP address at the A-side (IP phone or HG 3575 or HG 3500 (FUNCTION=HG3570) or HG 3500 (FUNCTION=HG3550)) and the last possible IP address at the B-side (i.e. again HG 3500 (FUNCTION=HG3550) or HG 3500 (FUNCTION=HG3570) or HG 3575 or IP phone).
