19.3.3.6. HFA Subscriber at another OpenScape 4000 Previous topic Parent topic Child topic Next topic

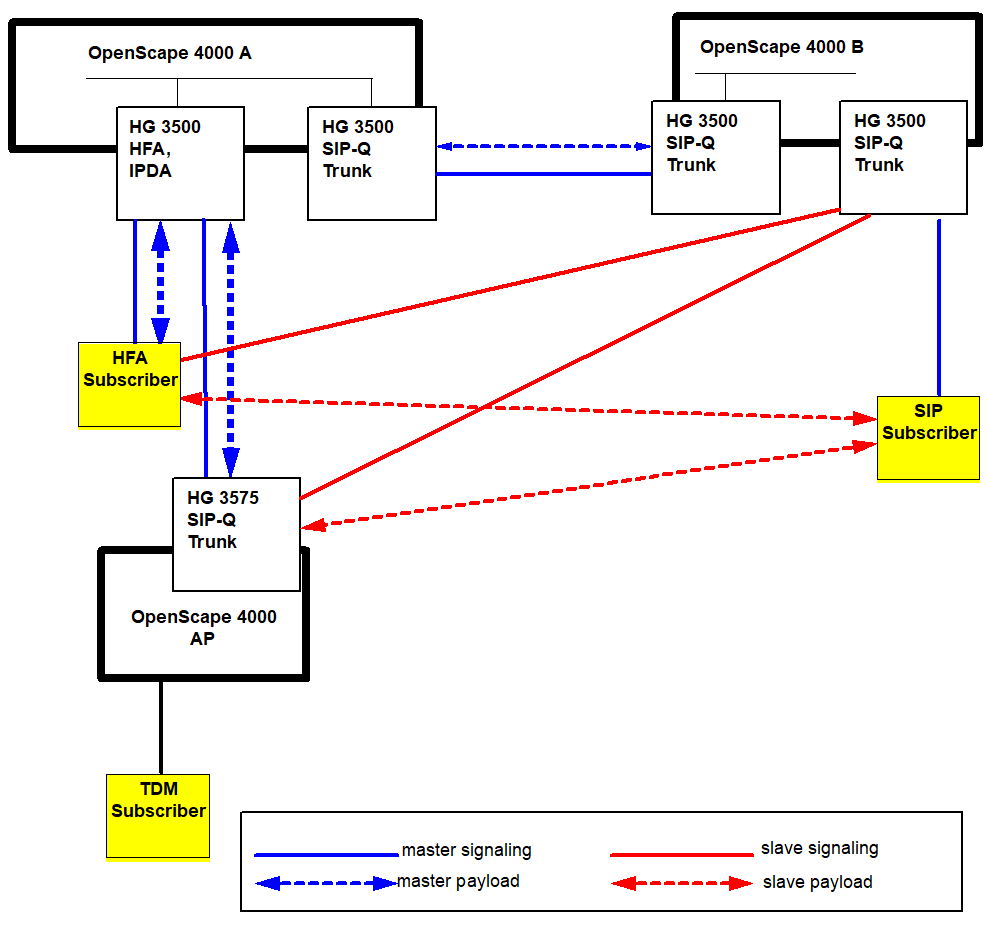

Example 1: End-to-end payload between HFA and SIP subscriber (also HG 3575 and SIP subscriber)
No specific action is necessary with the HG 3500 trunking boards. OpenScape 4000 B initiates a DMC between the SIP subscriber and HFA subscriber, resulting in an end-to-end payload connection.

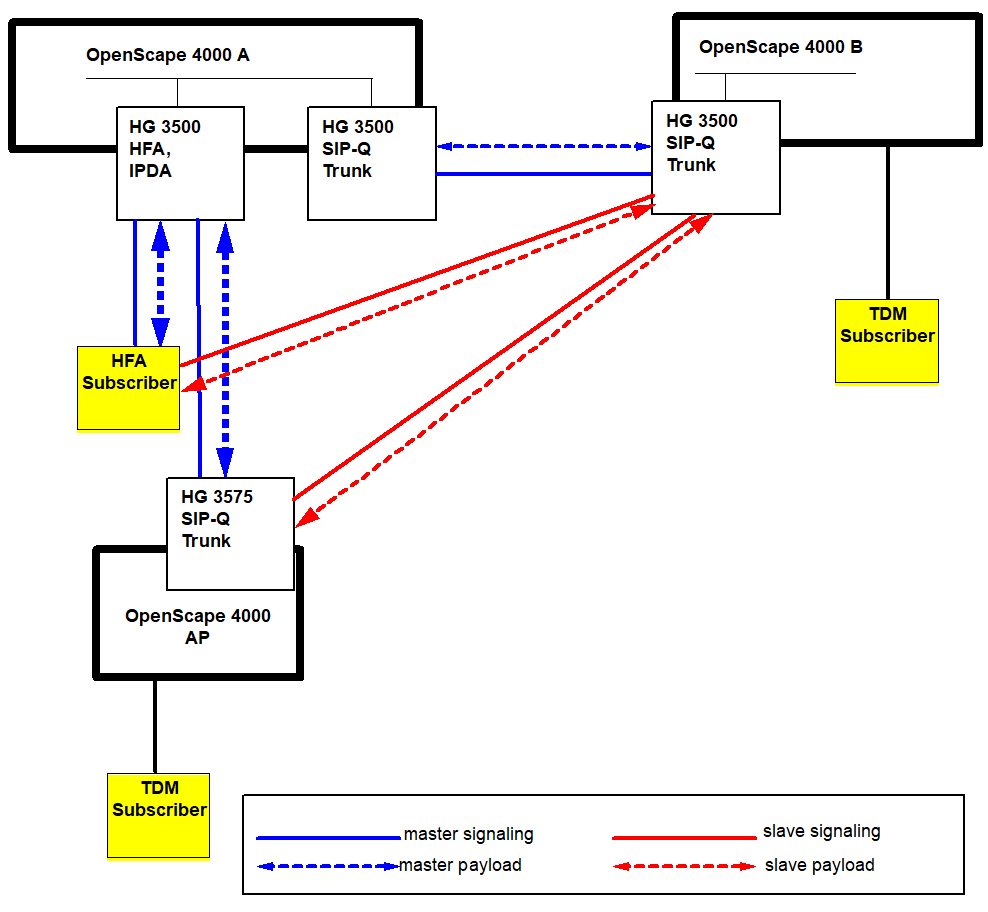

Example 2: End-to-end payload between HFA and SIP trunk (also HG 3575 and SIP trunk)
