14.11.1. Network Topology Previous topic Parent topic Child topic Next topic

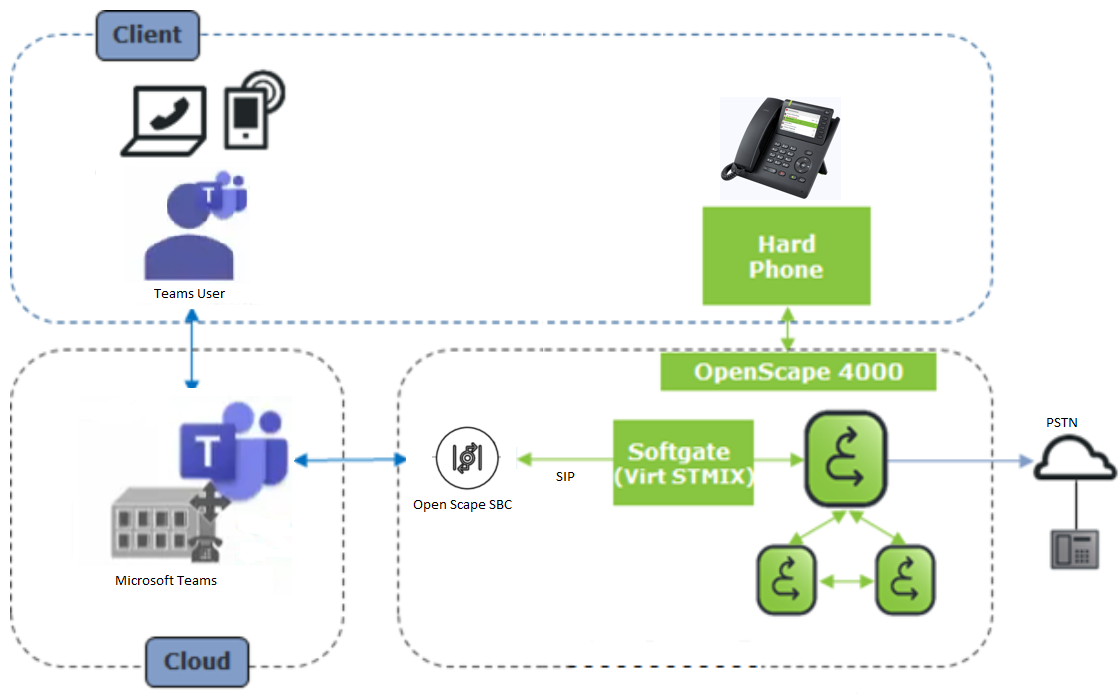

The block diagram below shows the Teams Direct Routing connection topology, Teams Phone System is directly connected to OpenScape SBC.

Figure 322. Teams Direct Routing connection

Native SIP trunks located on the SoftGate/STMIX/STMIY are considered for interoperability between OpenScape 4000 and MS Teams via OpenScape SBC.
