41 CDSM - Cabinet Configuration Display of System Server


Restrictions
Functions of the AMO
Error Messages and Advisories
Interrelationships
Parameter Description

This AMO is used to to output the cabinet configuration of a system - cabinet data, module frame data, and data of the server modules in the form of a table.
The cabinet is addressed by means of its cabinet address.
Description of the cabinet address:

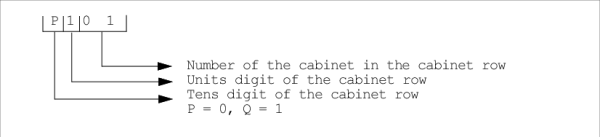

Figure 1
Cabinet Address
Output form

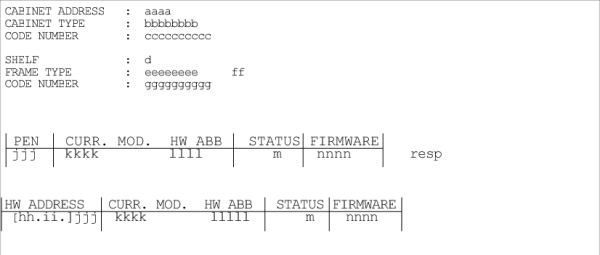

Figure 2
Output Form
Description of the variables:

aaaa:
Cabinet row, cabinet number (e.g. P101)


bbbb:
cabinet type

examples for Hicom 370:

CABB Basic cabinet

CABE Expansion cabinet

CABIS Server cabinet

CABM1 Main distribution frame cabinet 1

CAB600C Basic cabinet

CAB600C1 Expansion Cabinet

CaB600C2 Expansion Cabinet

CABCS Server cabinet



examples for Hicom 390:

CABC Central cabinet

CABC1 Central cabinet 1

CABC2 Central cabinet 2

CABP Periphery cabinet

CABIS Server cabinet

CABM1 Main distribution frame cabinet 1

CABM2 MDF cabinet

CABD Device cabinet

CABCS Server cabinet


cccc:
2nd, 3rd and 4th block of the cabinet part code number


d:
Shelves 1 - 7


eeee:
shelf types

for example:

LTUS Line trunk unit

PS Power supply

CC600 Common control

FUSE Fuse panel

CCM Common control multiprocessing

IOC-CSN Central switching network

GP Group processor

DAE Remote data transmission

ISE Integrated server expansion

MH Remote data transmission

DS Hard disk

AD AD server

VM Voice mail server

TD Text data module


ff:
for LTU : 1 - 15 LTU number

for IOC-CSN : 1 - 4 CSN number

for CC : half (A or B)

for server module : server id (A1, V1-V3, T1-T3)
gggg:
2nd, 3rd and 4th block of the shelf part code number


hh:
LTG number 1 - 32 (output only for PSIO)


i:
LTU number 1 - 8 (output only for PSIO)


jjj:
Port equipment number 1 - 127


kkkk:
Module in expected configuration, 2nd and 3rd block of code number


llll:
Module abbreviation (e.g. SLMA)


m:
Module status 1 - 16


nnnn:
Firmware designation
