146 MFCTA - Administration of Multifrequency Code Tables


Restrictions	Functions of the AMO	Error Messages and Advisories
Interrelationships	Parameter Description

The AMO MFCTA allows the user to CHANGE, DISPLAY, REGENERATE and COPY the MFC variant tables and MFC signal conversion tables.

These are allocated when creating (adding) an MFC circuit, with the aid of the parameter MFCVAR of the AMO TACSU.

The tables exist in the CC and in the LTG(s), and are initialized with the aid of COPY the invariable basic initialized tables from the hard disc.

The existing initialization tables on harddisc can be displayed with the command
DISPLAY-MFCTA:,HD;. The number of MFC tables in database are configured using AMO DIMSU, parameter MFCVAR.

For this reason, the AMO does not contain an ADD branch.

The contents of the CC tables are transferred to the corresponding DH (device handler) tables by means of an LTG 1:1 update.

The MFC tables (MFCVAR = 1 - up to 10 (AMO DIMSU, parameter MFCVAR)) are subdivided in:

MFC Variant Table

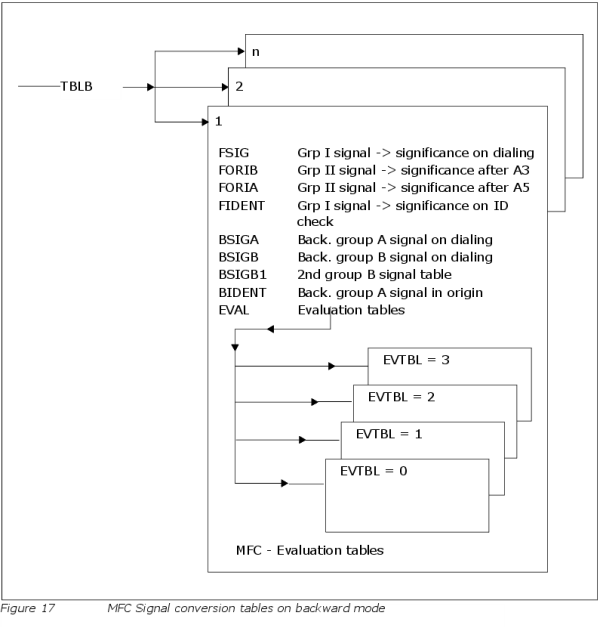

MFC Signal Conversion Table for Backward Mode

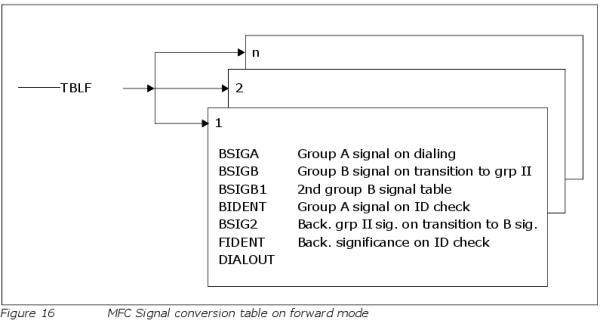

MFC Signal Conversion Table for Forward Mode
