188.5 Keys and devices

188.5.1 Keys position to physical address for configuration and diagnosis purpose

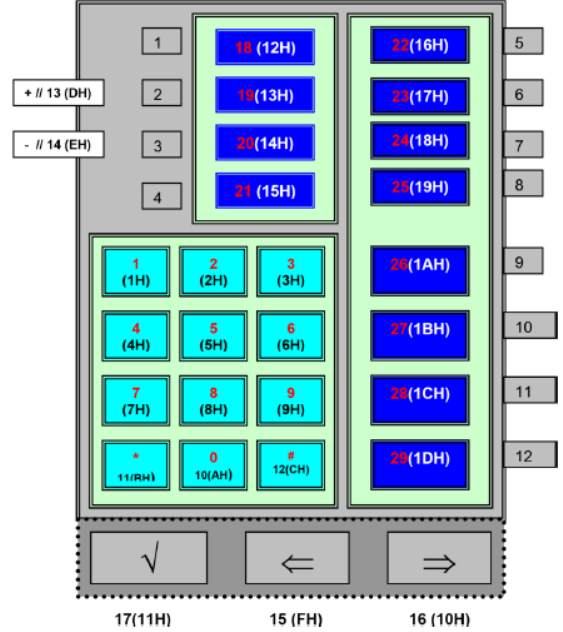

Correspondence between the phone key-boards and Physical Key Address

Phone type: optiset

Figure 27

Correspondence between the phone key-boards and Physical Key Address for optiset phone type

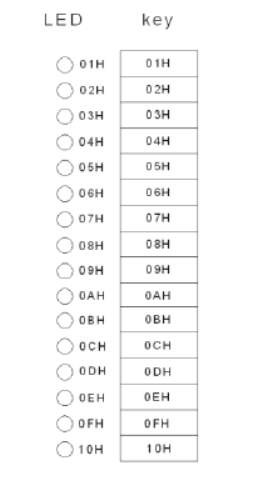

Additional button (from 13 to 19):

Figure 28

Additional button

Figure 29

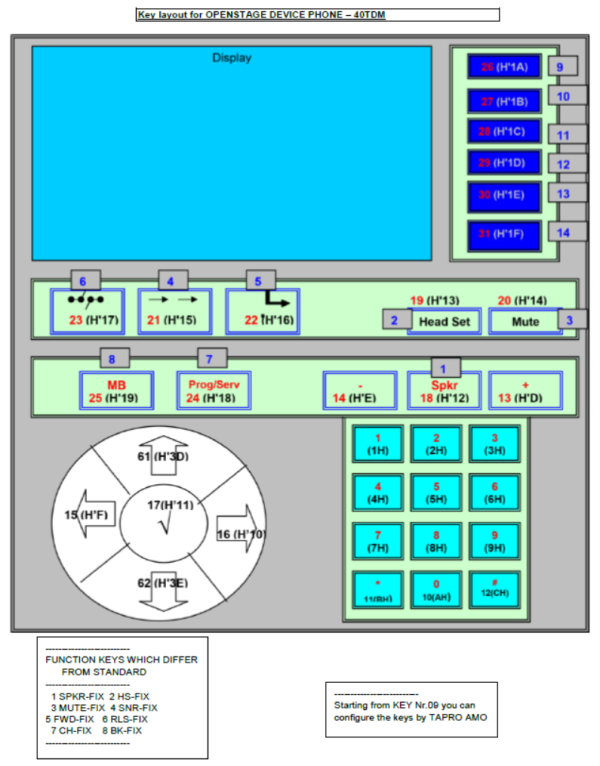

Key layout for OpenStage Device Phone 40TDM

Figure 30

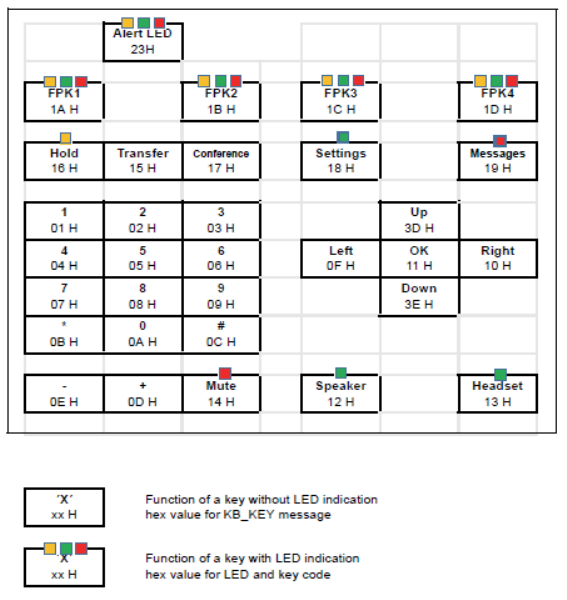

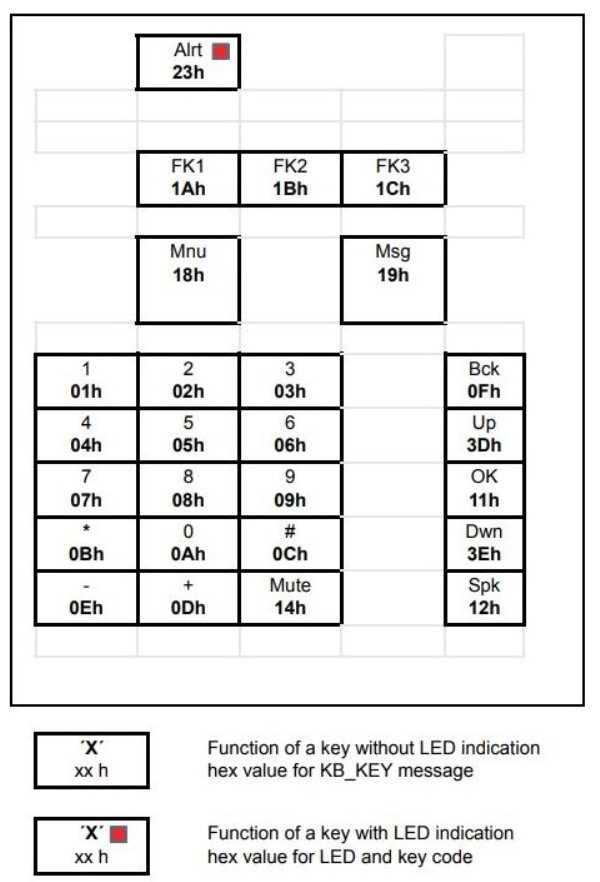

Physical Key and LED codes for DeskPhone CP100 phone

Figure 31

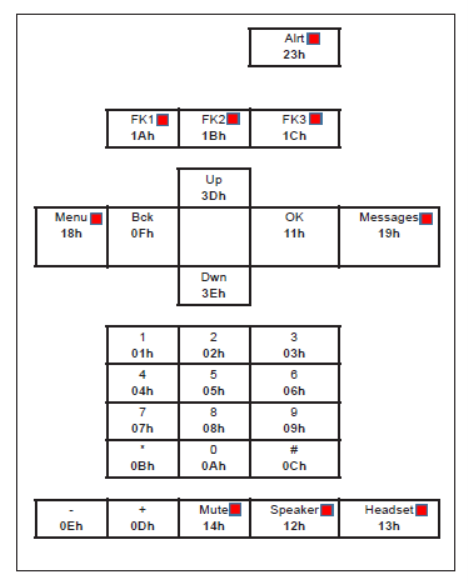

Key / LED-Map of the DeskPhone CP110 phone

Figure 32

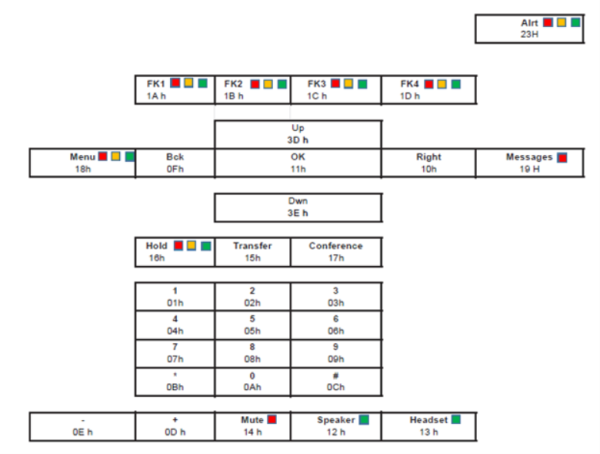

Key / LED-Map of the DeskPhone CP200 phone

Figure 33

Key / LED-Map of the DeskPhone CP210 phone

Figure 34

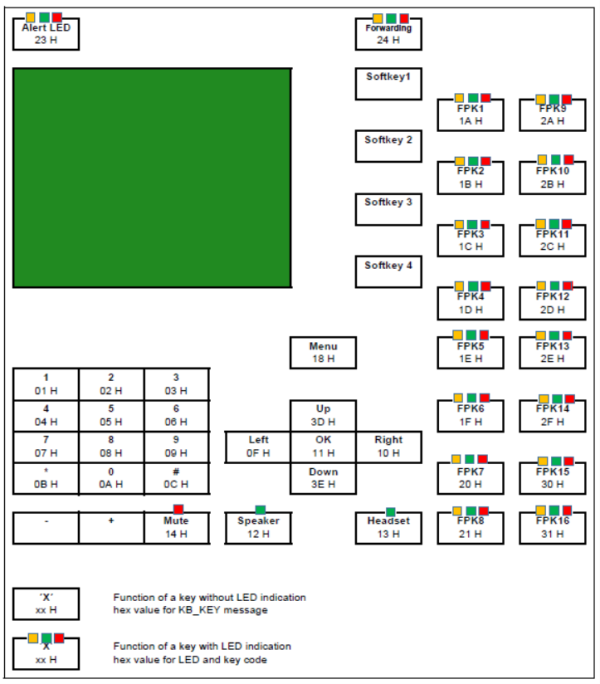

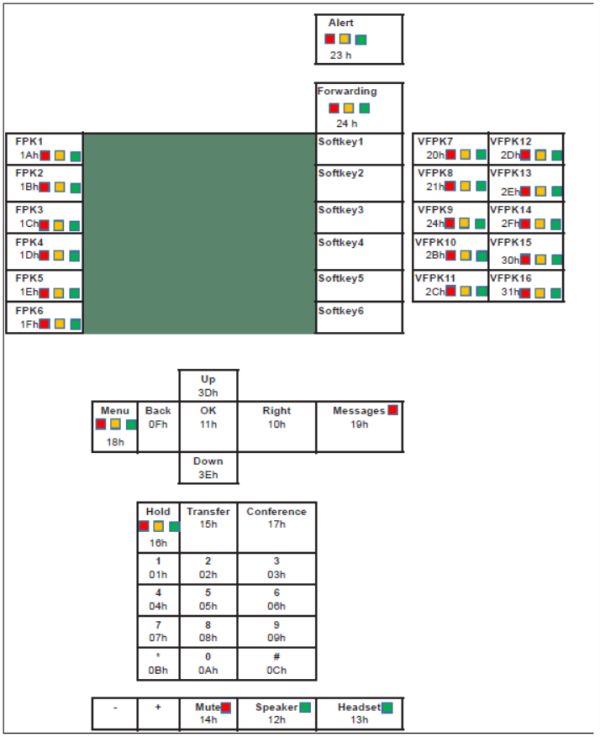

Key / LED-Map of the DeskPhone CP400 phone

Figure 35

Key / LED-Map of the DeskPhone CP410 phone

Figure 36

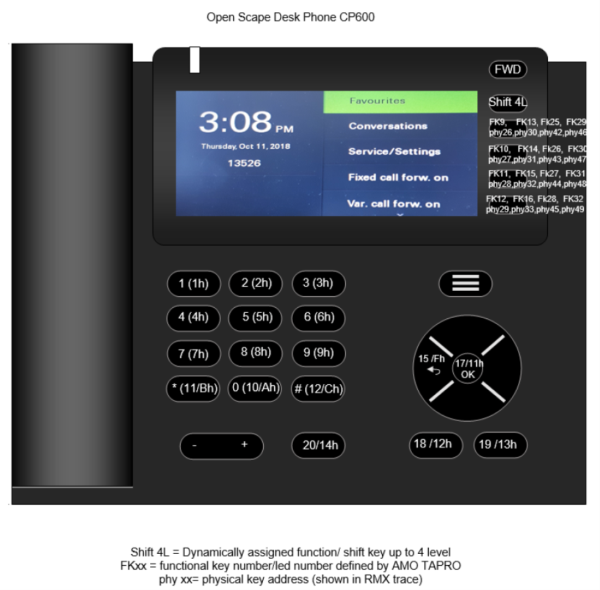

Open Scape Desk Phone CP600

Additional information for functional key number:

Table 13

Functional key numbers and corresponding physical key address for CP400/CP410/CP600/CP700/CP710

Functional key number

Figure 37

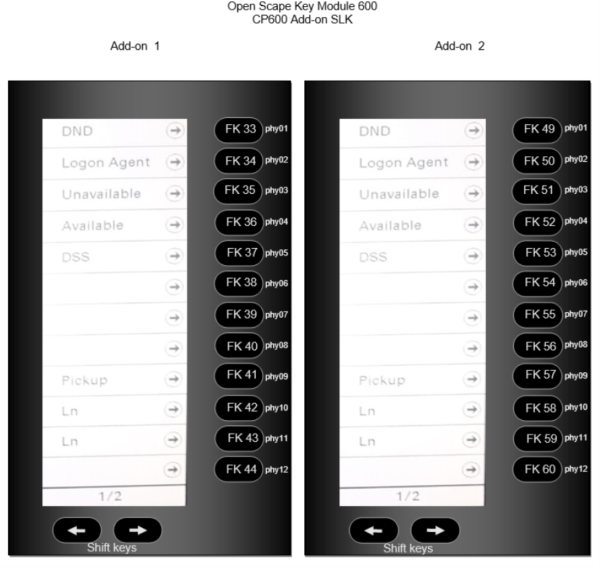

Additional information for functional key number on Add-on 1:


Functional key number	Physical key address
FK33	phy01
FK34	phy02
FK35	phy03
FK36	phy04
FK37	phy05
FK38	phy06
FK39	phy07
FK40	phy08
FK41	phy09
FK42	phy10
FK43	phy11
FK44	phy12

Table 14

Functional key numbers and corresponding physical key address for Add-on 1 (KM600/KM700/KM710)

Additional information for functional key number on Add-on 2:


Functional key number	Physical key address
FK49	phy01
FK50	phy02
FK51	phy03
FK52	phy04
FK53	phy05
FK54	phy06
FK55	phy07
FK56	phy08
FK57	phy09
FK58	phy10
FK59	phy11
FK60	phy12

Table 15

Functional key numbers and corresponding physical key address for Add-on 2 (KM600/KM700/KM710)

Figure 38

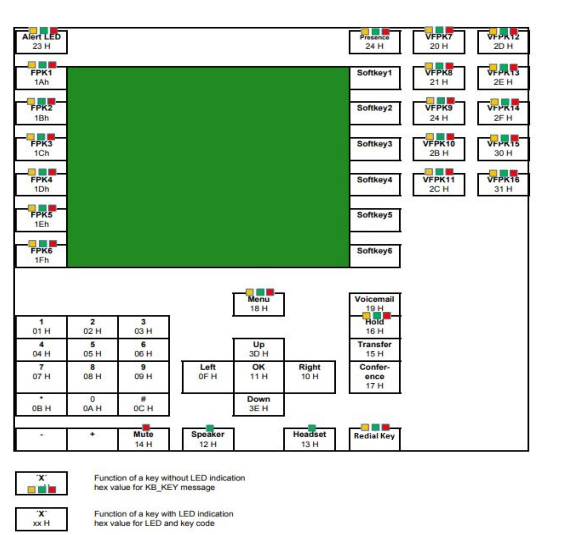

Physical Key and LED codes for DeskPhone CP700 phone

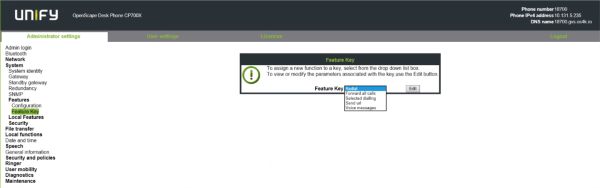

The redial key, presented in the right lower corner, is a programmable key which can be configured by the user/administrator from the WBM of the phone. There are 5 predefined values for this key:

Figure 39

Values for the Redial Key

Figure 40

Key / LED-Map of the DeskPhone CP710 phone

Figure 41

Physical LED- and Key Codes for Key Module 410
