Examples for ISDN-terminal connections
Examples for ISDN-terminal connections:
Figure 79

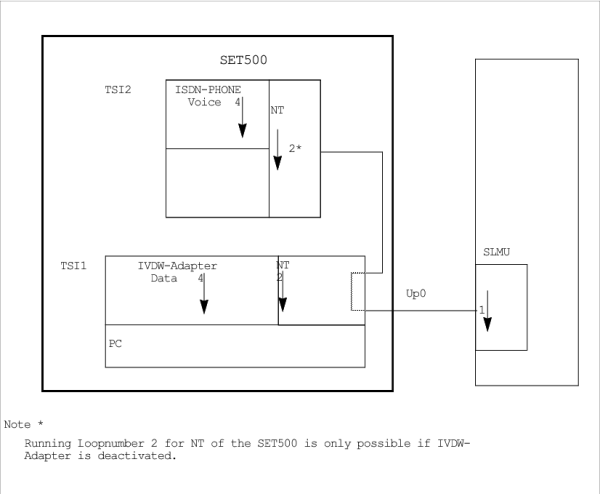

Cornet-T terminals connected to Up0 (SET500)
Figure 80

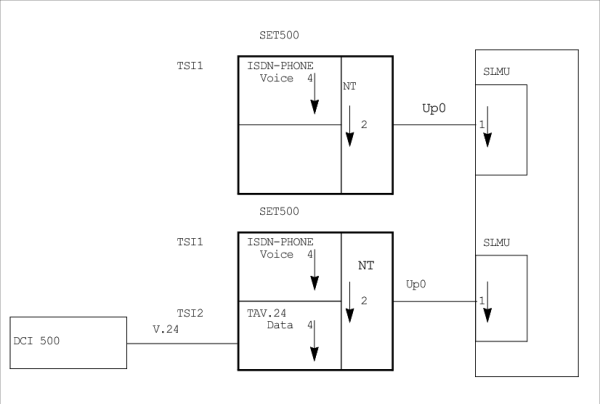

Cornet-t terminals connected to Up0
Figure 81

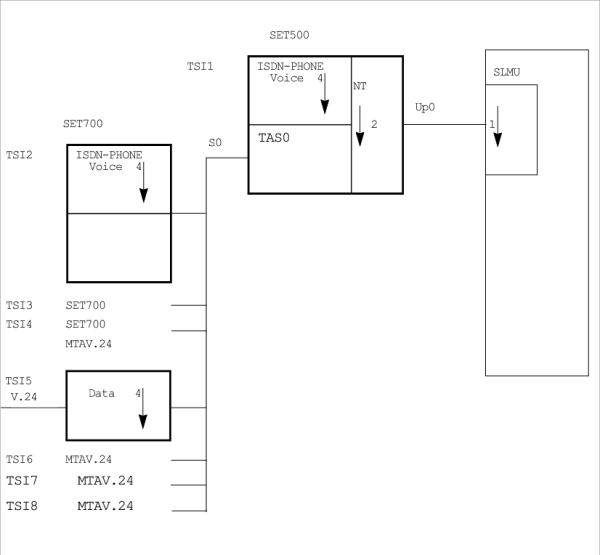

Cornet-T terminals connected to Up0 and S0-bus (by SET500)
Figure 82

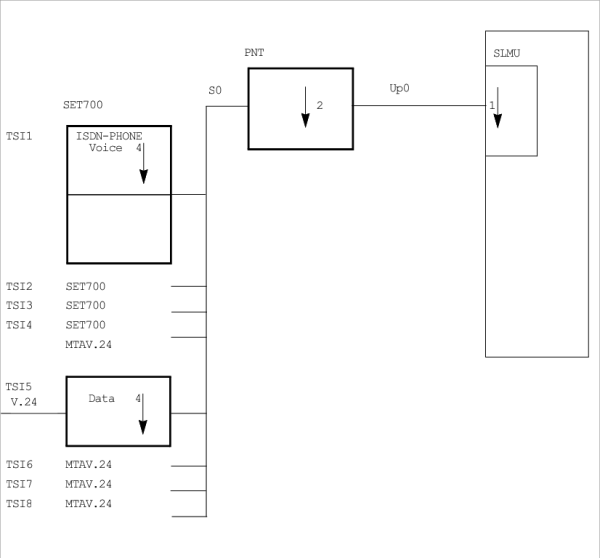

Cornet-T terminals connected to Up0 and S0-bus (by PNT)
Figure 83

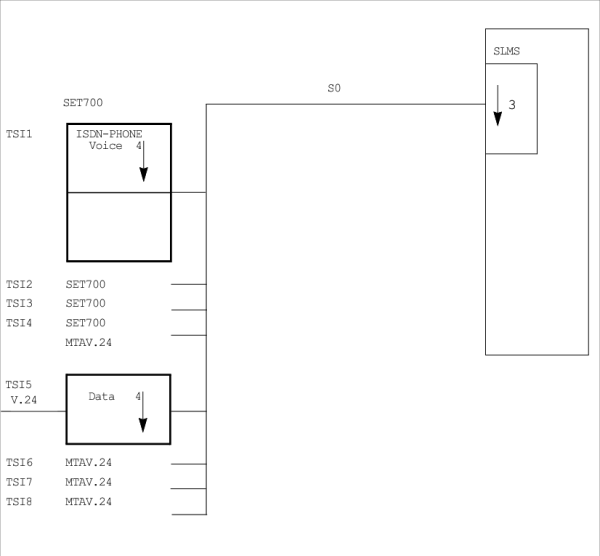

Cornet-T terminals connected to S0-bus (SLMS board)
Figure 84
Cornet-T terminals connected to S0-bus (STMD board)
Test loop number
Module type
Default
additional allowed
SLMR/SLMR24
SLMR-VOICE
SLMR-DATA
ATI
OPS
DiD
DiD8
DiR
COT
TTI
SMIDIG
SMIANA
TMD24
ILOC
IDC, IDL, EDC
TMDN/SLMN-T1
ILOC
ILOC, IDC, IDL, EDC, PON, POFF
T1
ILOC
ILOC, IDC, IDL, EDC,
SMIANA, SMIDIG
RLI
RLITDM
STMA_TFA/ STMA_PSW
1
SLMO/SLMO-REMOTE
1
Table 42
List of possible test loops for circuit test
Test loop number
Module type
Default
additional allowed
SLMSI
DIUC/DIUC64/STMA
DIUS2/DIUS7/SLMN-E1
4
SLMU
SLMU16
SLMQ/SLMQ-EXT
4
2 (PNT)
SLMO/SLMO-REMOTE
4
2
Table 43
List of possible test loops for device test
Note
Test loop number will be ignored on testing other modules. The loop number is defined by the internal testroutines.
