11.8.4.1. Trunk Night Service Previous topic Parent topic Child topic Next topic

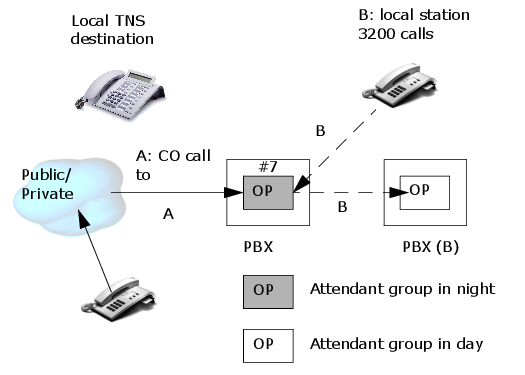

Incoming CO calls to the operator (attendant group) should come to a local trunk night destination 4711, only if operator has activated night option 7 (in the example, night option 7 is night mode to external centralized attendant)
Parameter settings in PBX(A):
  • AMO ZAND:ATND
    • INIGHT = YES
    • INGHTACT = 1
    • CACFWMAX >= 1
  • AMO VFGR
    • INIGHTPR = NO
    • CASMFC = YES
  • AMO VFGKZ
    • ATND+ATNDDID entries required
  • AMO TDCSU / TACSU
    • INIGHT = 4711 (trunk night service destination number)
Parameters have to be set in all affected break-in-nodes / trunks of the network.
