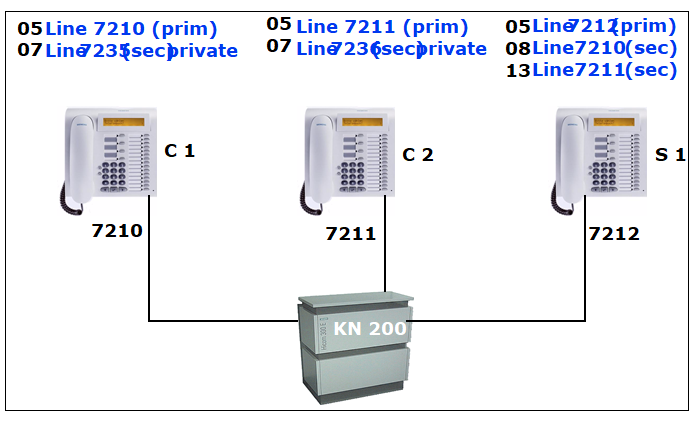

8.11.2.2.1. Local Keysystem
- The subscribers 7210, 7211 and 7212 are added in node 10-30-200.
- These three subscribers form a Team.
Add a key layout
CHANGE-TAPRO:STD=126,DIGTYP=OPTIT19,KY01=CH,KY02=SNR, KY03=FREE,KY04=SPKR,KY05=LINE,KY07=LINE,KY19=RLS, INFO="KEY-EXECUTIVE TI_E"; CHANGE-TAPRO:STD=127,DIGTYP=OPTIT19,KY01=CH,KY02=SNR, KY03=FREE,KY04=SPKR,KY05=LINE,KY08=LINE,KY13=LINE, KY19=RLS,INFO="KEY-EXECUTIVE TI_S";
Subscribers
ADD-SBCSU:STNO=7210,OPT=OPTI,CONN=DIR,PEN=1-2-4-6, DVCFIG=OPTIP500,COS1=33,COS2=33,LCOSV1=9,LCOSV2=9, LCOSD1=9,LCOSD2=9,DPLN=0,ITR=0,REP=1,STD=126, TEXTSEL=ENGLISH,CALLOG=TRIES; ADD-SBCSU:STNO=7211,OPT=OPTI,CONN=DIR,PEN=1-2-4-7, DVCFIG=OPTIP500,COS1=33,COS2=33,LCOSV1=9,LCOSV2=9, LCOSD1=9,LCOSD2=9,DPLN=0,ITR=0,REP=1,STD=126, TEXTSEL=ENGLISH,CALLOG=TRIES; ADD-SBCSU:STNO=7212,OPT=OPTI,CONN=DIR,PEN=1-2-4-8, DVCFIG=OPTIP500,COS1=33,COS2=33,LCOSV1=9,LCOSV2=9, LCOSD1=9,LCOSD2=9,DPLN=0,ITR=0,REP=1,STD=127, TEXTSEL=ENGLISH,CALLOG=TRIES;
Phantom subscriber
ADD-SBCSU:STNO=7235&7236,OPT=OPTI,CONN=DIR, DVCFIG=OPTIP500,COS1=33,COS2=33,LCOSV1=9, LCOSV2=9,LCOSD1=9,LCOSD2=9,STD=127,INS=SIGNOFF;
Add the KEYSYSTEM
- primary
ADD-KCSU:STNO=7210,TYPE=PRIM,PRIMKEY=5, RIOP=YES,ORLNPF=PRIME,TMLNPF=RING, BUSYRING=ALERT,APRIVAT=NO,AICS=NO; ADD-KCSU:STNO=7211,TYPE=PRIM,PRIMKEY=5, RIOP=YES,ORLNPF=PRIME,TMLNPF=RING, BUSYRING=ALERT,APRIVAT=NO,AICS=NO; ADD-KCSU:STNO=7212,TYPE=PRIM,PRIMKEY=5, RIOP=YES,ORLNPF=PRIME,TMLNPF=RING, BUSYRING=ALERT,APRIVAT=NO,AICS=NO; ADD-KCSU:STNO=7235,TYPE=PRIM,PRIMKEY=5, RIOP=YES,ORLNPF=PRIME,TMLNPF=RING, BUSYRING=ALERT,APRIVAT=NO,AICS=NO; ADD-KCSU:STNO=7236,TYPE=PRIM,PRIMKEY=5, RIOP=YES,ORLNPF=PRIME,TMLNPF=RING, BUSYRING=ALERT,APRIVAT=NO,AICS=NO;
- secondary
ADD-KCSU:STNO=7210,TYPE=SEC,KYNO=07,STNOSEC=7235, RIOP=YES,AICS=NO; ADD-KCSU:STNO=7211,TYPE=SEC,KYNO=07,STNOSEC=7236, RIOP=YES,AICS=NO; ADD-KCSU:STNO=7212,TYPE=SEC,KYNO=08,STNOSEC=7210, RIOP=NO,AICS=NO; ADD-KCSU:STNO=7212,TYPE=SEC,KYNO=13,STNOSEC=7211, RIOP=NO,AICS=NO;

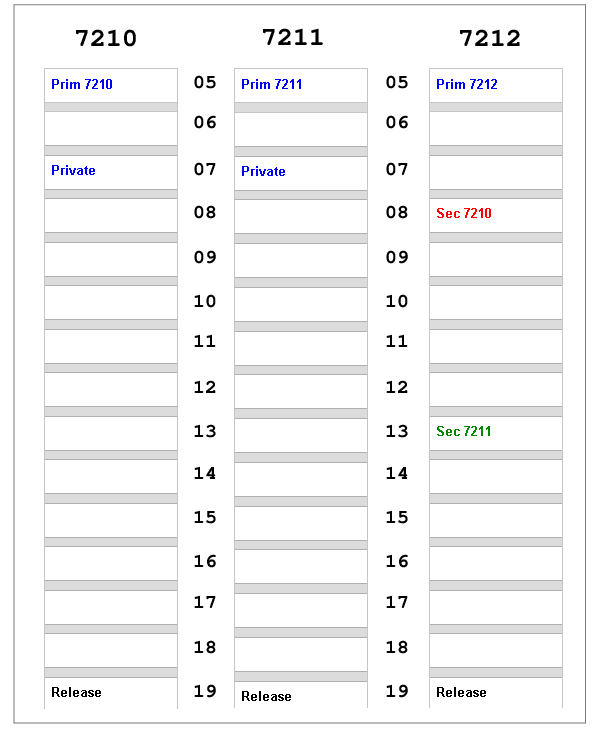

Key layout after generating this step
