8.11.2.2.3. Mailbox per Line Previous topic Parent topic Child topic Next topic

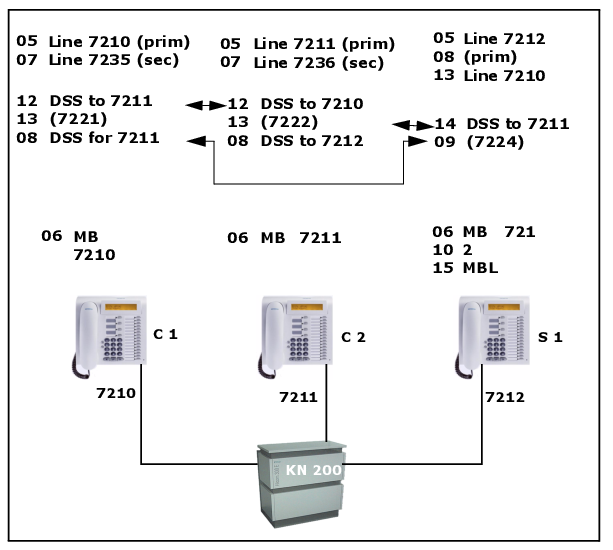

  • The mail box buttons shall be line related (per line an assigned mail box).
  • All users who own such a mail box button for a certain line can read, delete and distribute the entries of the mail box.
  • Only 1 user can scroll through the same mail box at the same time.
  • Per station up to 29 Mail box keys can be configured.

Remark:

  • For the phantom lines the Voice/phone-mail features are not reached by call forwarding, because the call forwarding belongs to the terminal and not the line.
  • No network wide function
Changing key layout (extend STD 126 and 127)
CHANGE-TAPRO:STD=126,DIGTYP=OPTIT19,KY06=MB;

CHANGE-TAPRO:STNO=7210&7211,STD=126;

CHANGE-TAPRO:STD=127,DIGTYP=OPTIT19,KY06=MB,
KY10=MBLINE,KY15=MBLINE;

CHANGE-TAPRO:STNO=7212,STD=127;
Add mailbox for line
ADD-ZIELN:STNO=7212,TYPE=MBLINE,KYNO=10,STNOMB=7210;

ADD-ZIELN:STNO=7212,TYPE=MBLINE,KYNO=15,STNOMB=7211;

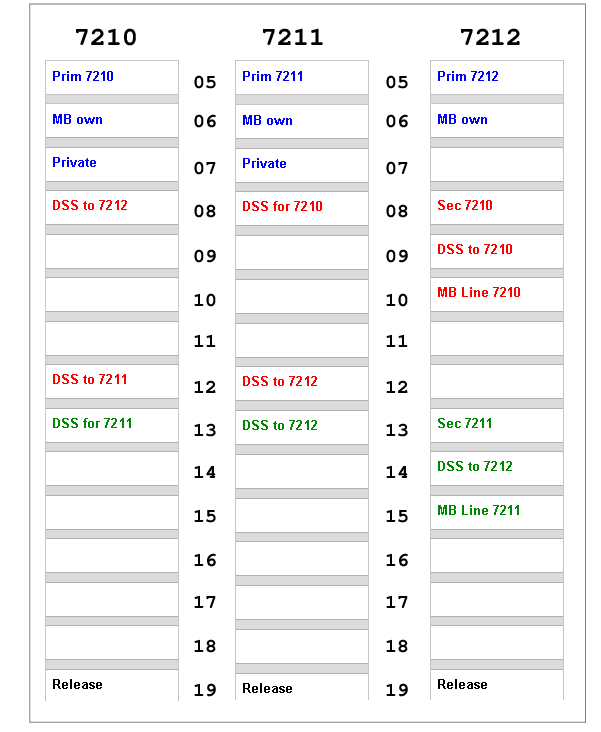

Key layout after generating this step
