8.12.3.2. Example with Auxiliary Device

IMPORTANT:

The example below shows the steps to be followed for AMO configuration. CMI station configuration is not taken into consideration here.

System-wide AMOs
```
ADD-DIMSU:TYPE=BASIC,AUXDIGI=xx;
```
xx=number of virtual stations, if GSM devices or other external stations are being used in an ONS group.
Checking the FWDMAX counter.
Parallel ringing of ONS members is achieved with the FWD functions:
```
DISPLAY-ZAND:TYPE=ALLDATA2;

CHANGE-ZAND:TYPE=ALLDATA2,FWDMAX=xx;
```

Configuring station 7150 (ONS master)

ADD-SBCSU:STNO=7150,OPT=OPTI,CONN=IP2,PEN=1-1-37-0,
DVCFIG=OPTIIP,COS1=33,COS2=30,LCOSV1=9,LCOSV2=1,
LCOSD1=5,LCOSD2=1,DPLN=0,ITR=0,SSTNO=NO,COSX=1,SPDI=0,
SPDC2=1,IDCR=NO,REP=0,STD=104,SECR=NO,INS=YES,ALARMNO=0,
RCBKB=NO,RCBKNA=NO,CBKBMAX=5,CBKNAMB=YES,TEXTSEL=GERMAN,
IPCODEC=G711PREF;

CMI station (6100) already configured

Configuring the virtual station 7151 (ACLSTN)

ADD-SCSU:STNO=7151,DVCFIG=AUXDIGI,DPLN=0,ITR=0,
COS1=10,COS2=10,LCOSV1=1,LCOSV2=1,LCOSD1=1,LCOSD2=1,
INS=ACLSTN;

Assigning station authorization

Master:	CHANGE-SDAT:STNO=7150,TYPE=ATTRIBUT,AATTR=PARARNGM;
Slave:	CHANGE-SDAT:STNO=6100,TYPE=ATTRIBUT,AATTR=PARARNGS; CHANGE-SDAT:STNO=7151,TYPE=ATTRIBUT,AATTR=PARARNGS;

Defining COPIN class 15 for the master PIN

CHANGE-PERSI:TYPE=SYS,PIN15LEN=4;

CHANGE-PERSI:TYPE=COPIN,COPIN=15,COTYPE=NONE,
PINTEXT="ONS MASTER",DISPRSTN=NO,PINDUR=PERM,
IDHOME=NO,PARARNGM=YES,COSHOME=YES;

Assigning the master PIN to the ONS master

ADD-PERSI:TYPE=STN,STNO=7150,NAME="ONS MASTER",
PIN15=7150,PININDIV=YES;

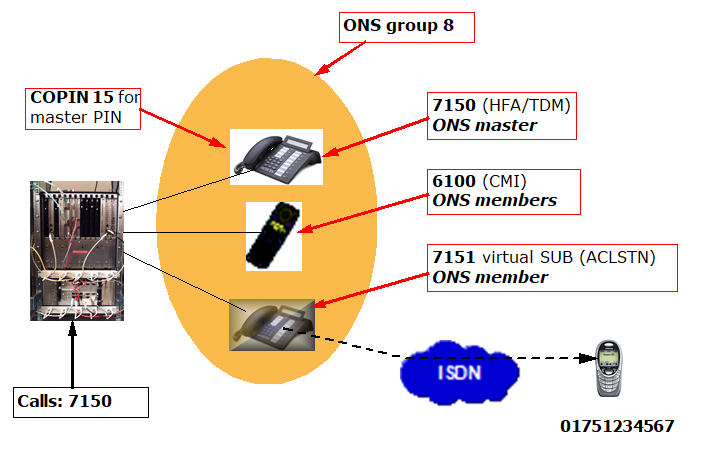

Configuring ONS group 8

ADD-AUN:GRNO=8,TYPE=ONS,STNO=7150&7151&6100;

ADD-AUN:GRNO=8,TYPE=ONS,REMAC=001751234567;

Displaying the ONS group

DISPLAY-AUN:TYPE=ONS;
+-----------------------------------------------------------+

| GROUP NO.:   8                                            |

| PU SECOND CALL:  NO                                       |

| ONS :   YES          SMPF :   YES         ONSSNS : NO     |

|                                                           |

| SUBSCRIBER:     7150 (MASTER)                             |

|                 7151                                      |

|                 6100                                      |

| REMAC:  001751234567                                      |

+-----------------------------------------------------------+

Description of the additional control mechanisms
- AMO PERSI: ONSSNS
  ONSSNS = YES:

  When ONS Slave answers a call, only the main ONS will be shown on A Party.

  ONSSNS = NO:

  When ONS Slave answers a call, ONS Slave will also be shown on A Party (as a secondary display line).
- AMO PERSI: COPIN
  DISPRSTN = YES:

  The original number is displayed on the B station for an outgoing call from an ONS slave station.

  DISPRSTN = NO:

  The ONS master number is displayed on the B station for an outgoing call from an ONS slave station (default).
- AMO CTIME: CP2, SMPFTIME (default 8 sec.)
  This preset time period is the maximum that the system will wait for a response from the external station (REMAC call number). If there is no response after this time has elapsed, the internal ONS stations will ring. If there is a response before this time has elapsed, all free ONS stations ring simultaneously.
- AMO COT: VNCO
  This parameter is needed when calling from a Slave to Central Office (or 3rd party system) to ensure the Calling Number is replaced by that of the ONS.
