5.1.2.2. Meshed network, partially meshed Previous topic Parent topic Child topic Next topic

In this type of network, only some systems have a direct connection to every other system.

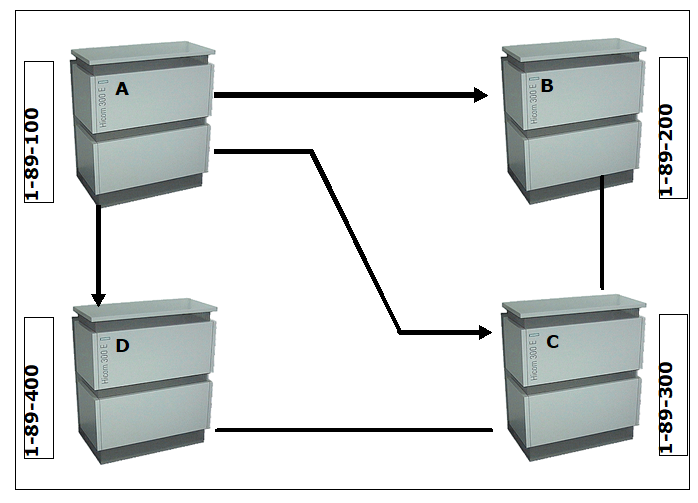

Figure 5. Meshed Network, Partially Meshed
