5.1.4.1. Feature description Previous topic Parent topic Child topic Next topic

You store the entire station number household of a network in the DPLN of all nodes. With ADD WABE, you assign all network station numbers to the DAR=STA. With CHA WABE, you assign all node-external station numbers a DESTNO. If the nodes are not fully meshed, configure fictive routes with the destination number of the destination node over the transit node. This is done with a separate code to DAR "NETRTE" with the same trunk group that leads to the transit node, but with the destination number on which the station device is configured. This does not apply to the central office code in nodes without trunks.

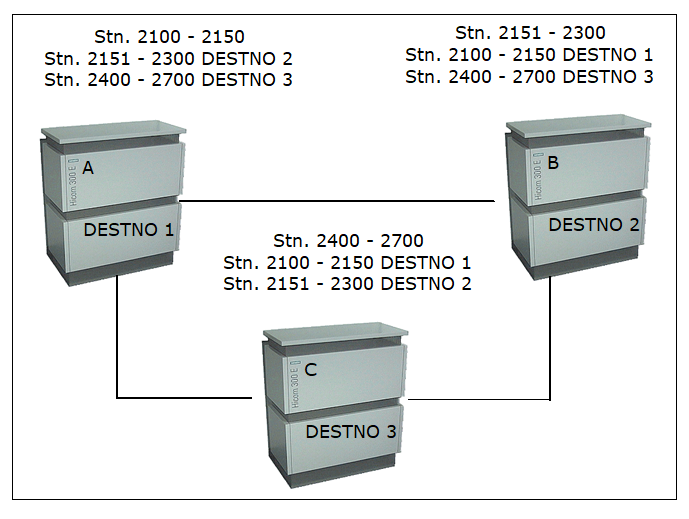

Figure 7. Network with 3 Nodes, Fully Meshed

You can also configure several routes between 2 nodes and these routes can be a mixture of analog and digital. You can assign a separate destination number to each route. If you have configured the route with the digit analysis result NETRTE, you determine the route that should be seized after this code is dialed by specifying the appropriate DESTNO.
