5.11.1. General
The ECMA1 QSIG protocol is based on the European ETSI standard (see
Figure 20).
A variation of supplementary services supporting the ETSI standard was
implemented and tested (see Table 7).
In the meantime, the European Standardization Committee ETSI has released
edition 2 (following the ISO standard). The coding of the ETSI edition
1 supplementary services implemented is not compatible with ETSI edition
2 (see Table 6).
A new protocol variant ECMAV2 was incorporated with the same feature
range as the predecessor (see Figure 20).
The worldwide accepted standardization committee ISO/IEC (International
Standardization Organization/International Electrotechnical Commission)
included the QSIG standard in the standards catalogue. The coding of
the ETSI edition 1supplementary services is not compatible with ISO/IEC
edition 1. Consequently, a new protocol (PSS1V2) was incorporated with
the same features as the predecessor (see Figure 20).
The QSIG protocol "CorNet NQ V2.1/V2.2/V2.3" describes private signaling
based on the ISO standard on one hand, and signaling based on the ETSI
standard's Basic Call (edition 3) and Supplementary Services (edition
2) on the other.
IMPORTANT:
The private CorNet N elements are no longer transferred
in the protocol. This means that the CorNet-N-specific features no longer
work.
Use the ECMA1 protocol variant to network Hicom 300 E V2.0 with an
OpenScape 4000.
CORNV33 is available for coupling an OpenScape 4000 to CorNet N networks
with Hicom 300 V3.3.
A comparison of the various releases is required for the correct use
of the protocol variants (ECMA1, PSS1V2 and ECMAV2) for networking an
OpenScape 4000 with a third-party PINX (see Table 6).
The continuity of the individual features on the reference points
S/T and Q over the various protocols is shown in Table 7.

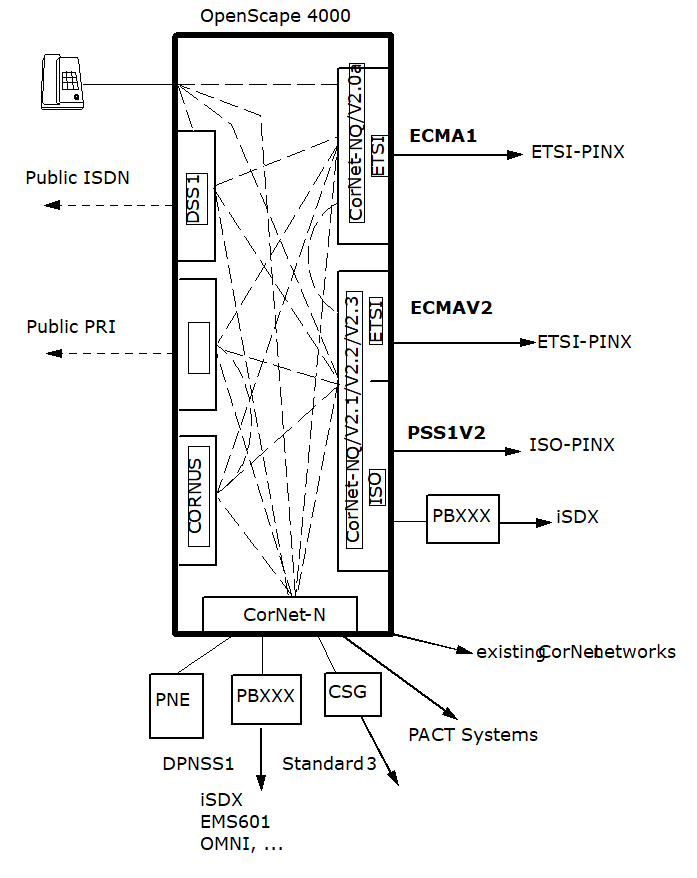

Figure 18. Range of protocol variants
Table 6. Assignment of implemented Supplementary Services to the ETSI/ISO Standards
|
Standards
|
CorNet - NQ V2.0
|
CorNet - NQ V2.1/V2.2/V2.3
|
||
|
OpenScape 4000 Protocol variant
|
ECMA1
|
ECMAV2
|
PSS1V2
|
|
|
BC
SUB
|
Basic Call
|
ETS 300 172 Jan. 1994 Second Edition
|
ETS 300 172 Nov. 1995 Third Edition
|
ISO/IEC 11572:1996(E) Second Edition Draft Amendment
1 to ISO 11572 Draft Amendment 2 to ISO 11572
Transit Counter
ANF
|
|
GF
HOLD
|
Generic Functions
|
ETS 300 239 June. 1993 First Edition
|
ETS 300 239 Nov. 1995 Second Edition
|
ISO/IEC 11582:1995(E) First Edition
|
|
Circuit-mode multi-rate bearer services
|
ISO/IEC 11584:1996(E) First Edition
|
|||
|
CNIP/R
CONP/R
|
Name identification supplementary services
|
ETS 300 238 June 1993 First Edition
|
ETS 300 238 Nov. 1995 Second Edition
|
ISO/IEC 13868:1995(E) First Edition
|
|
(E) CT
|
Call transfer supplementary services
|
ETS 300 261 Nov. 1993 First Edition
|
ETS 300 261 Nov. 1995 Second Edition
|
ISO/IEC 13869:1995(E) First Edition
|
|
CCBS
CCNR
|
Call completion supplementary services
|
ETS 300 366 Jul. 1994 First Edition
|
ETS 300 366 Nov. 1995 Second Edition
|
ISO/IEC 13870:1995(E) First Edition
|
|
CFB
CFNR
CFU
CFPR
|
Call diversion supplementary services
|
ETS 300 257 Nov. 1993 First Edition
|
ETS 300 257 Nov. 1995 Second Edition
|
ISO/IEC 13873:1995(E) First Edition
|
|
PR
|
Path replacement additional network feature
|
ETS 300 259 Nov. 1993 First Edition
|
ETS 300 259 Nov. 1995 Second Edition
|
ISO/IEC 13874: 1995(E) First Edition
|
|
CLIP
CLIR
COLP
COLR
|
Identification supplementary services
|
ETS 300 173 Dec. 1992 First Edition
|
ETS 300 173 Mai 1996 Second Edition
|
ISO/IEC 14136: 1995(E) First Edition
|
|
CO
|
Call offer supplementary service
|
ETS 300 362 Dec. 1994 First Edition
|
ISO/IEC 14843:1996(E)
|
ISO/IEC 14843:1996(E)
|
|
AOC-S
AOC-D
AOC-E
|
Advice of charge supplementary services
|
ECMA 212, Dec.1994
|
ISO/IEC DIS 15050
|
ISO/IEC DIS 15050
|
|
MWI
|
Message waiting indication supplementary service
|
ECMA 242,
June 1996
|
ISO/IEC 15506
|
ISO/IEC 15506:
|
Table 7. Summary of ETSI-DSS1 & PSS1 Supplementary Services with OpenScape 4000
|
ETSI & Qsig Supplementary
Services
|
Central Office (DTAG)
|
OpenScape 4000
|
|||||
|
DSS1-AnlAs
|
DSS1- MgAs
|
DSS1- AL
|
DSS1-AnlAs
|
DSS1-MgAs
|
PSS1- Qsig
|
||
|
Number & Identification Services:
|
|||||||
|
DDI
|
Direct Dialing In
|
+
|
na
|
+
|
+
|
na
|
na
|
|
PNP
|
Privat Numbering Plan
|
na
|
na
|
na
|
na
|
na
|
+
|
|
MSN
|
Multiple Subscr. Number
|
na
|
+
|
na
|
na
|
+
|
na
|
|
CLIP
|
Calling Line Identific. Pres.
|
+
|
+
|
+
|
+
|
+
|
+
|
|
CLIR
|
Calling Line Identific. Restr.
|
+
|
+
|
+
|
+
|
+
|
+
|
|
COLP
|
Connected Line Ident. Pres.
|
+
|
+
|
+
|
+
|
+
|
+
|
|
COLR
|
Conn. Line Ident. Restr.
|
+
|
+
|
+
|
+
|
+
|
+
|
|
CNIP/R
|
Calling Name Ident. Pres.
|
na
|
na
|
na
|
na
|
na
|
+(1)
|
|
CONP/R
|
Connected Name Ident. Pres.
|
na
|
na
|
na
|
na
|
na
|
+(2)
|
|
MCID
|
Malicious Call Identification
|
+
|
+
|
+
|
-
|
-
|
nq
|
|
SUB
|
Sub- Addressing
|
+
|
+
|
+
|
+
|
+
|
+
|
|
Call Offering Services:
|
|||||||
|
(E) CT
|
(Explicit) Call Transfer
|
+
|
+
|
-
|
-
|
+(3)
|
+
|
|
PR
|
Path Replacement
|
na
|
na
|
na
|
na
|
na
|
+
|
|
CFB
|
Call Forwarding Busy
|
+
|
+
|
-
|
-
|
+
|
+
|
|
CFNR
|
Call Forwarding No Reply
|
+
|
+
|
-
|
-
|
+
|
+
|
|
CFU
|
Call Forwarding Uncondit.
|
+
|
+
|
-
|
-
|
+
|
+
|
|
CFPR
|
Call Forw. Partial Rerouting
|
+
|
na
|
+
|
-
|
na
|
+
|
|
CD
|
Call Deflection
|
+
|
-
|
na
|
+
|
+
|
na
|
|
CO
|
Call Offer
|
na
|
na
|
na
|
na
|
na
|
+
|
|
Call Completion Services:
|
|||||||
|
CW
|
Call Waiting
|
na
|
+
|
na
|
na
|
+
|
na
|
|
HOLD
|
Call Hold
|
+(4)
|
+
|
-(5)
|
-(6)
|
+
|
+
|
|
CCBS
|
Compl. Calls Busy Subscr.
|
+
|
+
|
+
|
+
|
+
|
+
|
|
CCNR
|
Compl. of Calls on No Reply
|
+
|
+
|
-
|
-
|
-
|
+
|
|
Multiparty Services:
|
|||||||
|
CONF
|
Add- on Conference
|
+
|
+
|
-
|
-
|
-
|
-
|
|
3PTY
|
Three Party Service
|
na
|
+
|
na
|
na
|
+
|
-
|
|
MMC
|
Meet- Me Conference
|
-
|
-
|
-
|
-
|
-
|
-
|
|
Community of Interest Services:
|
|||||||
|
CUG
|
Closed User Group
|
+
|
+
|
-
|
+(7)
|
-
|
nq(8)
|
|
Charging related Services:
|
|||||||
|
AOC- S
|
Advice of Charge at Setup
|
-
|
-
|
+(9)
|
-
|
-
|
-
|
|
AOC- D
|
AOC during the Call
|
+
|
+
|
+
|
+
|
+
|
+
|
|
AOC- E
|
AOC at the End of the Call
|
+
|
+
|
+
|
+
|
+
|
+(10)
|
|
Additional Inform. Transfer Services:
|
|||||||
|
UUS1i
|
User- User Sign. Serv. 1 implicit
|
+
|
+
|
+
|
+
|
+
|
+
|
|
UUS1e
|
User- User Sign. Serv. 1 explicit
|
-
|
-
|
-
|
-
|
-
|
-
|
|
UUS2
|
User- to- User Sign. Service 2
|
-
|
-
|
-
|
-
|
-
|
-
|
|
UUS3
|
User- to- User Sign. Service 3
|
+
|
+
|
+
|
+
|
+
|
+
|
|
Other:
|
|||||||
|
TP
|
Terminal Portability
|
na
|
+
|
na
|
na
|
-
|
na
|
|
FPH
|
Freephone
|
-
|
-
|
-
|
-
|
-
|
na
|
|
MWI
|
Message Waiting
|
-
|
-
|
-
|
-
|
-
|
+
|
|
Generic functional protocol:
|
|||||||
|
GF
|
Generic functional protocol
|
+
|
+
|
+
|
+
|
+
|
+
|
|
GF- KP
|
Generic keypad protocol for the Support of SS
|
-
|
+
|
-
|
-
|
?
|
na
|
Abbreviations:
|
DTAG
|
=
|
Deutsche Telecom AG
|
AnlAs
|
=
|
(Sub-) system interface
|
|
AL
|
=
|
Trunk
|
MgAs
|
=
|
Point-to-multipoint interface
|
|
+
|
=
|
implemented
|
-
|
=
|
not implemented
|
|
na
|
=
|
not applicable
|
nq
|
=
|
supported over CorNet-NQ V2.1
|
| (1) | Display dependent on the Pres Ind of the assigned number |
| (2) | Display dependent on the Pres Ind of the assigned number |
| (3) | "implicit request" only |
| (4) | Transmission of the "Notify" message |
| (5) | Transmission of the "Notify" message |
| (6) | Transmission of the "Notify" message |
| (7) | for the 'FUEV' feature only |
| (8) | for the 'FUEV' feature only |
| (9) | not based on "per call" |
| (10) | not "unsolicited" call data |
