5.16.4. Central Office Breakout Previous topic Parent topic Child topic Next topic

Trunk calls are routed to the private node closest to the destination. This is only sensible if the destination is within the local area, or if the short-haul area of a node lies within the private network. Breakout into the public network (CO Breakout) is thus performed at the least expensive point and the use of resources in the private network minimized.

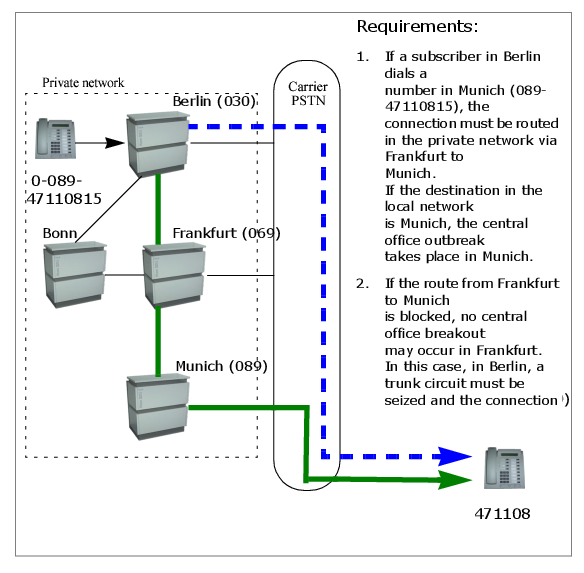

Figure 28. Central Office Breakout
