5.16.14.2. Service Information Previous topic Parent topic Child topic Next topic

  • Source / destination node numbers can also be in other physical nodes.
  • Source and destination node numbers must be virtual node numbers of the same priority.
  • Renewed transit through the modification also takes place in the case of rerouting.
IMPORTANT:
Modification of the LCOS's only serves the path selection within the routes defined in AMO LDAT and is not permanently changed or propagated.
  • This function can also be combined with other LCR features.

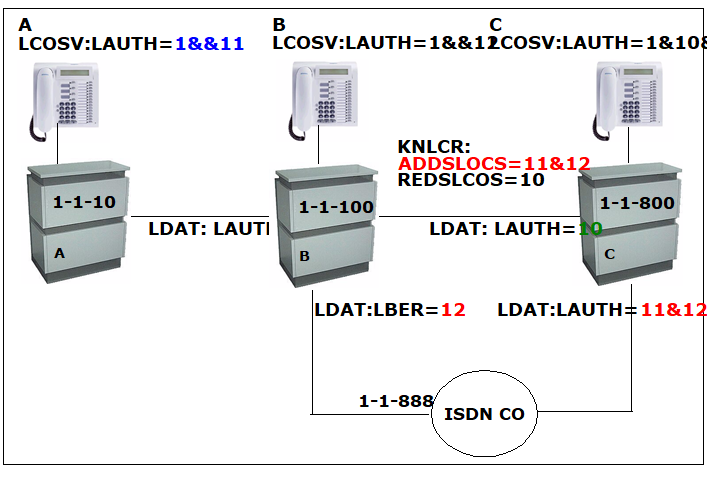

    Figure 36. Example of a Source Dependent Call Setup
