5.16.18.2.1. Feature Description Previous topic Parent topic Child topic Next topic

A call is queued off-hook if no B channel is free in any of the trunk groups. This results in a B channel being reserved for the station. An Off-Hook queue can likewise take place in a transit station (Node 1-89-200). If a B channel becomes free, this is assigned to the queued call/circuit with the highest priority.
If a direction (AMO LDAT) has been assigned to the parameter LATTR with the parameter value OHKQ, the call is inserted into the off-hook queue.
In the transit case, the LCOSV of the station must additionally be assigned the parameter value OHKQT, and the COT of the incoming circuit the parameter value OHKQ.

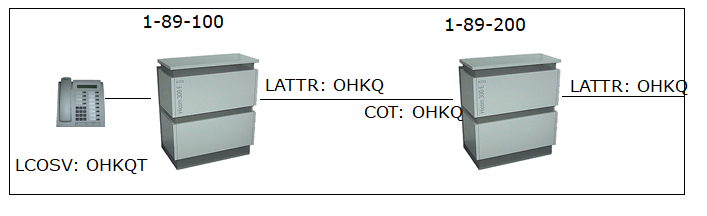

Figure 42. Off-Hook Queuing
