5.17.2. External Rerouting Disabled Previous topic Parent topic Child topic Next topic

External rerouting by to the public or Foreign networks may want to be disabled througout the network there by giving the originating system control

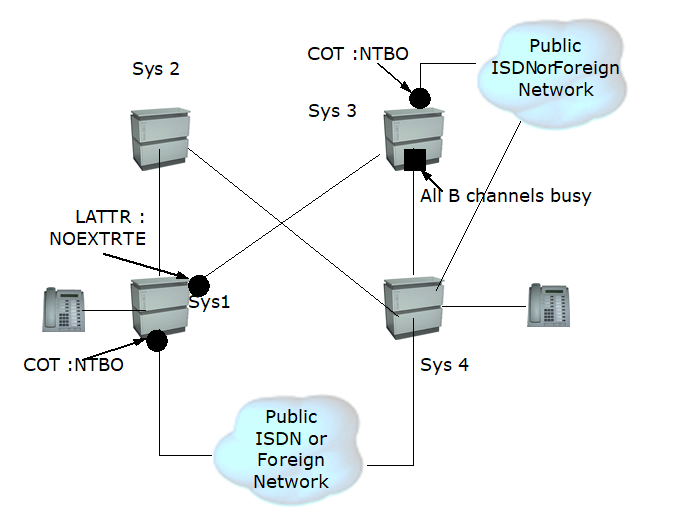

Figure 46. External Rerouting Disabled

When a system wants to decide for itself if it is possible to route to a foreign network the LDAT attribute NOEXTRTE must be set in each specified element of the used routes.
In the example in Figure 48 a call is setup from system 1 to sys 4 and encounters congestion between system 3 and 4.The cot parameter NTBO is set in Public/Private route to the foreign network and normaly the call would reroute to this route from system3.
However system 1 wishes to use it's own connection to the external network (and then only if the route via system 2 is congested)and marks the outgoing setup message with the attribute No External Rerouting set by:
ADD-LDAT:LROUTE=xx,LSVC=ALL,TGRP=xx,ODR=xx,LAUTH=xx,
LATTR=NOEXTRTE;
