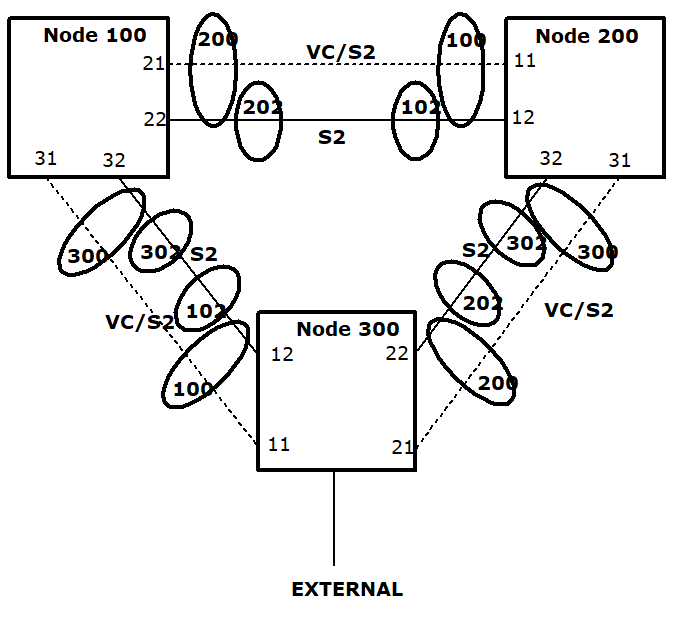

The following example shows a OpenScape 4000 network with 3 nodes, connected with a S2 link. The S2 B-channels are partial used by Voice Compression for voice connections only. The other S2 B-channels will be used for data and analog FAX/MODEM connections. If no more compressed B-channels are available, the uncompressed B-channels can be used for voice too.

From Node 100 to 200:

ADD-RICHT:MODE=CD,CD=00200,LRTE=200,SVC=VCE,
TGRP1=21&22,CPS=0,DESTNO=21;

ADD-RICHT:MODE=CD,CD=00200,SVC=DTE,TGRP1=22,CPS=0;

ADD-LDAT:LROUTE=200,LSVC=VCE,LVAL=1,ODR=1,LAUTH=8,
TGRP=21,LATTR=VOICO;

ADD-LDAT:LROUTE=200,LSVC=VCE,LVAL=2,ODR=1,LAUTH=1,TGRP=22;

ADD-LDAT:LROUTE=200,LSVC=DTE,LVAL=1,ODR=1,LAUTH=1,TGRP=22;

From Node 100 to 300:

ADD-RICHT:MODE=CD,CD=00300,LRTE=300,SVC=VCE,TGRP1=31&32,
CPS=0,DESTNO=31;

ADD-RICHT:MODE=CD,CD=00300,SVC=DTE,TGRP1=32,CPS=0;

ADD-LDAT:LROUTE=300,LSVC=VCE,LVAL=1,ODR=1,LAUTH=8,TGRP=31,
LATTR=VOICO;

ADD-LDAT:LROUTE=300,LSVC=VCE,LVAL=2,ODR=1,LAUTH=1,TGRP=32;

ADD-LDAT:LROUTE=300,LSVC=DTE,LVAL=1,ODR=1,LAUTH=1,TGRP=32;

From Node 200 to 100:

ADD-RICHT:MODE=CD,CD=00100,LRTE=100,SVC=VCE,TGRP1=11&12,
CPS=0,DESTNO=21;

ADD-RICHT:MODE=CD,CD=00100,SVC=DTE,TGRP1=22,CPS=0;

ADD-LDAT:LROUTE=100,LSVC=VCE,LVAL=1,ODR=1,LAUTH=8,
TGRP=21,LATTR=VOICO;

ADD-LDAT:LROUTE=100,LSVC=VCE,LVAL=2,ODR=1,LAUTH=1,TGRP=22;

ADD-LDAT:LROUTE=100,LSVC=DTE,LVAL=1,ODR=1,LAUTH=1,TGRP=22;

From Node 200 to 300:

ADD-RICHT:MODE=CD,CD=00300,LRTE=300,SVC=VCE,TGRP1=31&32,
CPS=0,DESTNO=31;

ADD-RICHT:MODE=CD,CD=00300,SVC=DTE,TGRP1=32,CPS=0;

ADD-LDAT:LROUTE=300,LSVC=VCE,LVAL=1,ODR=1,LAUTH=8,
TGRP=31,LATTR=VOICO;

ADD-LDAT:LROUTE=300,LSVC=VCE,LVAL=2,ODR=1,LAUTH=1,TGRP=32;

ADD-LDAT:LROUTE=300,LSVC=DTE,LVAL=1,ODR=1,LAUTH=1,TGRP=32;

From Node 300 to 100:

ADD-RICHT:MODE=CD,CD=00100,LRTE=100,SVC=VCE,TGRP1=11&12,
CPS=0,DESTNO=11;

ADD-RICHT:MODE=CD,CD=00100,SVC=DTE,TGRP1=22,CPS=0;

ADD-LDAT:LROUTE=100,LSVC=VCE,LVAL=1,ODR=1,LAUTH=8,TGRP=21,
LATTR=VOICO;

ADD-LDAT:LROUTE=100,LSVC=VCE,LVAL=2,ODR=1,LAUTH=1,TGRP=22;

ADD-LDAT:LROUTE=100,LSVC=DTE,LVAL=1,ODR=1,LAUTH=1,TGRP=22;

From Node 300 to 200:

ADD-RICHT:MODE=CD,CD=00200,LRTE=200,SVC=VCE,TGRP1=21&22,CPS=0,
DESTNO=21;

ADD-RICHT:MODE=CD,CD=00200,SVC=DTE,TGRP1=22,CPS=0;

ADD-LDAT:LROUTE=200,LSVC=VCE,LVAL=1,ODR=1,LAUTH=8,TGRP=21,
LATTR=VOICO;

ADD-LDAT:LROUTE=200,LSVC=VCE,LVAL=2,ODR=1,LAUTH=1,TGRP=22;

ADD-LDAT:LROUTE=200,LSVC=DTE,LVAL=1,ODR=1,LAUTH=1,TGRP=22;
