10.11.5.5.3. Generation (Examples for US)
The standard dial codes as understood by CO in US (according to North
American Number Plan) are:
|
For caller ID blocking:
|
*67 (Usage with DTMF trunks)
|
|
1167 (Usage with DP trunks)
|
|
|
For caller ID unblocking:
|
*82 (Usage with DTMF trunks)
|
|
1182 (Usage with DP trunks)
|
- Supplement COP with NAAT (for analog circuits):
Configuration Management --> System Data --> Trunk --> Class of Parameter, enter COP number and Search. Select NAAT in the parameter tab and save.
Set parameter NAAT using AMO COP as follows:CHANGE-COP:COPNO=<copnumber>,PAR=NAAT;
- Change circuit at 1-1-55-0, so that none of the above-mentioned standard access codes
are
sent:

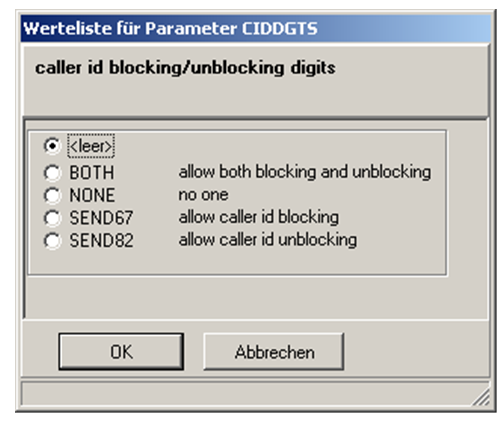

Configuration Management --> System Data --> Trunk --> Trunk, enter PEN and Search. Select the value NONE in the Analog Extensions tab in the Caller ID Blocking/Unblocking Digits selection window and save.Set parameter CIDDGTS using AMO TACSU as follows:
CHANGE-TACSU:PEN=1-1-55-0,CIDDGTS=NONE;
- Change circuit at 1-1-55-0, so that a called party number is prefixed by this standard
code for display suppression off in the case of non-confidential subscribers:
Configuration Management --> System Data --> Trunk --> Trunk, enter PEN and Search. Select the value SEND82 in the Analog Extensions tab in the Caller ID Blocking/Unblocking Digits selection window and save.Set parameter CIDDGTS using AMO TACSU as follows:
CHANGE-TACSU:PEN=1-1-55-0,CIDDGTS=SEND82;
- Change circuit at 1-1-55-0, so that a called party number is prefixed by this standard
access code for display suppression on in the case of confidential subscribers:
Configuration Management --> System Data --> Trunk --> Trunk, enter PEN and Search. Select the value SEND67 in the Analog Extensions tab in the Caller ID Blocking/Unblocking Digits selection window and save.Set parameter CIDDGTS using AMO TACSU as follows:
CHANGE-TACSU:PEN=1-1-55-0,CIDDGTS=SEND67;
- Change circuit at 1-1-55-0, so that the above-mentioned standard access codes are
sent,
depending on request:
Configuration Management --> System Data --> Trunk --> Trunk, enter PEN and save. Select the value BOTH in the Analog Extension tab in the Caller ID Blocking/Unblocking Digits selection window and save.Set parameter CIDDGTS using AMO TACSU as follows:
CHANGE-TACSU:PEN=1-1-55-0,CIDDGTS=BOTH;
