10.11.1. Feature Description
The calling party's
name and station number are displayed at the called party's station
or attendant console either directly or indirectly in the following cases:
- Internal / external call (external in the case of ISDN),
- Switching traffic,
- Callback (particularly callback-on-no-answer in mailbox),
- Call pickup (call waiting, call pickup group), CF / CFNA, server traffic and connection to paging equipment.
- Attendant console - hold menu
IMPORTANT:
The calling and called parties in the description below
can be extensions or attendant consoles.

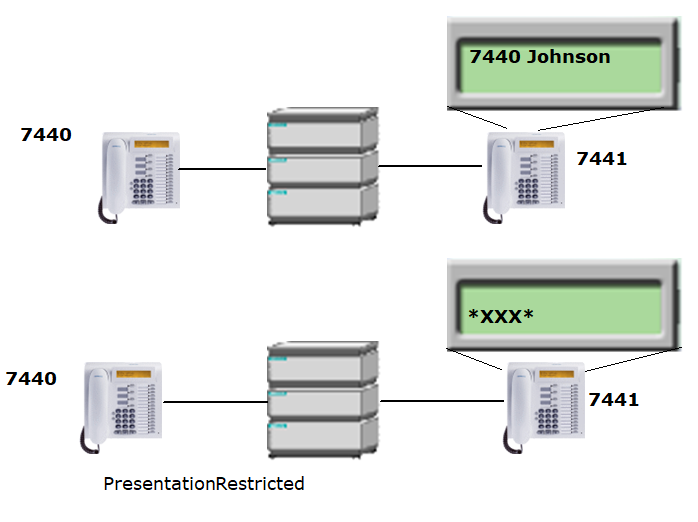

It is possible to suppress the display of the calling party's
name and station number at the called party's station for individual
calls and for specific systems, circuits, and users.
With display suppression you must decide whether the line is a "normal
line" or a "confidential line".
|
"Normal line":
|
The station number is passed on and displayed
at the called party's station or attendant console.
|
|
"Confidential line":
|
Station Number display at the called party's
station is always suppressed.
In this case, the text string to
appear on the display of the called party's station can be established
using a central parameter (applies to all called parties in the system).
|
You can administer the confidential line for users.
 |
Configuration Management --> Line -->
Station, enter station number and Search. Select the required value in
the Basic 1 tab under Display and save. Display=NO/YES/External Alternative
Number/not extern
|
 |
With the AMO SBCSU, AMO SCSU, AMO SSCSU, or
AMO-SDAT via the parameter
SSTNO=YES/NO/ONLYEXT/ONLYEX0; YES= This user's station number (name) is not displayed at the called
party's station (internally and externally);
NO = This user's station number is displayed at the called party's station
internally and externally);
ONLYEXT = Only a replacement number (as configured with AMO KNMAT) is
displayed at an external station instead of this user's station number;
ONLYEX0 = Neither this user's station number nor a replacement number is
displayed at an external station.
|
