10.25.1. Feature Description
Any terminals available on the open market can be connected to the
PBX. All DSS1 functions are guaranteed.
The features are activated
via the Supplementary Services instead of codes, provided the terminal
offers the required features.

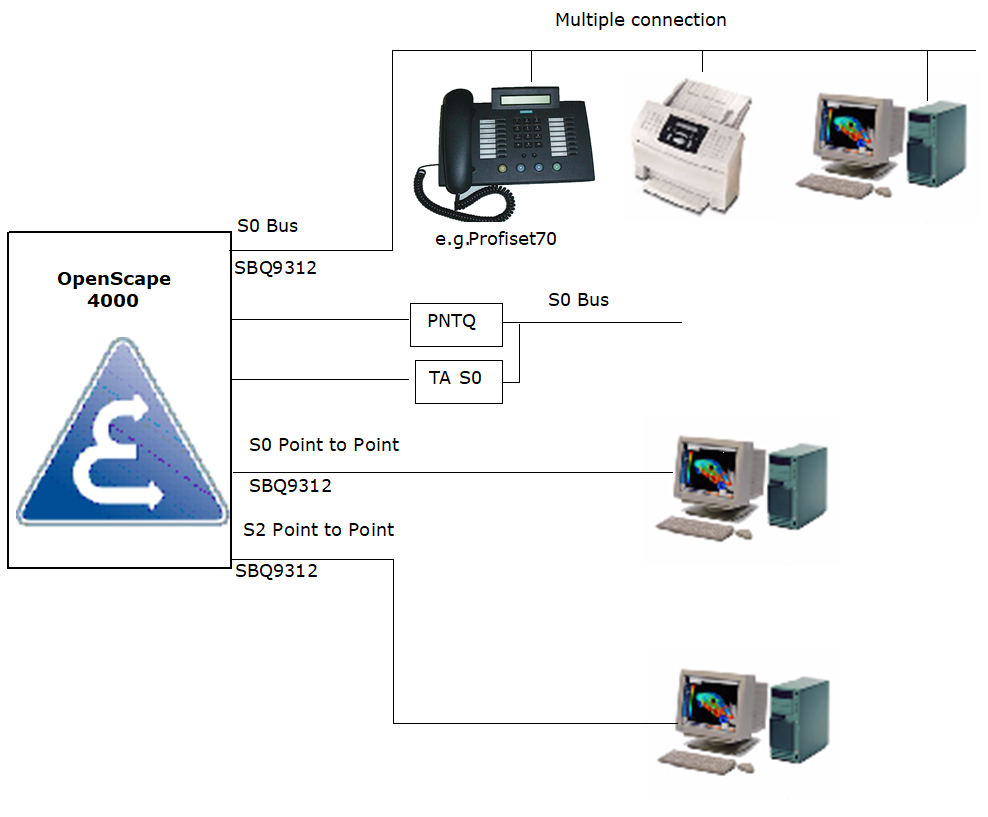

DSS1 stations in bus configuration must be configured identically
for all services. Generally, the option table 10 should be assigned
to the service protocols.
Supported Features
|
COS
|
DSS1 LM
|
Default
|
Comment
|
|
MSN
|
MSN
|
set
|
Multiple Subscriber Number; only with functional
stations
|
|
SPECAR
|
CLIP/COLP
|
only activated, if the configured station number
is not to be checked.
|
|
|
SUBCAL
|
SUB
|
using subaddressing, the station number of the
calling party is signalled at the called party.
|
|
|
SUBDB
|
SUB
|
using subaddressing, the own station number
is signalled at the called party
|
|
|
SUBMSN
|
SUB
|
using subaddressing, the MSN is signalled at
the called party
|
|
|
UUS1IM
|
UUS
|
set
|
authorization to use the UUS1 implicit service
|
|
UUS3
|
UUS
|
authorization to use the UUS3 service
|
|
|
CDRATN CDRSTN,CDRINT
|
AOC
|
With activated CDR the option table can be used
to set whether AOC-D and AOC-E or only AOC-E is released.
|
|
|
OVCAT
|
COLR
|
even if the station number of the called party
is secret it is displayed at the station.
|
|
|
COLR
|
set
|
the called party has the COS to temporarily
suppress the display of the own station number at the calling party (station
controlled)
|
|
|
CFU
CFNR
CFB
CD
|
"Immediate call forwarding of all incoming calls"
switches all incoming calls to a station defined by the user.
|
||
|
"Call forwarding on no response" switches an
incoming call to a station defined by the user, if the user does not
answer the call within a certain timer period.
|
|||
|
"Call forwarding on busy" switches an incoming
call to a station defined by the user, if the user is busy.
|
|||
|
"Call forwarding by the user" allows the optional
manual forwarding of a call. This feature is not supported by HiPatn
4000.
|
|||
|
ECT
|
"Call transfer" allows a user with a held and
an active connection to connect those two parties.
|
||
|
CW
|
CW
|
set
|
the called party has the COS for Call Waiting
|
|
HOLD
|
"Hold" allows a user to put a call on hold and
to resume the call later. During "Hold" the user can establish another
call or answer an incoming call.
|
||
|
CCBS
|
CCBS
|
set
|
a calling party meeting a busy station can activate
functional callback; IMPORTANT: Bit 5 of byte 3 must be set in the option
table.
|
|
TRACE
MCIDA
|
MCID
|
this COS must be set together with MCIDM to
allow the automatic registration of all incoming calls. Additional manual
registration is not possible.
|
|
|
automatic registration of nuisance callers;
they are calling users who release the line before the connection is
established.
|
|||
|
TP
|
TP
|
set
|
a user in active talk state can park a call
for a maximum of 2 minutes.
|
In order to be able to use the above Supplementary Services, the DSS1
terminal must be configured in such a way that it can handle more than
one signaling connection simultaneously (Class of service parameter:
"MULTRA"=Multitransaction).
