The element LIN is a private element and when networking with private protocols such as CorNet-NQ and segment length =1 the private elements are not transferred. Segmentation should be set to 8.

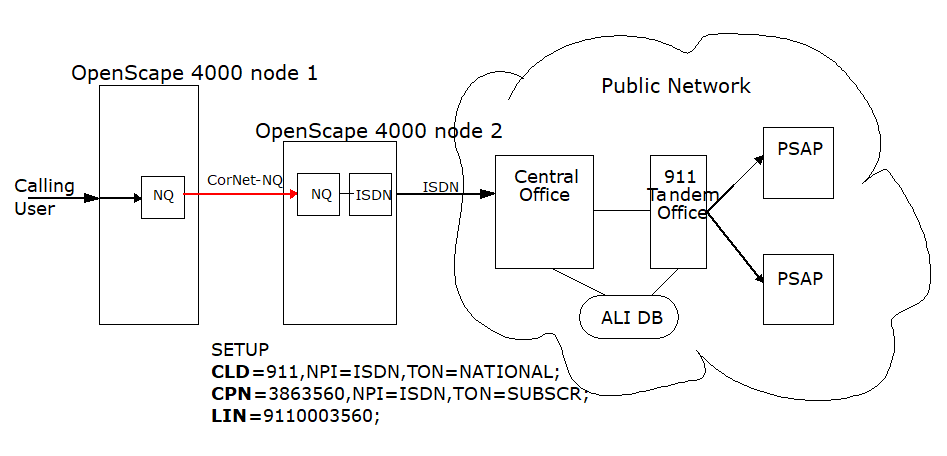

In the OpenScape 4000 node 2 a LIN must be configured on the port which leads to OpenScape 4000 node 1. The OpenScape 4000 node 2 won't transmit any LIN data of the OpenScape 4000 node 1, uses the LIN of this port for the E911 connection. In all systems EMCYRTT=YES must be set.
