10.31.2. Example: Configuration over two Nodes Previous topic Parent topic Child topic Next topic

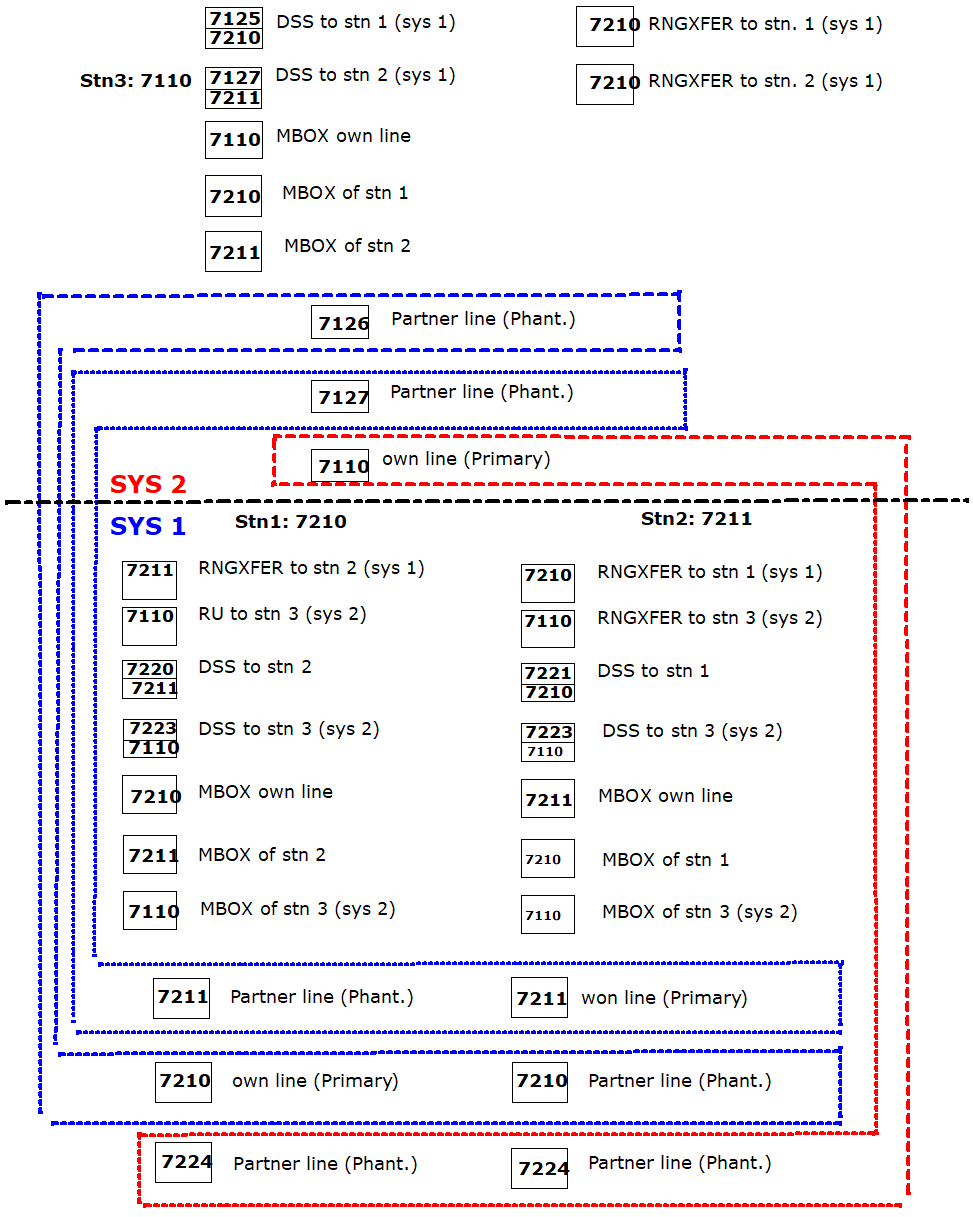

  • Stations 7210 and 7211 are configured in node 30-200
  • Station 7110 is configured in node 30-100.
  • These three stations form a team.
  • Node 200
    Configure KYPROG
    CHANGE-TAPRO:STD=127,DIGTYP=OPTIT19,KY01=MENU,KY02=SNR,
KY03=CALLOG,KY04=SPKR,KY05=RNGXFERL,KY06=MBLINE,KY07=LINE,
KY08=BUZZ,KY09=RNGXFERL,KY10=MBLINE,KY11=LINE,KY12=LINE,
KY13=RNGXFERL,KY14=MBLINE,KY15=LINE,KY16=LINE,KY17=RCUTOFF,
KY18=MONSNLTL,KY19=RLS,INFO="KEY - EXECUTIVE TI";
    Station
    ADD-SBCSU:STNO=7210,OPT=OPTI,CONN=DIR,PEN=1-2-31-6,
DVCFIG=OPTIP500,COS1=13,COS2=1,LCOSV1=5,LCOSV2=1,
LCOSD1=5,LCOSD2=1,DPLN=0,ITR=0,REP=0,STD=127,
TEXTSEL=GERMAN,CALLOG=ALL;

ADD-SBCSU:STNO=7211,OPT=OPTI,CONN=DIR,PEN=1-2-31-7,
DVCFIG=OPTIP500,COS1=13,COS2=1,LCOSV1=5,LCOSV2=1,
LCOSD1=5,LCOSD2=1,DPLN=0,ITR=0,REP=0,STD=127,
TEXTSEL=GERMAN,CALLOG=ALL;
    Phantom station
    ADD-SBCSU:STNO=7220&&7224,OPT=OPTI,CONN=DIR,
DVCFIG=OPTIP500,COS1=13,COS2=1,LCOSV1=5,LCOSV2=1,
LCOSD1=5,LCOSD2=1,STD=127, INS=SIGNOFF;
    Configure KEY
    • primary
      ADD-KCSU:STNO=7210,TYPE=PRIM,PRIMKEY=5,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7211,TYPE=PRIM,PRIMKEY=5,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7220,TYPE=PRIM,PRIMKEY=5,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7221,TYPE=PRIM,PRIMKEY=5,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7222,TYPE=PRIM,PRIMKEY=5,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7223,TYPE=PRIM,PRIMKEY=5,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7224,TYPE=PRIM,PRIMKEY=5,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;
    • secondary
      EINR-KCSU:TLNNU=7210,TYP=SEK,TASNU=11,TLNNUSEK=7211,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;

EINR-KCSU:TLNNU=7210,TYP=SEK,TASNU=15,TLNNUSEK=7224,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;

EINR-KCSU:TLNNU=7211,TYP=SEK,TASNU=11,TLNNUSEK=7210,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;

EINR-KCSU:TLNNU=7211,TYP=SEK,TASNU=15,TLNNUSEK=7224,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;

EINR-KCSU:TLNNU=7210,TYP=SEK,TASNU=08,TLNNUSEK=7220,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;

EINR-KCSU:TLNNU=7210,TYP=SEK,TASNU=12,TLNNUSEK=7223,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;

EINR-KCSU:TLNNU=7211,TYP=SEK,TASNU=08,TLNNUSEK=7221,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;

EINR-KCSU:TLNNU=7211,TYP=SEK,TASNU=12,TLNNUSEK=7223,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;
    Release hotline
    CHANGE-FEASU:TYPE=A,CM=HOTRCL;
    Set up HOT destination
    ADD-HOTLN:TYPE=HOTDEST,HTLNIDX=1,DEST=7210;

ADD-HOTLN:TYPE=HOTDEST,HTLNIDX=2,DEST=7211;

ADD-HOTLN:TYPE=HOTDEST,HTLNIDX=3,DEST=7110;
    Set up HOT authorization
    CHANGE-COSSU:TYPE=COS,COS=1&13,AVCE=HOT;
    Set up hot index on station
    CHANGE-SDAT:STNO=7220,TYPE=DATA1,HOTIDX=2;

CHANGE-SDAT:STNO=7221,TYPE=DATA1,HOTIDX=1;

CHANGE-SDAT:STNO=7223,TYPE=DATA1,HOTIDX=3;
    Set up mailbox for trunk
    EINR-ZIELN:TLNNU=7210,TYP=BKLEITNG,TASNU=06,RNRBK=7210;

EINR-ZIELN:TLNNU=7210,TYP=BKLEITNG,TASNU=10,RNRBK=7220;

EINR-ZIELN:TLNNU=7210,TYP=BKLEITNG,TASNU=14,RNRBK=7110;

EINR-ZIELN:TLNNU=7211,TYP=BKLEITNG,TASNU=06,RNRBK=7211;

EINR-ZIELN:TLNNU=7211,TYP=BKLEITNG,TASNU=10,RNRBK=7210;

EINR-ZIELN:TLNNU=7211,TYP=BKLEITNG,TASNU=14,RNRBK=7110;
    Assign additional rights (RNGXFER, DSS, SNR and monitoring)
    CHANGE-SDAT:STNO=7210,TYPE=ATTRIBUT,
AATTR=SNRLINE&DSSLINE&RNGXFERL&MONSNLTL;

CHANGE-SDAT:STNO=7211,TYPE=ATTRIBUT,
AATTR=SNRLINE&DSSLINE&RNGXFERL&MONSNLTL;

CHANGE-SDAT:STNO=7220,TYPE=ATTRIBUT,
AATTR=DSSLINE&RNGXFERL&MONSNLTL;

CHANGE-SDAT:STNO=7221,TYPE=ATTRIBUT,
AATTR=DSSLINE&RNGXFERL&MITHOERL;

CHANGE-SDAT:STNO=7222,TYPE=ATTRIBUT,
AATTR=DSSLINE&RNGXFERL&MONSNLTL;

CHANGE-SDAT:STNO=7223,TYPE=ATTRIBUT,
AATTR=DSSLINE&RNGXFERL&MONSNLTL;

CHANGE-SDAT:STNO=7224,TYPE=ATTRIBUT,
AATTR=SNRLINE&DSSLINE&RNGXFERL&MONSNLTL;
    Set up RNGXFER on station
    EINR-ZIELN:TLNNU=7210,TYP=RULEITNG,TASNU=5,
RNRRU=7210,RUFUNKT=XXX;

EINR-ZIELN:TLNNU=7210,TYP=RULEITNG,TASNU=9,
RNRRU=7210,RUFUNKT=XXX;

EINR-ZIELN:TLNNU=7211,TYP=RULEITNG,TASNU=5,
RNRRU=7211,RUFUNKT=XXX;

EINR-ZIELN:TLNNU=7211,TYP=RULEITNG,TASNU=9,
RNRRU=7211,RUFUNKT=XXX;
  • Node 100
    Configure KYPROG
    CHANGE-TAPRO:STD=127,DIGTYP=OPTIT19,KY01=MENU,KY02=SNR,
KY03=CALLOG,KY04=SPKR,KY05=RNGXFERL,KY06=MBLINE,KY07=LINE,
KY08=BUZZ,KY09=RNGXFERL,KY10=MBLINE,KY11=LINE,KY12=LINE,
KY13=RNGXFERL,KY14=MBLINE,KY15=LINE,KY16=LINE,KY17=RCUTOFF,
KY18=MONSLNTL,KY19=RLS,INFO="KEY - EXECUTIVE TI";
    Configure station
    ADD-SBCSU:STNO=7110,OPT=OPTI,CONN=DIR,PEN=1-1-49-6,
DVCFIG=OPTIP500,COS1=13,COS2=1,LCOSV1=5,LCOSV2=1,LCOSD1=5,
LCOSD2=1,DPLN=0,ITR=0,REP=0,STD=127,TEXTSEL=GERMAN,CALLOG=ALL;
    Phantom station
    ADD-SBCSU:STNO=7125&&7288,OPT=OPTI,CONN=DIR,DVCFIG=OPTIP500,
COS1=13,COS2=1,LCOSV1=5,LCOSV2=1,LCOSD1=5,LCOSD2=1,STD=127,
INS=SIGNOFF;
    Configure KEY
    • primary
      ADD-KCSU:STNO=7110,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7125,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7126,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7127,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7128,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=ALER,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;
    • secondary
      EINR-KCSU:TLNNU=7110,TYP=SEK,TASNU=12,TLNNUSEK=7125,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;

EINR-KCSU:TLNNU=7110,TYP=SEK,TASNU=11,TLNNUSEK=7126,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;

EINR-KCSU:TLNNU=7110,TYP=SEK,TASNU=16,TLNNUSEK=7127,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;

EINR-KCSU:TLNNU=7110,TYP=SEK,TASNU=15,TLNNUSEK=7128,
RUFOP=JA,AUTOANT=NEIN,DRLEITNG=XX;
    Release hotline
    CHANGE-FEASU:TYPE=A,CM=HOTRCL;
    Set up HOT destination
    ADD-HOTLN:TYPE=HOTDEST,HTLNIDX=1,DEST=7210;

ADD-HOTLN:TYPE=HOTDEST,HTLNIDX=2,DEST=7211;
    Set up HOT authorization
    CHANGE-COSSU:TYPE=COS,COS=1&13,AVCE=HOT;
    Set up hot index on station
    CHANGE-SDAT:STNO=7125,TYPE=DATA1,HOTIDX=1;

CHANGE-SDAT:STNO=7127,TYPE=DATA1,HOTIDX=2;
    Set up mailbox for trunk
    EINR-ZIELN:TLNNU=7110,TYP=BKLEITNG,TASNU=06,
RNRBK=7110;
    Assign additional rights (RNGXFER, DSS, SNR and monitoring)
    CHANGE-SDAT:STNO=7110,TYPE=ATTRIBUT,
AATTR=SNRLINE&DSSLINE&RNGXFERL&MONSLNTL;

CHANGE-SDAT:STNO=7125,TYPE=ATTRIBUT,
AATTR=DSSLINE&RNGXFERL&MONSLNTL;

CHANGE-SDAT:STNO=7126,TYPE=ATTRIBUT,
AATTR=SNRLINE&DSSLINE&RNGXFERL&MONSLNTL;

CHANGE-SDAT:STNO=7127,TYPE=ATTRIBUT,
AATTR=SNRLINE&DSSLINE&RNGXFERL&MONSLNTL;

CHANGE-SDAT:STNO=7128,TYPE=ATTRIBUT,
AATTR=DSSLINE&RNGXFERL&MONSLNTL;
    Set up RNGXFER on station
    EINR-ZIELN:TLNNU=7110,TYP=RULEITNG,TASNU=5,
RNRRU=7210,RUFUNKT=XXX;

EINR-ZIELN:TLNNU=7226,TYP=RULEITNG,TASNU=9,
RNRRU=7210,RUFUNKT=XXX;

EINR-ZIELN:TLNNU=7227,TYP=RULEITNG,TASNU=5,
RNRRU=7211,RUFUNKT=XXX;
