10.5. Spreadsheets - IPDA Configuration
The following spreadsheets are designed to help you perform an IPDA
configuration. Each of the sheets has a configuration diagram and a blank
AMO template on one side, and the completed example from the Service
Manual on the other.
The following spreadsheets (with example) are available:
- Spreadsheet: Configuring the OpenScape 4000 LAN segment
- Spreadsheet: Configuring a “networked“ access point
- Spreadsheet: Configuring a “direct link“ access point
- Spreadsheet: Configuring HG 3500 as HG3570 in the OpenScape 4000 system

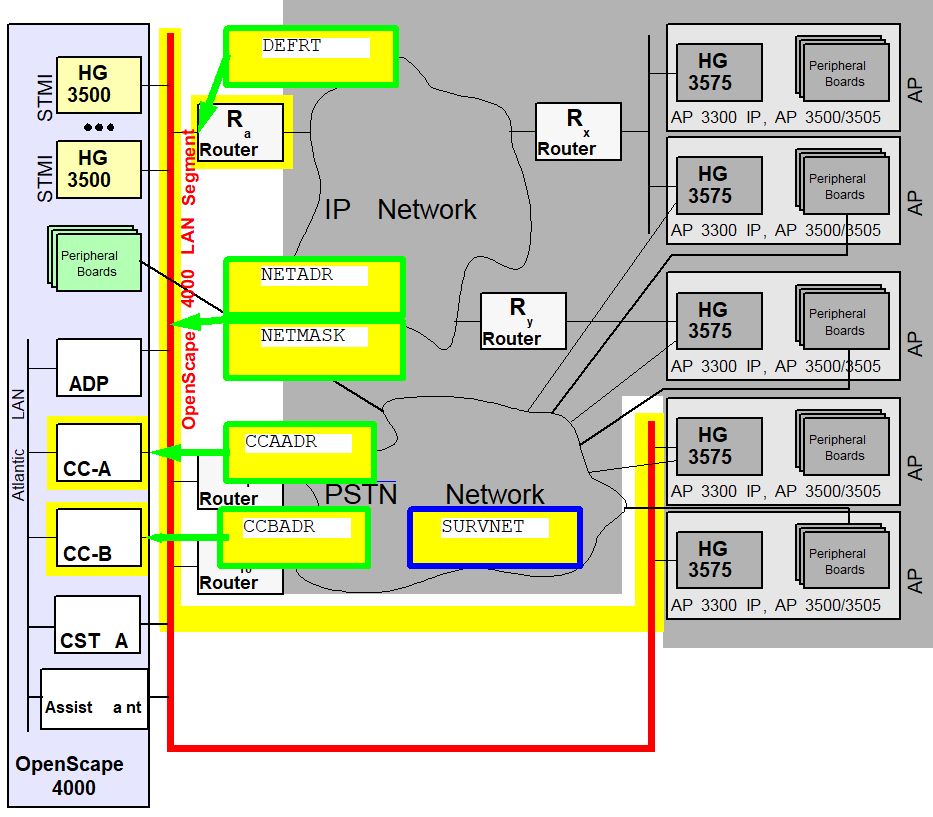

Spreadsheet: Configuring the OpenScape 4000 LAN segment
ADD-SIPCO: |
NETADDR= . . . , |
NETMASK= . . . , |
DEFRT= . . . , |
CCAADDR= . . . , |
|
CCBADDR= . . . , |
SURVNET= . . .0; |

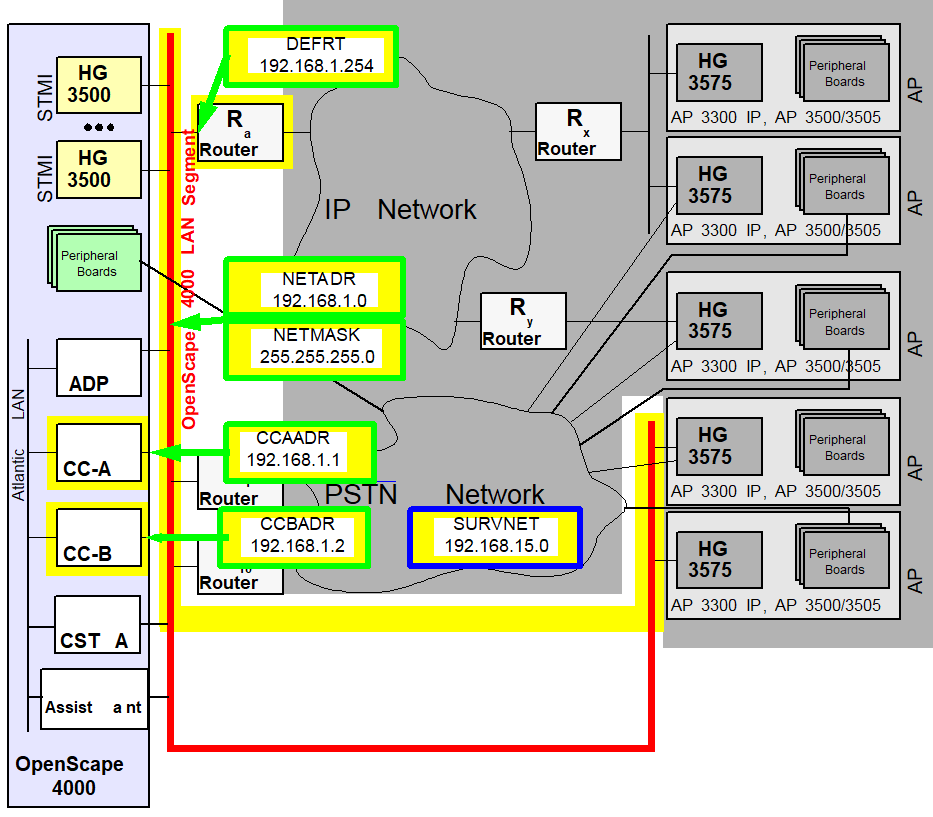

Sample Sheet: Configuring the OpenScape 4000 LAN segment
ADD-SIPCO: |
NETADDR=192.168.1.0, |
NETMASK=255.255.255.0, |
DEFRT=192.168.1.254, |
CCAADDR=192.168.1.1, |
|
CCBADDR=192.168.1.2, |
SURVNET=192.168.15.0; |

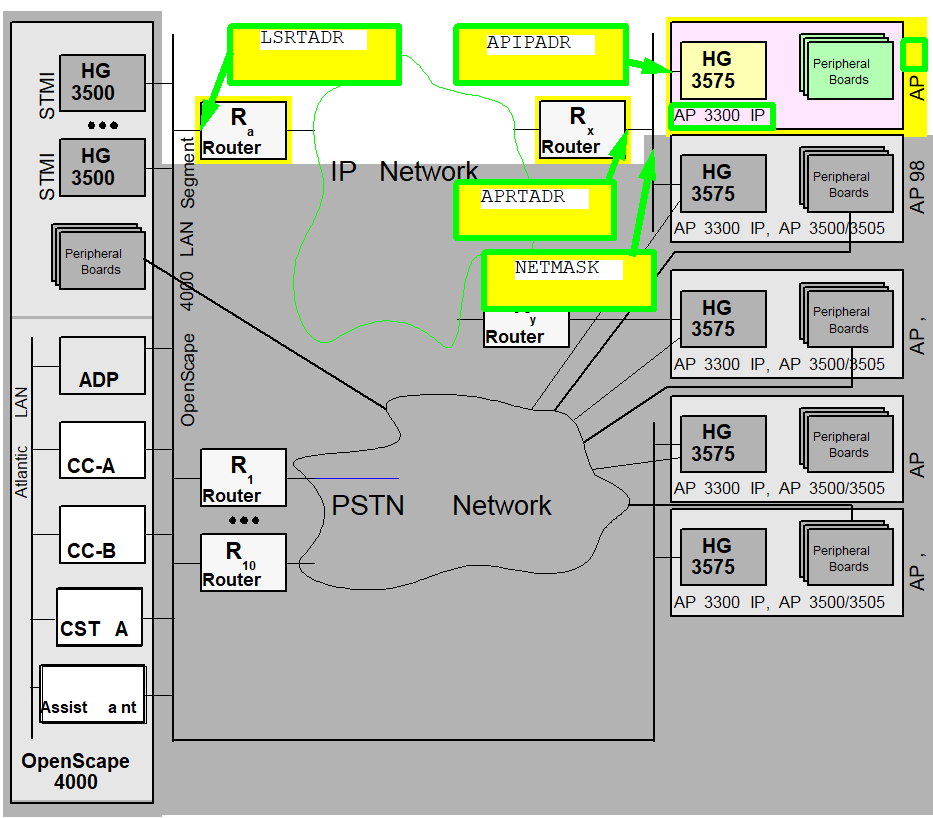

Spreadsheet: Configuring a “networked“ access point
|
ADD-UCSU:
|
UNIT=AP,
|
LTU= ,
|
|
LTPARTNO=Q23 -X ,
|
SRCGRP= ,
|
|
|
FRMTYPE= ,
|
CONNTYPE=APNW,
|
|
|
LSRTADDR= . . . ,
|
APRTADDR= . . . ,
|
|
|
LOCID= ,
|
LOCATION=“
“, |
|
|
PHONE= ,
|
FAX= ,
|
|
|
PLCHECK= ,
|
BCHLCNT= ,
|
|
|
CONVLAW= ;
|
||
|
ADD-APRT:
|
TYPE=APNET,
|
LTU= ,
|
|
APIPADDR= . . . ,
|
NETMASK= . . . ;
|

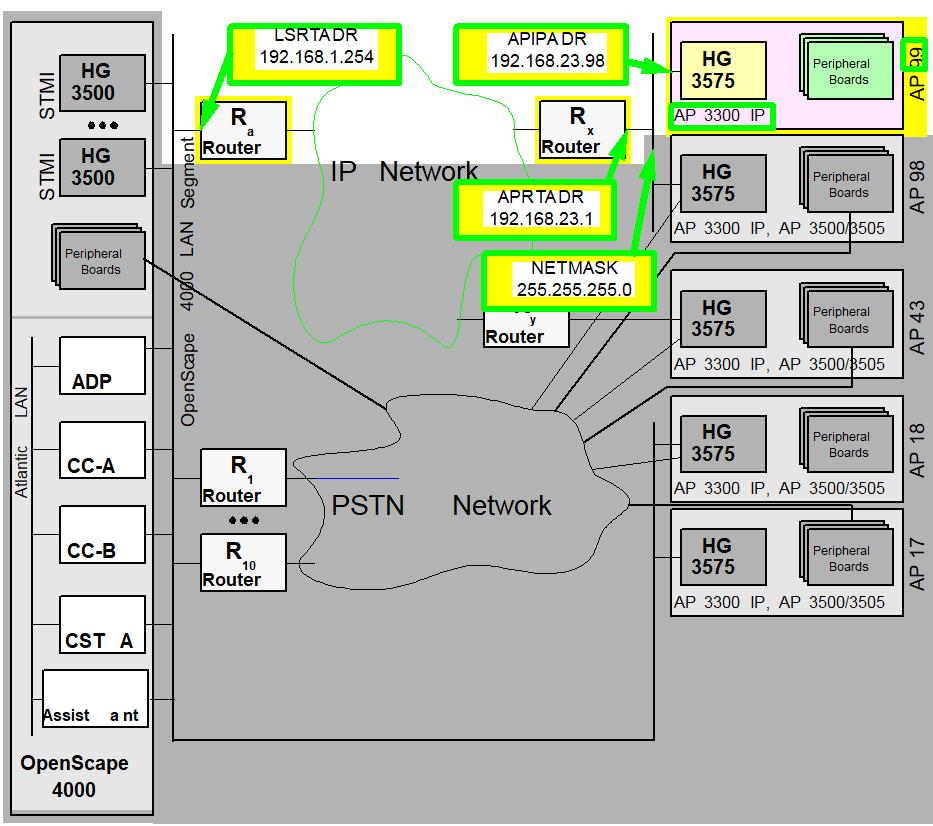

Sample Sheet: Configuring a “networked“ access point
|
ADD-UCSU:
|
UNIT=AP,
|
LTU=99,
|
|
LTPARTNO=Q2305-X35,
|
SRCGRP=2,
|
|
|
FRMTYPE=AP 9837009,
|
CONNTYPE=APNW,
|
|
|
LSRTADDR=192.168.1.254,
|
APRTADDR=192.168.23.1,
|
|
|
LOCID=2,
|
LOCATION=“BLN ROHRDAMM 85. GEB. 30-222“,
|
|
|
PHONE=03038612345,
|
FAX=03038654321,
|
|
|
PLCHECK=YES,
|
BCHLCNT=40,
|
|
|
CONVLAW=NO;
|
||
|
ADD-APRT:
|
TYPE=APNET,
|
LTU=99,
|
|
APIPADDR=192.168.23.99,
|
NETMASK=255.255.255.0;
|

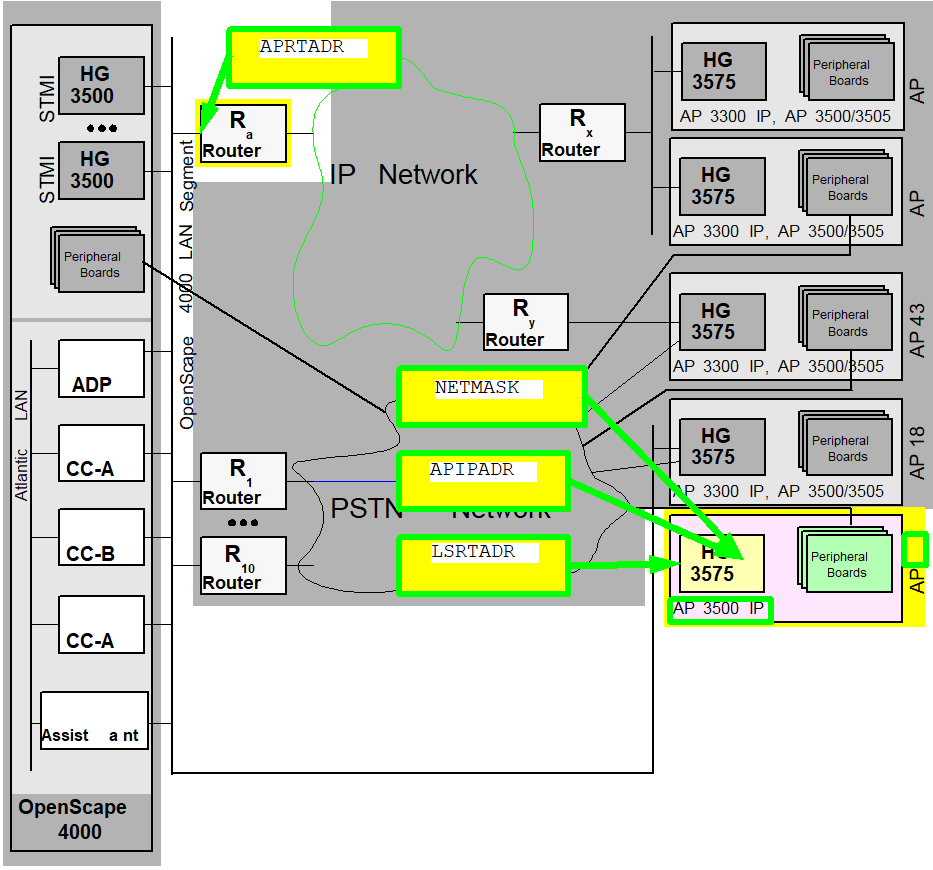

Spreadsheet: Configuring a “direct link“ access point
ADD-UCSU: |
UNIT=AP, |
LTU= , |
LTPARTNO=Q23 -X , |
SRCGRP= , |
|
FRMTYPE= , |
CONNTYPE=APDL, |
|
LSRTADDR= . . . , |
APRTADDR= . . . , |
|
LOCID= , |
LOCATION=“
“, |
|
PHONE= , |
FAX= , |
|
|
PLCHECK= ,
|
BCHLCNT= ,
|
|
|
CONVLAW= ;
|
||
ADD-APRT: |
TYPE=APNET, |
LTU= , |
APIPADDR= . . . , |
NETMASK= . . . ; |

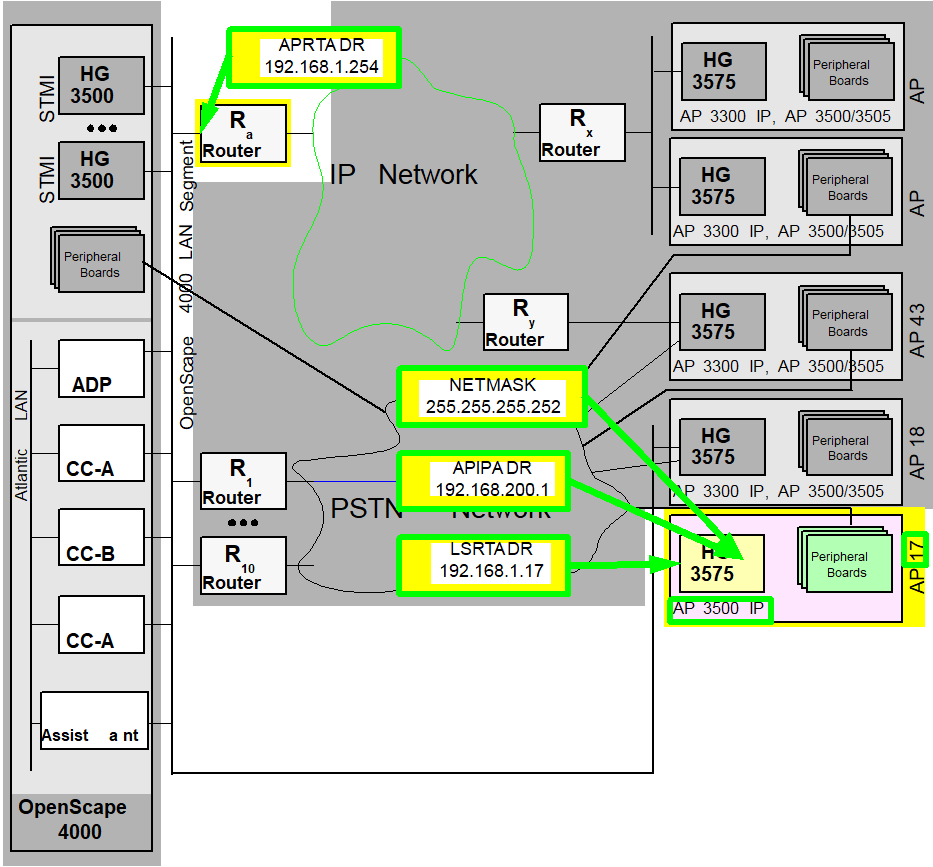

Sample Sheet: Configuring a “direct link“ access point
ADD-UCSU: |
UNIT=AP, |
LTU=17, |
LTPARTNO=Q2302-X10, |
SRCGRP=1, |
|
FRMTYPE=INCH19, |
CONNTYPE=APDL, |
|
LSRTADDR=192.168.1.17, |
APRTADDR=192.168.1.254, |
|
LOCID=1, |
LOCATION=“MCH MACHTLFINGERSTR.1 GEB.
7202-111“, |
|
PHONE=08972223456, |
FAX=08972265432, |
|
|
PLCHECK=YES,
|
BCHLCNT=20,
|
|
|
CONVLAW=NO;
|
||
ADD-APRT: |
TYPE=APNET, |
LTU=17, |
APIPADDR=192.168.200.1, |
NETMASK=255.255.255.252; |

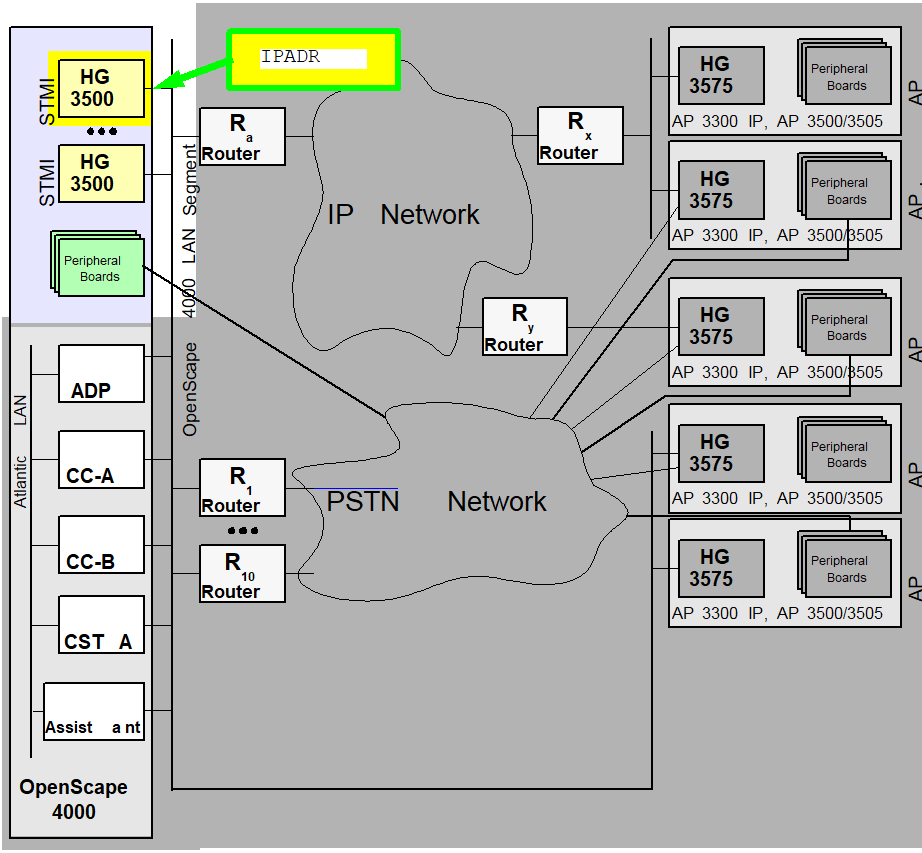

Spreadsheet: Configuring HG 3500 as HG3570 in the OpenScape 4000 system
ADD-BFDAT: |
FCTBLK= , |
FUNCTION=HG3570, |
BRDBCHL= ; |
||
CHANGE-BFDAT: |
CONFIG=CONT, |
FCTBLK= , |
FUNCTION= , |
BCHLCNT= ; |
|
CHANGE-BFDAT: |
CONFIG=OK, |
FCTBLK= , |
ANSW= ; |
||
ADD-BCSU: |
MTYPE=IPGW, |
LTU= , |
SLOT= , |
PARTNO=Q23 -X , |
|
FCTID= , |
FCTBLK= , |
|
IPADR= . . . , |
BCHL3570= ; |
|
CHANGE-BCSU: |
TYPE=HWYBDL, |
LTU= , |
SLOT= , |
PARTNO=Q23 -X , |
|
HWYBDL=A; |

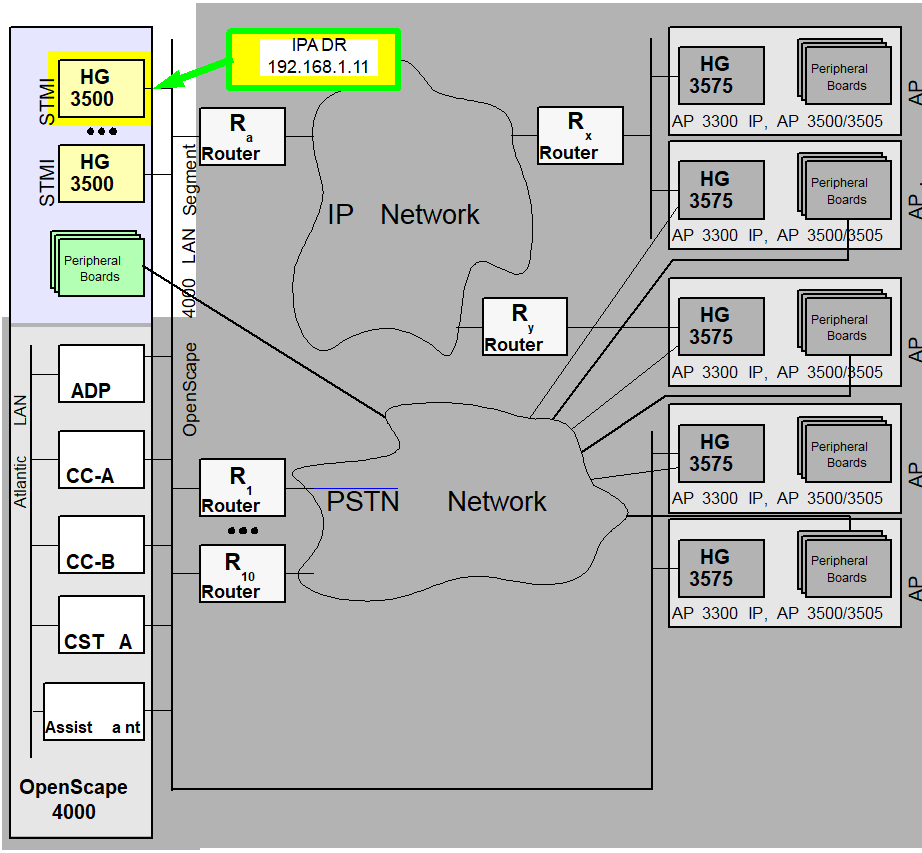

Sample Sheet: Configuring HG 3500 as HG3570 in the OpenScape 4000 system
ADD-BFDAT: |
FCTBLK=1, |
FUNCTION=HG3570, |
BRDBCHL=BCHL60&BCHL120; |
||
CHANGE-BFDAT: |
CONFIG=CONT, |
FCTBLK=1, |
FUNCTION=HG3570, |
BCHLCNT=40; |
|
CHANGE-BFDAT: |
CONFIG=OK, |
FCTBLK=1, |
ANSW=YES; |
||
ADD-BCSU: |
MTYPE=IPGW, |
LTU=5, |
SLOT=91, |
PARTNO=Q2316-X, |
|
FCTID=1, |
FCTBLK=1, |
|
IPADR=192.168.1.11, |
BCHL3570=40; |
|
CHANGE-BCSU: |
TYPE=HWYBDL, |
LTU=5, |
SLOT=91, |
PARTNO=Q2316-X, |
|
HWYBDL=A; |
