10.2.7.6.1. F8289 - Output of Statistics Data Previous topic Parent topic Child topic Next topic

IMPORTANT:
The displayed values are decimal values in kbit/s. The target is to have high values: displayed value >= short value => good displayed value < short value => bad

Round Trip Delay

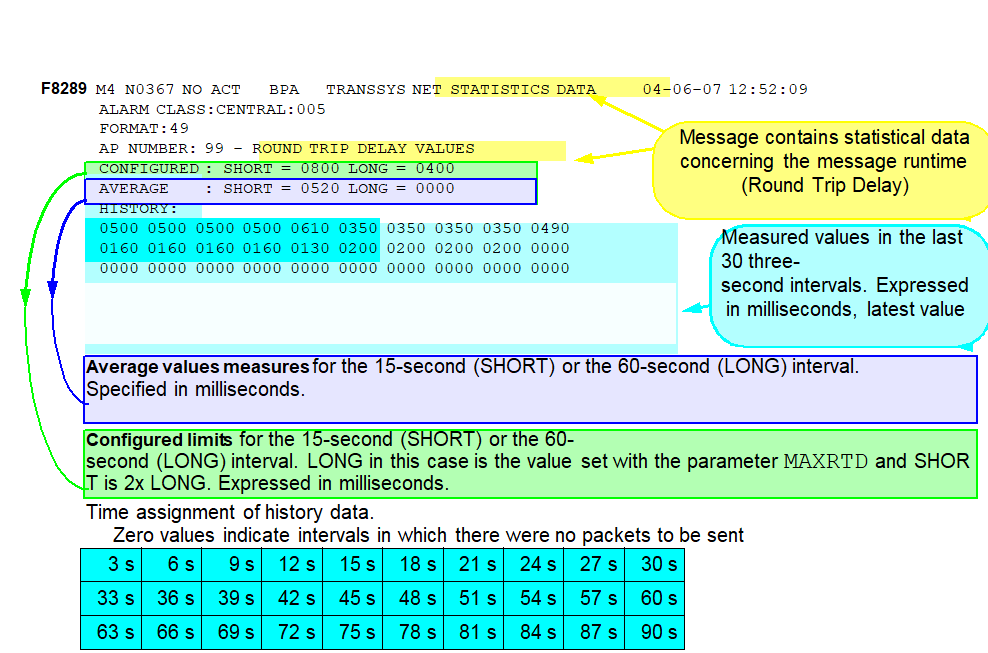

Figure 189. F8289 - Output of statistics data concerning message runtime (round trip delay)


Message Throughput

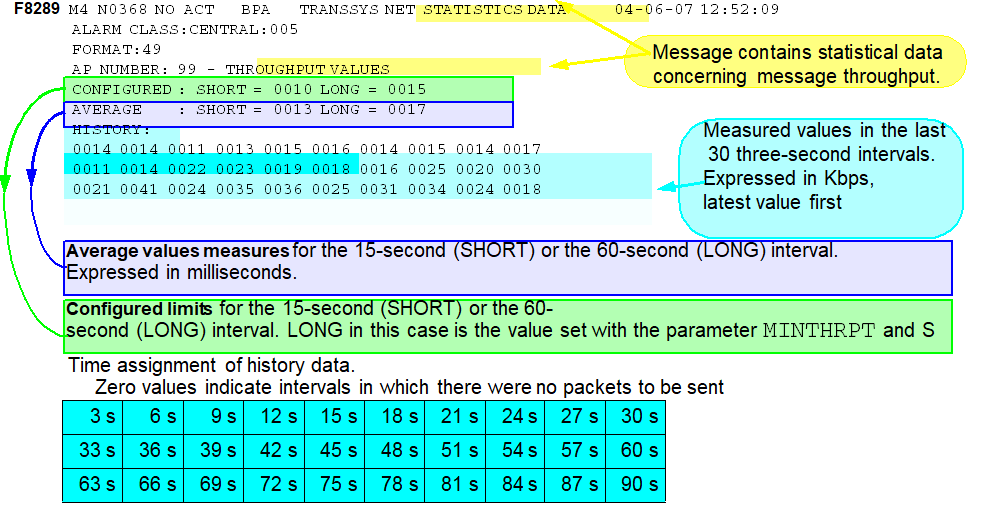

Figure 190. F8289 - Output of statistics data concerning message throughput
