10.2.7.6.2. F8290 - Net Weakness Begin Previous topic Parent topic Child topic Next topic

IMPORTANT:
The displayed values are decimal values in kbit/s. The target is to have high values: displayed value >= short value => good displayed value < short value => bad

Message Runtime Exceeded

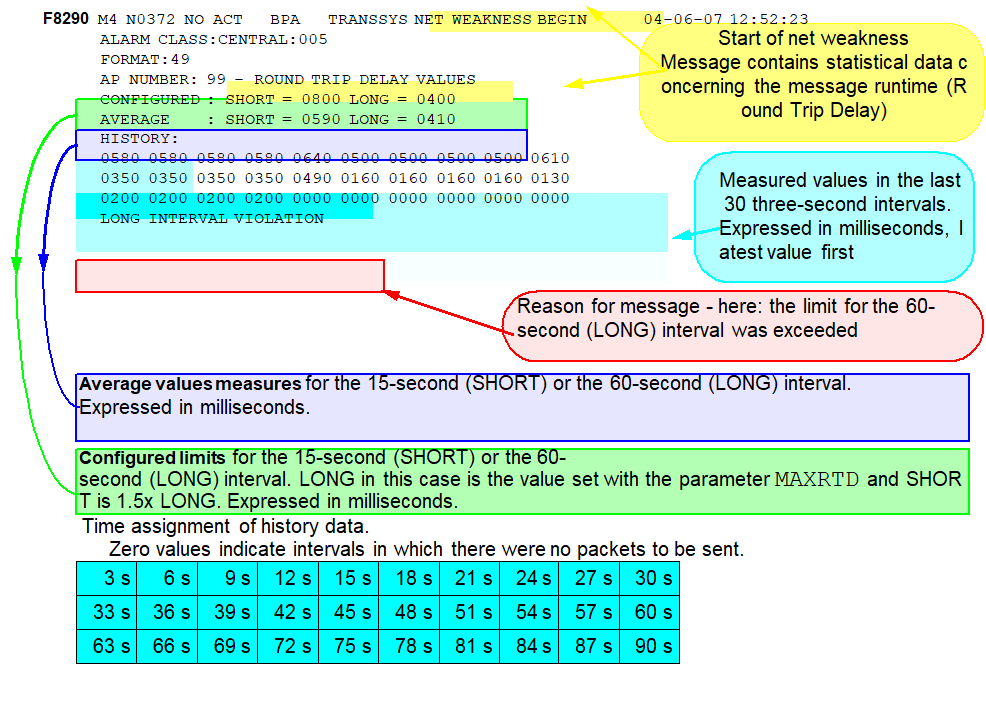

Figure 191. F8290 - Start of net weakness (statistical data concerning message runtime (round trip delay))


Message Throughput Undershot

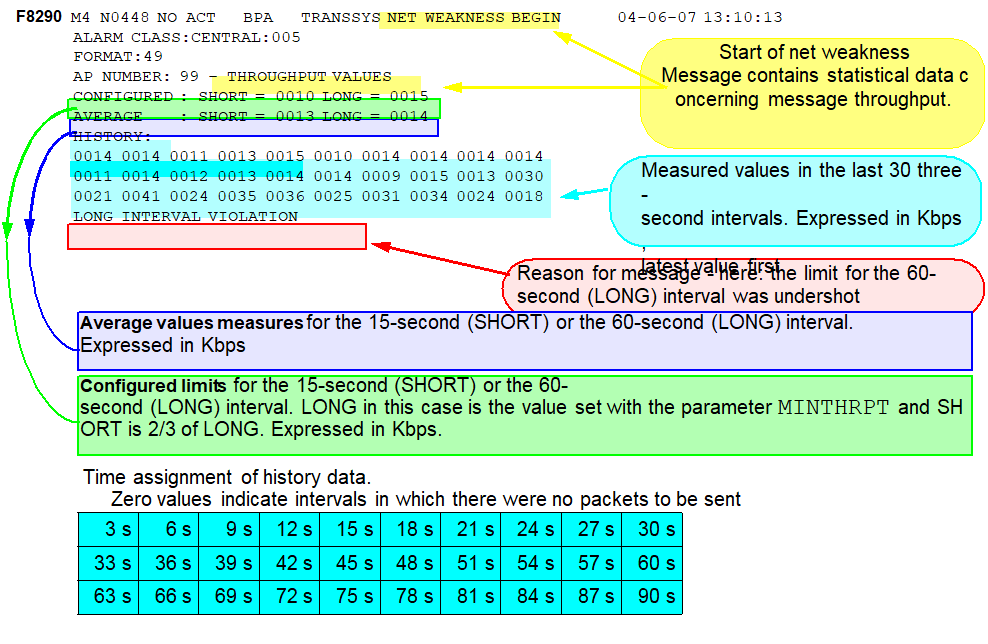

Figure 192. F8290 - Start of net weakness (statistical data concerning message throughput
