2.21.4.4. Diagnostics
Additional services that are normally inaccessible (ports blocked)
can be activated on the gateways HG 3500 and HG 3575 for fault diagnosis.
These are
|
SSH
|
Port 22
|
TCP
|
|
HTTPS/WBM:
|
Port 443
|
Web server for accessing diagnostic data
|
Logons with passwords can be configured to protect access for the
HG 3575. HG 3500 uses fixed values for this.

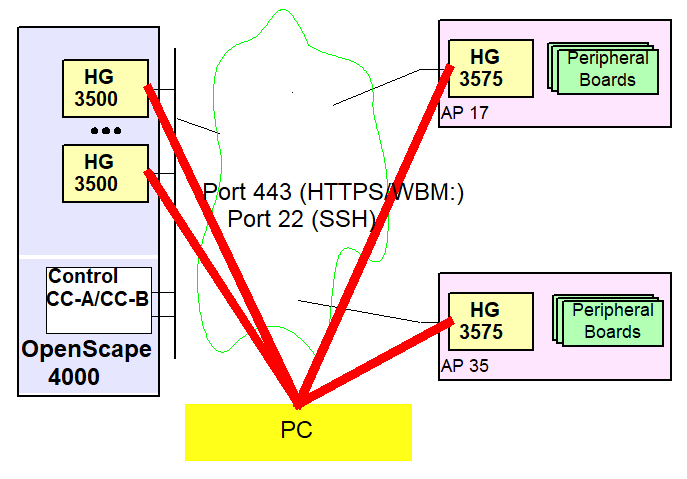

Figure 42. Example: Port usage for diagnosis
