2.21.4.3. SNMP Previous topic Parent topic Child topic Next topic

The gateways HG 3500 and HG 3575 come with an SNMP agent which provides read-only access to MIB-2 data and a gateway-specific MIB. Please refer to Chapter 19, “SNMP Support HG 3500 / HG 3575”. Read-only access is supported. No parameters may be changed. No traps are transferred.
The SNMP agent waits by default at port 161.

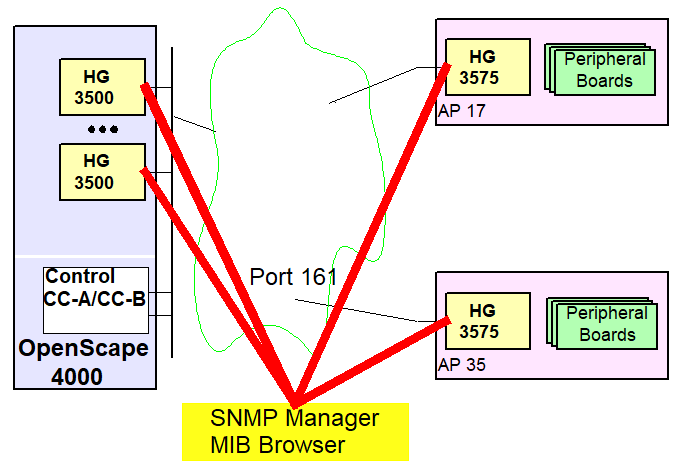

Figure 41. Example: Port usage for SNMP access
