3.3.3.6.1. Configuration on OpenScape 4000 Previous topic Parent topic Child topic Next topic

Overview

SoftGate 50 (SOCO) vIPDA shelf 50, direct link configuration with 120 B channels
ADD-UCSU:UNIT=AP,LTG=1,LTU=50,LTPARTNO=”Q2329-”,SRCGRP=50,FRMTYPE=SOCOAP,CONN­
TYPE=APDL,LSRTADDR=155.75.27.50,APRTADDR=155.75.27.1,LOCID=050,LOCATION="DIRECT
LINK, CPCI#2",PHONE=9727145968,PLCHECK=YES,BCHLCNT=120,CON­
VLAW=NO,TCLASS=0,ALARMNO=0,SOCOTYPE=SOCO50;
Slot 8, vSIP 04 trunk to Mediatrix 1204 (SIP <==> Telco analog trunk)
ADD-BCSU:MTYPE=IPGW,LTG=1,LTU=50,SLOT=8,PARTNO="Q2330-X ",FCTID=1,LWVAR=0,FCT­
BLK=59,BCHL3550=4,ALARMNO=0;
NCUI configuration, LTU 50
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=GLOBAL,PATTERN=255;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=IFDATA,VLAN=NO,TOSLAN=72,TOSMO­
DEM=80,VLANID=0,BITRATE=100MBFD;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=DSP,JITBUFD=60;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=SERVIF,LOGINTRM="TRM",LOGINPPP="PPP";
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=SIGQOS,BANDW=0,MAX­
RTD=0,MINTHRPT=0,SIGPTHSW=STD,QOSSTAT=NO;
CHANGE-
STMIB:MTYPE=NCUI2,LTU=50,TYPE=ASC,UDPPRTLO=29100,TOSPL=48,T38FAX=YES,RFCFMOIP=YE
S,RFCDTMF=YES,REDRFCTN=YES,PRIO=PRIO1,CODEC=G729,VAD=NO,RTP=20;
CHANGE-
STMIB:MTYPE=NCUI2,LTU=50,TYPE=ASC,UDPPRTLO=29100,T38FAX=YES,RFCFMOIP=YES,RFCDTMF
=YES,REDRFCTN=YES,PRIO=PRIO2,CODEC=G729A,VAD=NO,RTP=20;
CHANGE-
STMIB:MTYPE=NCUI2,LTU=50,TYPE=ASC,UDPPRTLO=29100,T38FAX=YES,RFCFMOIP=YES,RFCDTMF
=YES,REDRFCTN=YES,PRIO=PRIO3,CODEC=G711U,VAD=NO,RTP=20;
CHANGE-
STMIB:MTYPE=NCUI2,LTU=50,TYPE=ASC,UDPPRTLO=29100,T38FAX=YES,RFCFMOIP=YES,RFCDTMF
=YES,REDRFCTN=YES,PRIO=PRIO4,CODEC=G711A,VAD=NO,RTP=20;
CHANGE-
STMIB:MTYPE=NCUI2,LTU=50,TYPE=ASC,UDPPRTLO=29100,T38FAX=YES,RFCFMOIP=YES,RFCDTMF
=YES,REDRFCTN=YES,PRIO=PRIO5,CODEC=G729B,VAD=YES,RTP=20;
CHANGE-
STMIB:MTYPE=NCUI2,LTU=50,TYPE=ASC,UDPPRTLO=29100,T38FAX=YES,RFCFMOIP=YES,RFCDTMF
=YES,REDRFCTN=YES,PRIO=PRIO6,CODEC=G729AB,VAD=YES,RTP=20;
CHANGE-
STMIB:MTYPE=NCUI2,LTU=50,TYPE=ASC,UDPPRTLO=29100,T38FAX=YES,RFCFMOIP=YES,RFCDTMF
=YES,REDRFCTN=YES,PRIO=PRIO7,CODEC=NONE,VAD=NO,RTP=20;
REDRFCTN
Redundant transmission of the RFC2833 tones in accordance with RFC2198
RFCDTMF
Transmission of DTMF tones in accordance with RFC2833.
RFCFMOIP
Transmission of fax/modem tones in accordance with RFC2833
IMPORTANT:
The parameters mentioned above must have the same value in all IPDA gateways (STMI2/4/X (vSTMI) with regard to AMO CGWB & NCUI2+/4 (vNCUI) with regard to AMO STMIB). This avoids problems and a common function across all systems is achieved!
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=H323,Q931T1=50,Q931T2=500,GWNAME="HG3575-
2";
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=DMCDATA,DMCALLWD=NO,DMCCONN=0;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=SNMP,CS1="public";
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=MGNTDATA,MGNTPN=8000,BUSPN=443;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=WBMDATA,LOGINWBM="HP4K-DEVEL",ROLE=ENGR;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=WBMDATA,LOGINWBM="HP4K-SU",ROLE=SU;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=WBMDATA,LOGINWBM="HP4K-ADMIN",ROLE=ADMIN;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=WBMDATA,LOGINWBM="HP4K-READER",ROLE=READON­
LY;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=GWSECTOR,GWSECTNO=0;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=DLSDATA,DLSIPADR=192.0.2.40,DL­
SPORT=18443,DLSACPAS=NO;
CHANGE-STMIB:MTYPE=NCUI2,LTU=50,TYPE=SOCODATA,CLAIPADR=155.75.27.50;
vSIP trunk to Mediatrix 1204 (SIP <==> Telco analog trunk)
ADD-CGWB:LTU=50,SLOT=8,SMODE=NORMAL,IPADR=155.75.27.58,NETMASK=255.255.255.0;
CHANGE-
CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=GLOBIF,PATTERN=255,VLAN=NO,VLANID=0,DEFRT=155.
75.27.1,BITRATE=100MBFD,TRPRSIP=4,TRPRSIPQ=0,TRPRH323=0,TPRH323A=0,TLSP=4060,DN­
SIPADR=0.0.0.0;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=SERVIF,LOGINTRM="TRM";
CHANGE-
CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=ASC,UDPPRTLO=29100,TOSPL=48,TOSSIGNL=184,T38FA
X=YES,RFCFMOIP=YES,RFCDTMF=YES,REDRFCTN=YES,PRIO=PRIO1,CODEC=G729,VAD=NO,RTP=20;
REDRFCTN
Redundant transmission of the RFC2833 tones in accordance with RFC2198
RFCDTMF
Transmission of DTMF tones in accordance with RFC2833.
RFCFMOIP
Transmission of fax/modem tones in accordance with RFC2833
IMPORTANT:
The parameters mentioned above must have the same value in all IPDA gateways (STMI2/4 (vSTMI) with regard to AMO CGWB & NCUI2+/4 (vNCUI) with regard to AMO STMIB). This avoids problems and a common function across all systems is achieved!
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=ASC,PRIO=PRIO2,CO­
DEC=G729A,VAD=NO,RTP=20;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=ASC,PRIO=PRIO3,CO­
DEC=G711U,VAD=NO,RTP=20;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=ASC,PRIO=PRIO4,CO­
DEC=G711A,VAD=NO,RTP=20;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=ASC,PRIO=PRIO5,CO­
DEC=NONE,VAD=NO,RTP=20;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=ASC,PRIO=PRIO6,CO­
DEC=G729B,VAD=YES,RTP=20;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=ASC,PRIO=PRIO7,CO­
DEC=G729AB,VAD=YES,RTP=20;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=DSP,JITBUFD=60;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=MGNTDATA,MGNTPN=8000,BUSPN=443;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=DMCDATA,DMCCONN=4;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=WBMDATA,LOGINWBM="HP4K-DEVEL",ROLE=EN­
GR;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=WBMDATA,LOGINWBM="HP4K-SU",ROLE=SU;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=WBMDATA,LOGINWBM="HP4K-ADMIN",ROLE=AD­
MIN;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=WBMDATA,LOGINWBM="HP4K-READ­
ER",ROLE=READONLY;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=GWDATA,GWID1="PRIMARYRASMANAGERID";
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=H235DATA,SECSUBS=NO,SECTRNK=NO,GLO­
BID1="Gateway2003",TIMEWIN=100,GLOBPW=242-191-30-119-188-83-173-161-43-0-70-36-
218-74-169-221-78-102-174-170;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=SIPTRERH,GWAUTREQ=NO;
CHANGE-
CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=SIPTRSSA,SIPREG=NO,REGIP1=0.0.0.0,PORTTCP1=506
0,PORTTLS1=5061,REGTIME=120,REGIP2=0.0.0.0,PORTTCP2=5060,PORTTLS2=5061;
CHANGE-CGWB:MTYPE=CGW,LTU=50,SLOT=8,TYPE=DLSDATA,DLSIPADR=192.0.2.40,DL­
SPORT=18443,DLSACPAS=NO;
Mediatrix 1204 AMO configuration
ADD-BUEND:TGRP=58,NAME="MEDIATRIX_1204 ",NO=8,TRACENO=0,ACDTHRH=*,PRIONO=1,TD­
DRFLAG=ON,GDTRRULE=0,ACDPMGRP=0,CHARCON=NEUTRAL;
ADD-TDCSU:OPT=NEW,PEN=1-50-008-
0,COTNO=59,COPNO=59,DPLN=0,ITR=0,COS=59,LCOSV=1,LCOSD=1,CCT="",DESTNO=58,PROTVAR
=ECMAV2,SEGMENT=8,DEDSVC=NONE,TRTBL=GDTR,SIDANI=N,ATNTYP=CO,CBMATTR=NONE,TCHARG=
N,SUPPRESS=0,TRACOUNT=31,SATCOUNT=MANY,NNO=58,ALARMNO=2,FIDX=1,CARRIER=1,ZONE=EM
PTY,COTX=59,FWDX=1,CHIMAP=N,UUSCCX=16,UUSCCY=8,FNIDX=1,NWMUXTIM=10,SRCGRP=50,CLA
SSMRK=EC&G711&G729AOPT,TGRP=58,SRCHMODE=CIR,INS=Y,SECLEVEL=SECURE,DEV=HG3550CO,B
CHAN=1&&4,BCNEG=N,BCGR=1,LWPAR=2,LWPP=0,LWLT=0,LWPS=0,LWR1=0,LWR2=0,DMCALLWD=N;
ADD-
COT:COTNO=59,PAR=PRI&RCL&ANS&KNOR&CEBC&CBBN&CBFN&FWDN&FNAN&COTN&BSHT&BLOC&PROV&A
TRS&TSCS&ICZO&TRSC&CFOS&CFVA&PINR&AOCC&BCNE&NTON;
Set the Mediatrix proxy (ip 57) on OpenScape 4000 / SoftGate 50 / WBM SIP trunk (ip 58)

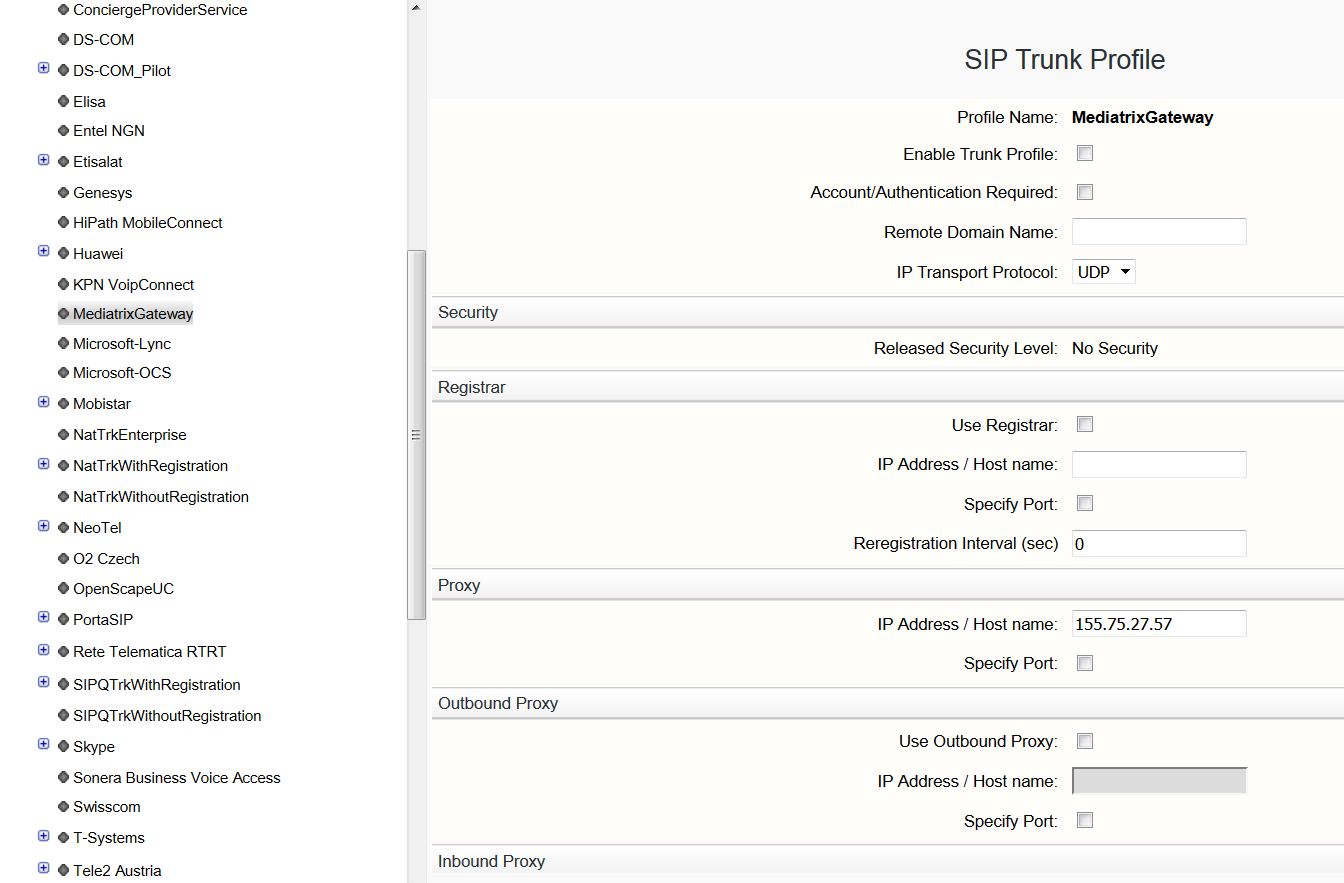

Figure 87. Mediatrix 1204 Gateway - WBM - SIP trunk profile

The MediatrixGateway folder should be activated, right mouse click > ACTIVATE ==> folder turns green.
LCR settings
AMO WABE - Access code for outbound call through Mediatrix 1204
ADD-WABE:CD=958,DAR=TIE,CHECK=N;
AMO LDPLN
ADD-LDPLN:LCRCONF=LCRPATT,DIPLNUM=0,LDP=958-W-Z,PROFIDX=58,LAUTH=1,PINDP=N;
W
second "external" dial tone
Z
any number and limited to total 22 digits, ended with timeout or # "pound" key by stations
LDP
If Telco is set to 10 digits then better LDP = 958-W-XXXXXXXXXX
AMO LPROF
ADD-LPROF:PROFNAME="SIP TRK SG 50-8",SRCGRP=1&25&50,LRTE=958,PROFIDX=58;
AMO LDAT - Attribute of CDR and send PUBNUM from station
ADD-LDAT:LROUTE=958,LSVC=ALL,LVAL=1,TGRP=58,ODR=959,LAUTH=1,CARRIER=1,ZONE=EMP­
TY,LATTR=WCHREG&PUBNUM,VCCYC=4;
AMO LODR - echo field 3 = Z from “958-W-Z”
ADD-LODR:ODR=959,CMD=ECHO,FIELD=3;
ADD-LODR:ODR=959,CMD=NPI,NPI=UNKNOWN,TON=UNKNOWN;
ADD-LODR:ODR=959,CMD=END;
ADD-LODR:ODR=959,INFO="SIP TRK SG 50-9";
AMO RICHT
ADD-RICHT:MODE=LRTENEW,LRTE=958,LSVC=ALL,NAME="MEDTRX1204 508",TGRP=58,DN­
NO=58,ROUTATT=YES,EMCYRTT=NO,PDNNO=0,CHARCON=NEUTRAL,CONFTONE=NO,RERINGRP=NO,NOP
RCFWD=NO,NITO=NO,CLNAMEDL=NO,FWDSWTCH=NO,LINFEMER=NO,NOINTRTE=NO;
