14.5.4.5. SG vHG direct connectivity (USEWANIF) Previous topic Parent topic Child topic Next topic

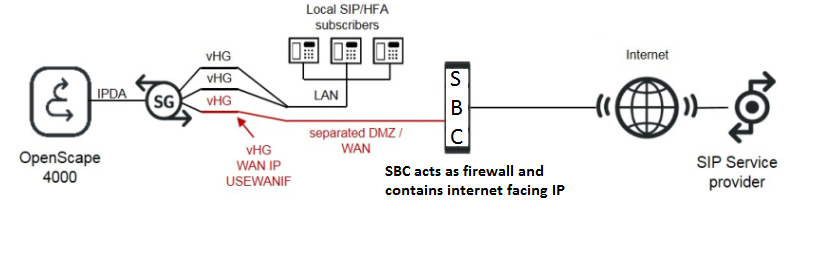

In some cases, the SSP provides its own SBC/Router and a dedicated interface and network address is preferred. This is done by activating USEWANIF in AMO CGWB.
The external SBC contains the Internet facing IP (and will often suffice instead for a firewall), thus no additional configuration is needed to standard SSP configuration.
SPE in the direction of SSP is controlled via TDCSU SECLEVEL. TLS signaling connection with payload encryption is possible if having the correct security certificates, profile configuration and SECLEVEL=SECURE.
