14.9.3.7. Define Trunk Configuration Previous topic Parent topic Child topic Next topic

The next step is to assign the OpenScape 4000 gateway to a trunk associated with a pool or a site as follows:

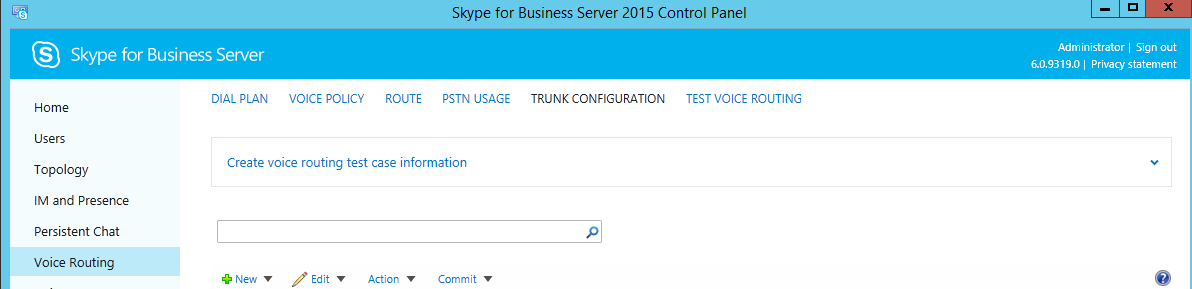

  1. On Skype for Business Server 2015 Control Panel click Voice Routing, and then click the Trunk Configuration tab.
  2. Click New, and depending on the scope of the policy you want to create, click Site Configuration or Pool Configuration.
  1. Select a pool or site for this trunk configuration.
  2. In the New Trunk Configuration dialog box, click OK.
  3. To commit your changes, click Commit, and then click Commit all.
INFO:

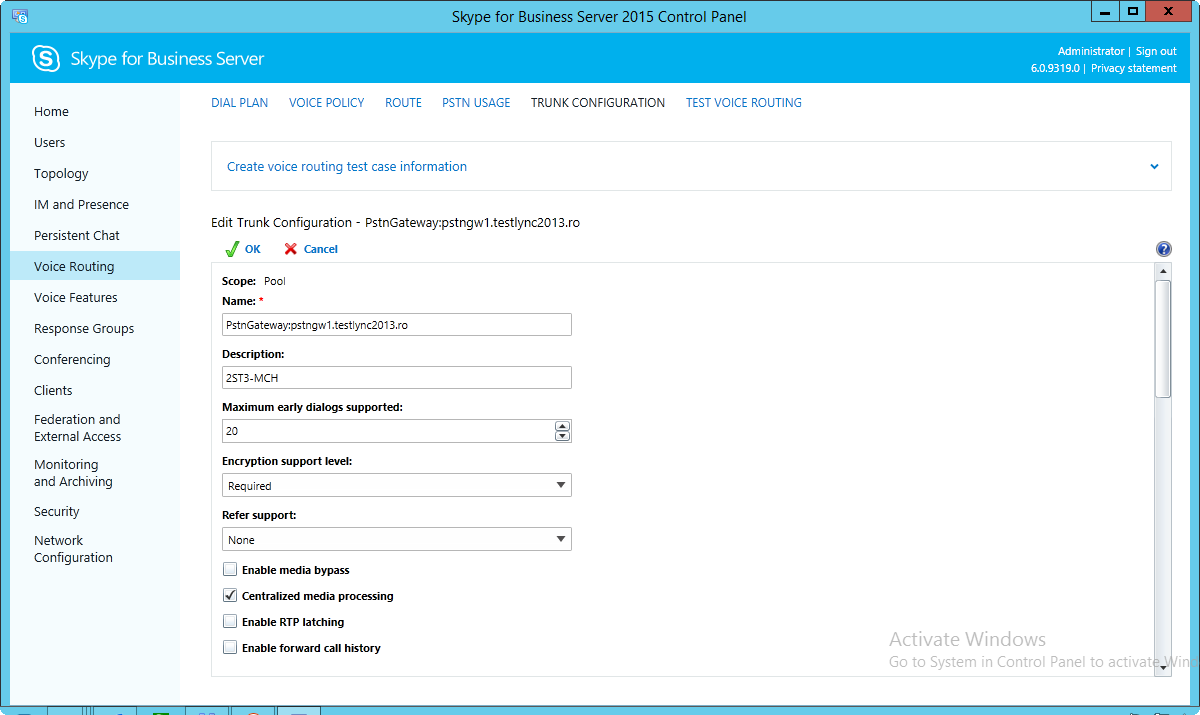

make sure that Enable Media bypass is disabled and Enable refer support is set to “None”.
  1. To enable encryption select Required on Encryption support level drop down.
  1. To commit your changes, click Commit, and then click Commit all.
