18.4.2.2. Creating a new SPE Certificate
Navigate in the OpenScape 4000 Assistant start page to Expert Mode
> Signaling and Payload Encryption > SPE Certificate. The SPE
Certificate dialog opens.
There are two cases which have to be distinguished:
- No SPE certificate exists.
-
If no SPE certificate is created yet, the dialog for creating a SPE certificate is displayed with empty fields.

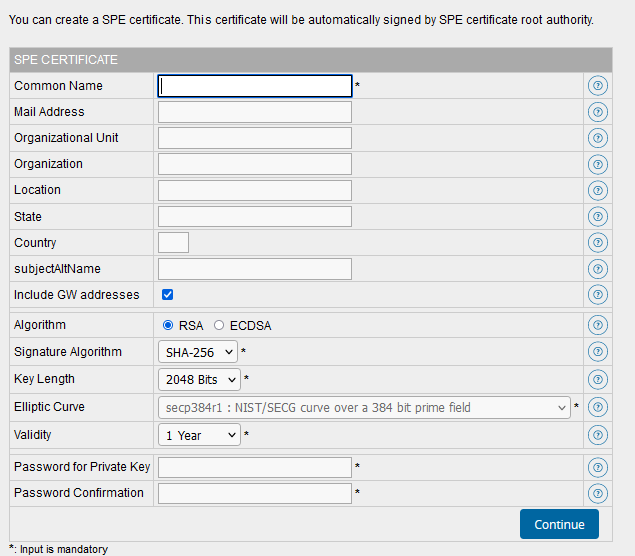

Figure 382. SPE certificate generation (no SPE certificate exists)
- A SPE certificate already exists
-
If a SPE certificate is already created, click the New SPE Certificate button for creating a new SPE certificate. A new dialog opens. The data of the existing SPE certificate are displayed in the entry fields and can modified accordingly for the new SPE certificate.
IMPORTANT:
If you create a new SPE certificate although a SPE certificate already exists for this server, the existing SPE certificate will be overwritten.Figure 383. SPE certificate generation with existing SPE certificate
Procedure
- Enter all required data. Mandatory fields are flagged with a red asterisk (*). The following characters are not allowed in the entry fields: " & < > ÷ as well as accented and special characters.
- To get additional context information related to the individual entry fields, click on the "?" icon to the right of each entry field. The context-specific information related to the respective field is displayed as a tooltip in the browser.

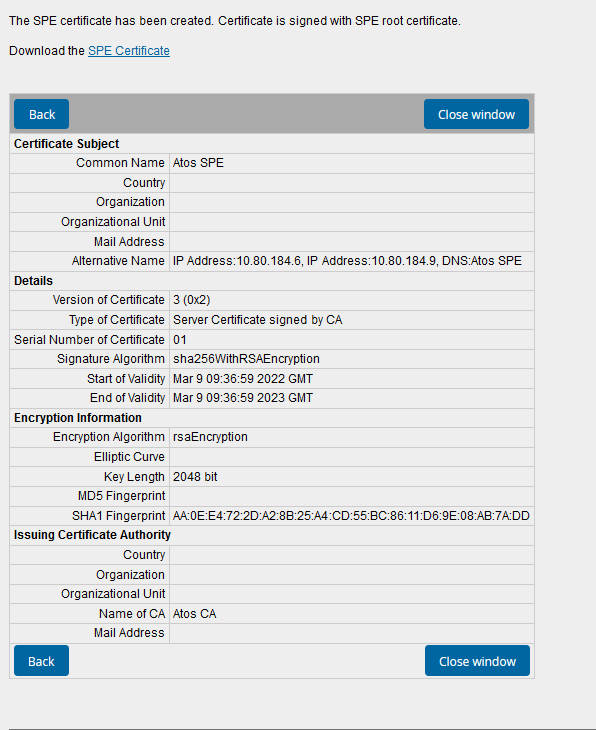

- Click on Continue. The SPE certificate will be generated. After the creation of the certificate it is displayed and can be downloaded via a link.
