9.5.1. Example 1: Two HFA subscribers in the same Host Previous topic Parent topic Child topic Next topic

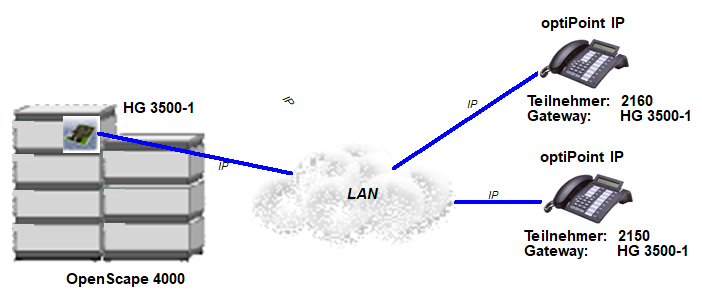

The subscriber 2150 shall get the right to be able to identify himself at the terminal of subscriber 2160. The subscriber 2160 shall not get any possibility of the identification. An incoming call for 2160 should be forwarded to subscriber 4444, if 2150 is using the phone of 2160.
ADD-DIMSU:TYPE=SYSTEM,CGW=1;
ADD-BFDAT:FCTBLK=1,FUNCTION=HG3530,BRDBCHL=BCHL60;
CHANGE-BFDAT:CONFIG=CONT,FCTBLK=1,FUNCTION=HG3530,LINECNT=30,BCHLCNT=30;
/* Configuration of 30 HG 3530 circuits with 30 b-channels
CHANGE-BFDAT:CONFIG=OK,FCTBLK=1,ANSW=YES;
ADD-BCSU:MTYPE=IPGW,LTG=1,LTU=3,SLOT=85,PARTNO=“Q2316-X“,FCTID=1,LWVAR=“0“,FCT­
BLK=1,ALARMNO=0;
ADD-CGWB:LTU=3,SLOT=85,SMODE=NORMAL,IPADR=192.168.1.85,NETMASK=255.255.255.0;
RESTART-BSSU:ADDRTYPE=PEN,LTU=3,SLOT=85;
ADD-SBCSU:STNO=2150,OPT=OPTI,CONN=IP2,PEN=1-3-85-0,DVCFIG=OPTIIP, ...;

ADD-SBCSU:STNO=2160,OPT=OPTI,CONN=IP2,PEN=1-3-85-1,DVCFIG=OPTIIP, ...
ADD-WABE:CD=*95,DAR=MHFALGON,CHECK=N;

ADD-WABE:CD=*96,DAR=MHFALGOF,CHECK=N;
ADD-PERSI:TYPE=STN,STNO=2150,NAME=“STEFAN*“,PIN1=“258861“,PININDIV=Y;

CHANGE-PERSI:TYPE=COPIN,COPIN=1,COTYPE=MOBILE, ...;
CHANGE-SDAT:STNO=2150,TYPE=ATTRIBUT,AATTR=MHFAHOME;

CHANGE-SDAT:STNO=2160,TYPE=ATTRIBUT,AATTR=MHFATBV;
CHANGE-FEASU:TYPE=A,CM=MOBHFA;
ADD-ZIEL:TYPE=FWD,SRCNO=2160,SI=VOICE,DESTNOF=4444,DTYPE=CFNR,ITYPE=GEN,CF­
VAR=SYSTEM;
REGENERATE-RICHT;
