9.5.2. Example 2: Two HFA subscriber at different systems Previous topic Parent topic Child topic Next topic

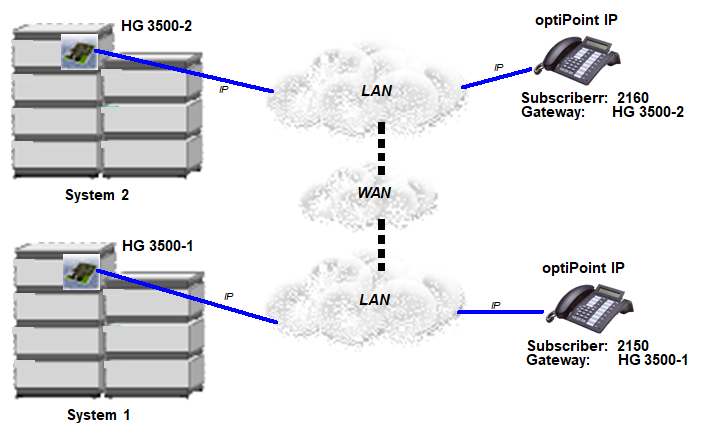

The two subscribers 2150 and 2160 shall get the rights to be able to identify themselves at the terminal of the other subscriber. The calls for 2160 should be forwarded to his mobile number 017544444444, if his phone is used as “Mobile HFA Logon”. The calls for 2150 should be forwarded to the subscriber 4444, if his phone is used as “Mobile HFA Logon”.

Generation of the System 1:

ADD-DIMSU:TYPE=SYSTEM,CGW=1;
ADD-BFDAT:FCTBLK=1,FUNCTION=HG3530,BRDBCHL=BCHL60;
CHANGE-BFDAT:CONFIG=CONT,FCTBLK=1,FUNCTION=HG3530,LINECNT=30,BCHLCNT=30; /* Con­
figuration of 30 HG 3530 circuits with 30 b-channels
CHANGE-BFDAT:CONFIG=OK,FCTBLK=1,ANSW=YES;
ADD-BCSU:MTYPE=IPGW,LTG=1,LTU=3,SLOT=85,PARTNO=“Q2316-X“,FCTID=1,LWVAR=“0“,FCT­
BLK=1,ALARMNO=0;
ADD-CGWB:LTU=3,SLOT=85,SMODE=NORMAL,IPADR=192.168.1.85,NETMASK=255.255.255.0;
RESTART-BSSU:ADRART=LAGE,LTU=3,EBT=85;
ADD-SBCSU:STNO=2150,OPT=OPTI,CONN=IP2,PEN=1-3-85-0,DVCFIG=OPTIIP,....;
ADD-WABE:CD=*95,DAR=MHFALGON,CHECK=N;

ADD-WABE:CD=*96,DAR=MHFALGOF,CHECK=N;
ADD-PERSI:TYPE=STN,STNO=2150,NAME=“OPTI IP 1*“,PIN1=“0512“,PININDIV=YES;

CHANGE-PERSI:TYPE=COPIN,COPIN=1,COTYPE=MOBILE,....;
CHANGE-SDAT:STNO=2150,TYPE=ATTRIBUT,AATTR=MHFAHOME;

CHANGE-SDAT:STNO=2150,TYPE=ATTRIBUT,AATTR=MHFATBV;
CHANGE-FEASU:TYPE=A,CM=MOBHFA;
ADD-ZIEL:TYPE=FWD,SRCNO=2150,SI=VCE,DESTNOF=4444,DTYPE=CFNR,ITYPE=GEN,CFVAR=SYS­
TEM;
REGENERATE-RICHT;

Generation of the system 2:

ADD-DIMSU:TYPE=SYSTEM,CGW=1;
ADD-BFDAT:FCTBLK=1,FUNCTION=HG3530,BRDBCHL=BCHL60;
CHANGE-BFDAT:CONFIG=CONT,FCTBLK=1,FUNCTION=HG3530,LINECNT=30,BCHLCNT=30; /* Con­
figuration of 30 HG 3530 circuits with 30 b-channels
CHANGE-BFDAT:CONFIG=OK,FCTBLK=1,ANSW=YES;
ADD-BCSU:MTYPE=IPGW,LTG=1,LTU=3,SLOT=85,PARTNO=“Q2316-X“,FCTID=1,LWVAR=“0“,FCT­
BLK=1,ALARMNO=0;
ADD-CGWB:LTU=3,SLOT=85,SMODE=NORMAL,IPADR=192.168.2.97,NETMASK=255.255.255.0;
RESTART-BSSU:ADDRTYPE=PEN,LTU=3,SLOT=85;
ADD-SBCSU:STNO=2160,OPT=OPTI,CONN=IP2,PEN=1-3-85-0,DVCFIG=OPTIIP,...;
ADD-WABE:CD=*95,DAR=MHFALGON,CHECK=N;

ADD-WABE:CD=*96,DAR=MHFALGOF,CHECK=N;
ADD-PERSI:TYPE=STN,STNO=2160,NAME=“OPTI IP 10*“,PIN1=“0612“,PININDIV=YES;

CHANGE-PERSI:TYPE=COPIN,COPIN=1,COTYPE=MOBILE,.....;
CHANGE-SDAT:STNO=2160,TYPE=ATTRIBUT,AATTR=MHFAHOME;

CHANGE-SDAT:STNO=2160,TYPE=ATTRIBUT,AATTR=MHFATBV;
CHANGE-FEASU:TYPE=A,CM=MOBHFA;
ADD-ZIEL:TYPE=FWD,SRCNO=2160,SI=VCE,DESTNOF=0017544444444,DTYPE=CF­
NR,ITYPE=GEN,CFVAR=SYSTEM;
REGENERATE-RICHT;
