14.7.6.1. Example of Web-GUI for Geo-Separated OpenScape Voice with TLS
Configuration
WBM > Configuration > Voice Gateway > SIP Trunk Profile
Parameter
Use Profiles for Trunks via SIP-Q must be enabled/set to Yes.

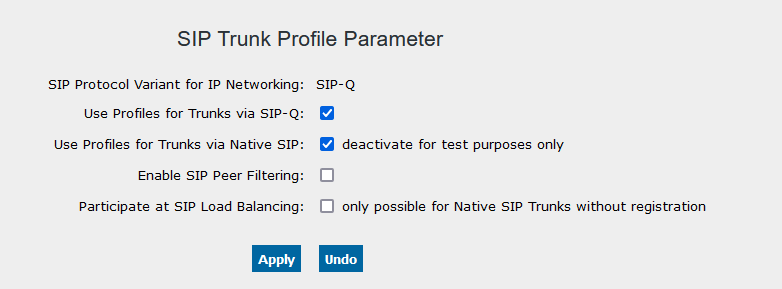

Figure 282. OpenScape 4000: Use profiles for SIP trunks
DNS-SVR records:
nd08a.st.lz.com leads to
sipsm3 on node1
sipsm4 on node2.
WBM > Configuration > Voice Gateway > SIP Trunk Profiles
Use DNS-SRV-host-names for Registrar and Proxy addresses, set Port=0.
The SIP Transport Protocol is not configurable. The Security
section is at the bottom of the pull down section and is used to set
MIKEY or SDES parameters if SPE is to be used.
Figure 283. OpenScape 4000: Properties of SIP trunk profile “SIPQTrkWithRegistration”
WBM > Configuration > Voice Gateway > SIP Trunk Profiles
> SIPQTrkWith Registration
Edit the Account Name (same as in AMO CGWB parameter GWDIRNO)
and apply.
Now you must activate the profile with right click on SIPQTrkWithRegistration.
The folder shows RED if not registered with OpenScape Voice or OpenScape
Branch. It shows GREEN
when registration is successful.
