18.8.4.3. CA Certificate Upload Previous topic Parent topic Child topic Next topic

CA Certificate for the GW certificate verification is possible to upload to the phone via DLS server only.
This option is located in menu: Deployment service > IP Devices > IP Phone Configuration > Signaling & Payload encryption > SPE CA Certificate

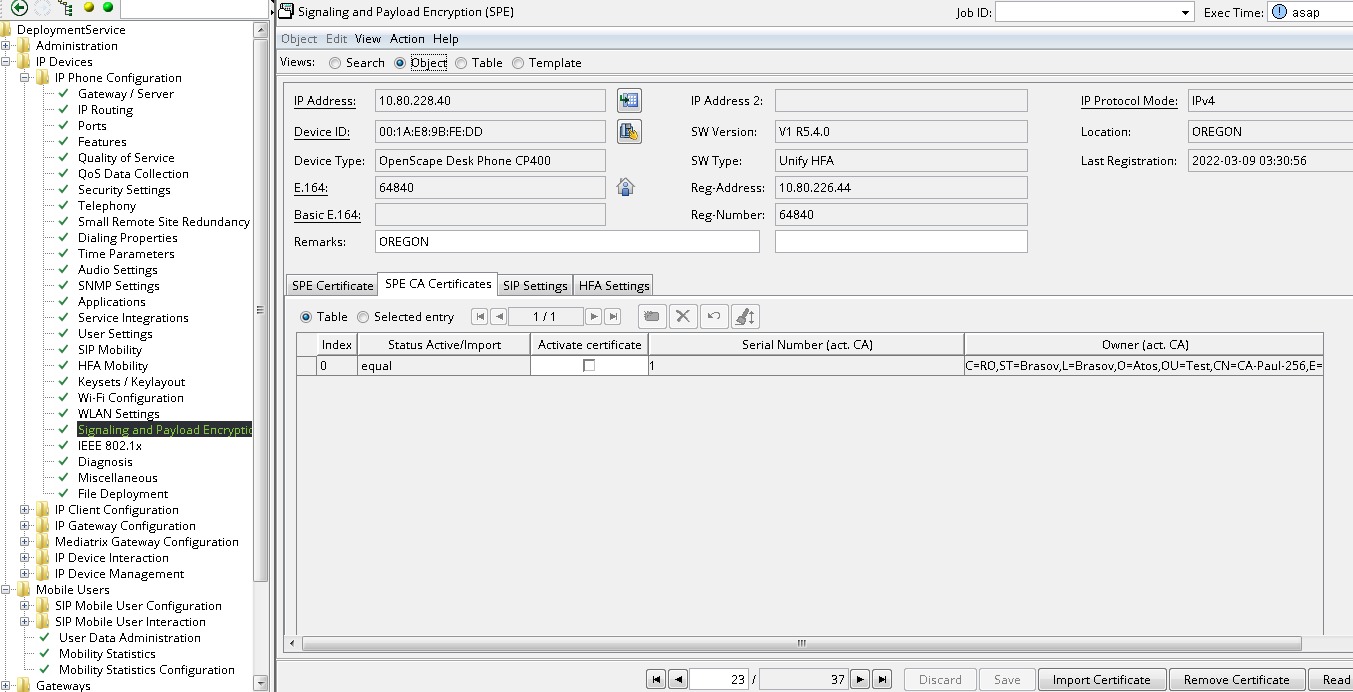

Figure 412. DLS Phone CA Certificate Setting

For new CA certificate import or currently used CA certificate rewriting use Import Certificate button. On following screen press Browse button and select appropriate CA certificate file to import. Check Import certificate to DLS and activate on device check box and press OK.

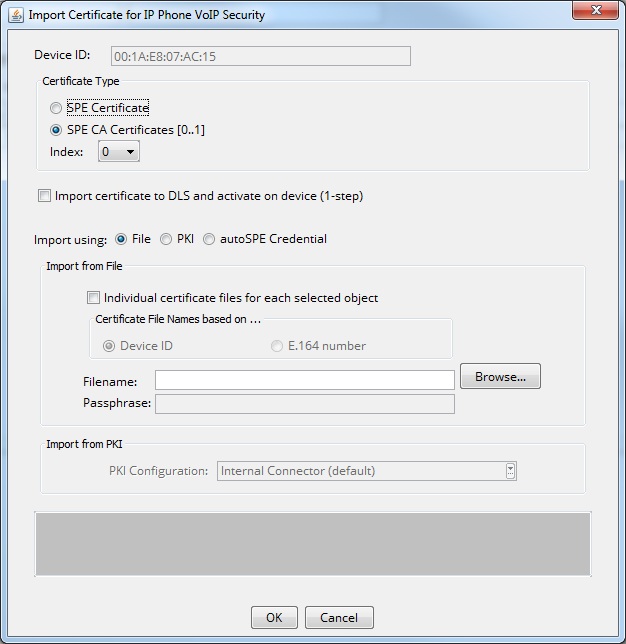

Figure 413. DLS Phone Import CA Certificate Dialog
