One major function on the LAN side is “direct payload” (DMC -> Direct Media Connect) between the call parties. This function can be activated/deactivated for all SIP endpoints.

Given the fact that direct payload transmission between SIP subscribers and other IP devices and gateways is desirable (due to better voice quality), despite the fact that SIP subscribers do not support the H.323-based DMC procedure, HG 3500 includes a “DMC proxy”. This feature is also included in the common gateway board. In other words, as far as DMC signaling is concerned, the gateway functions on behalf of the SIP subscriber and converts the DMC signaling into SIP signaling.

For HFA subscribers the DMC connection is shown in the following diagram.

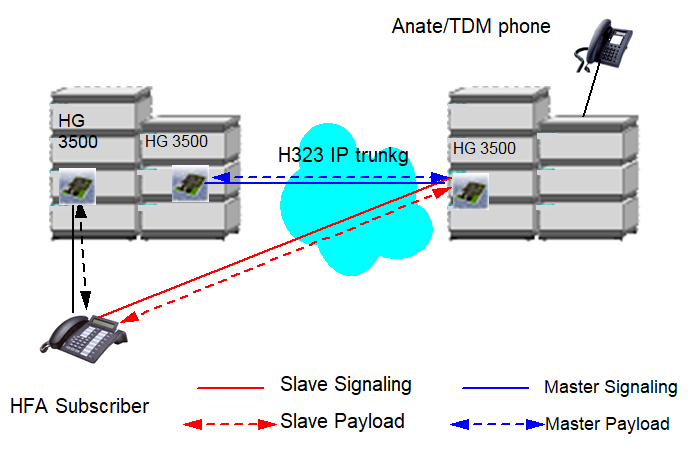

This figure shows the situation for an HFA subscriber calling a TDM subscriber in another node via an H323 IP trunk. The master connection for both signaling and payload is maintained via the HG 3500 (in this case configured as a HFA gateway) and both HG 3500 (IP trunking) gateways. The Slave connections are the DMC connections and these are between IP endpoints, on the one side the HFA subscriber and on the other side the HG 3500 IP trunking board.

The transport addresses (IP addresses/ports) for payload transmission are transmitted as part of the DMC signaling. The DMC proxy does not transmit the actual transport address in this case, but instead transmits the address of the addressed SIP subscriber in order to facilitate a direct RTP stream for the SIP subscriber.

Given the fact that H.323 and SIP both use RTP for voice transmission, connection between

is possible.

To set up a standards-compliant payload channel for the SIP subscriber, the SIP re-invite and, preferably (provided the subscribers support it), the SIP update procedures are used (the latter also requires SIP-PRACK support). These procedures make it possible to switch a payload connection over to another destination. Unlike previous DMC endpoints, the “master” payload connection to OpenScape 4000 is not maintained in this case - i.e. the DMC payload connection replaces the master connection. However, the “master” signaling for the OpenScape 4000 remains established.

This is illustrated in the figure below:

Explanation:

Figure 1 DMC in connection with HFA subscriber: DMC signaling and payload between an HFA telephone and an HG 3500 trunking gateway (see also Chapter 2, “Direct Media Connect (DMC) in Connection with HFA Subscriber”).

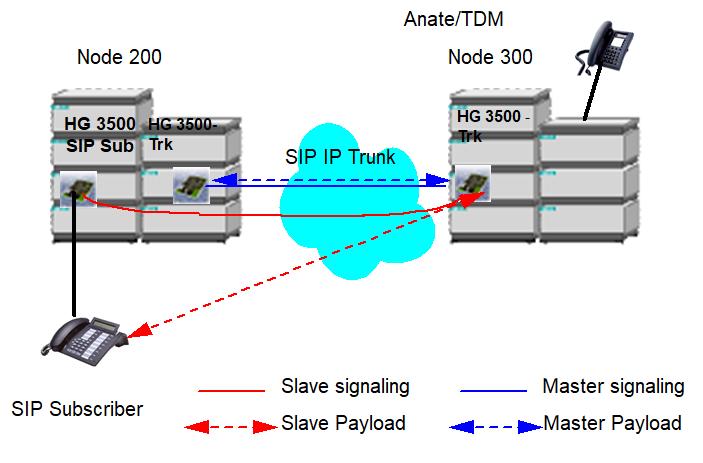

Figure 2 HG 3500 subscriber which functions as a DMC proxy: DMC payload is sent between the SIP phone in node 200 and an HG 3500-Trunking in Node 300. DMC signaling is between the DMC proxy in HG 3500 board and the HG 3500-SIP-Trunking board.

A distinction is made between the DMC proxy and the DMC endpoint. The latter is the endpoint for DMC signaling and the DMC payload channel (RTP). Both gateways (HG 3500, HG 3575) and subscribers function as DMC endpoints. HG 3500-Trk in node 300 and the SIP phone in node 200 are therefore DMC endpoints in the diagram.

Note that the HG 3500 in this example is not part of a payload connection. However, a DSP is reserved for the connection in case activation of a feature terminates the DMC and causes a fallback to the master connection. When the DMC is terminated, a master payload connection must be renegotiated by SIP re-invite, as the connection does not exist for the SIP subscriber.

Given the fact that the SIP subscribers are themselves not DMC-capable, we no longer talk about DMC connections as of HiPath 4000 V3.0, but instead more generally about an end-to-end payload connection, or e2epc for short.

Setup of the master connection, which leads to a master payload connection between the calling SIP endpoint and HG 3500 (requested in order to transmit announcements and tones from the OpenScape 4000 to the SIP endpoint) is not displayed. DMC is initiated with the Connect of the called side.

The procedure described above is even used for a call between two SIP subscribers, i.e. an H.323-based DMC is set up from HG 3500 to HG 3500 (or internally if both subscribers are registered on the same gateway). A direct connection between OpenScape 4000 SIP subscribers without DMC is not possible at present.
