19.3.3.10. TDM Subscriber/Network at another OpenScape 4000 Previous topic Parent topic Child topic Next topic

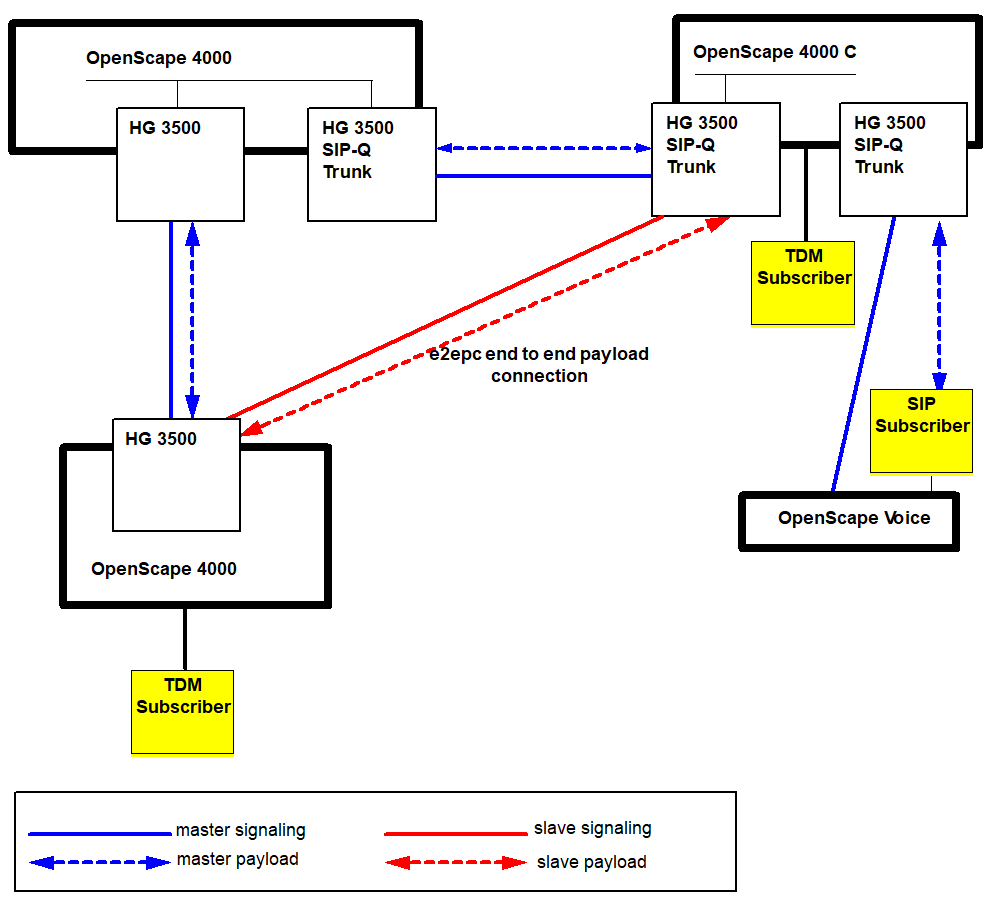

Example 1: Slave signaling and payload to HG 3500.
Example 2: DMC signaling between HG 3500 (SIP subscriber) and HG 3500 (Trunk), e2epc between SIP subscriber and HG 3500.
SIP subscriber A sets up a call to OpenScape 4000 A. OpenScape 4000 A routes the call via a trunking connection to OpenScape 4000 B. OpenScape 4000 B then sets up a connection to TDM subscriber B. OpenScape 4000 B initiates a DMC between HG 3500 in OpenScape 4000 B and the HG 3500 in OpenScape 4000 A. OpenScape 4000 A ensures that an end-to-end payload connection (e2epc) is established between SIP subscriber A and the HG 3500 in OpenScape 4000 B.
