19.3.3.11. TDM Subscriber at HiPath 3000 Previous topic Parent topic Child topic Next topic

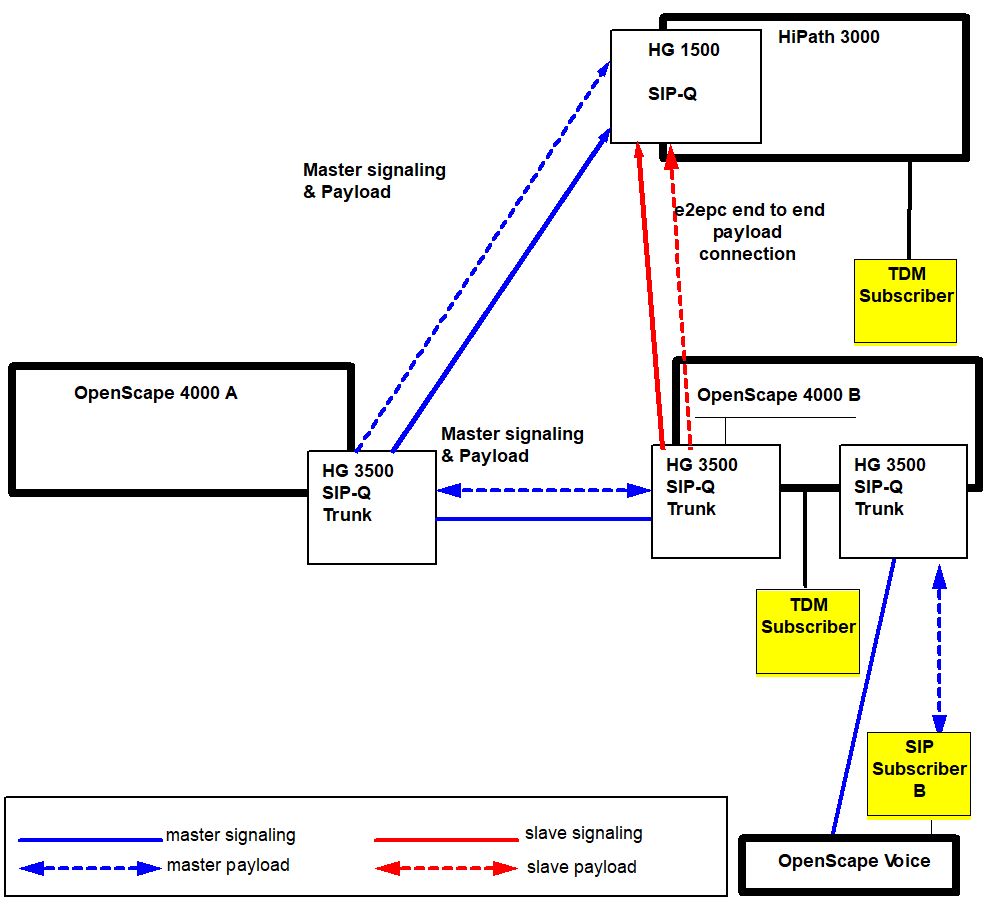

Master signaling and payload between HG 1500 and neighboring HG 3500, slave signaling and payload between HG 1500 and initiating HG 3500.
TDM subscriber at HiPath 3000 sets up a connection to OpenScape 4000 A. OpenScape 4000 A routs the call via a trunking connection to OpenScape 4000 B. OpenScape 4000 B routes the call via another trunking connection to OpenScape Voice. OpenScape Voice then sets up a connection to SIP subscriber B. OpenScape 4000 B sets up a DMC between HG 3500 in OpenScape 4000 B and HG 1500 in HiPath 3000.
